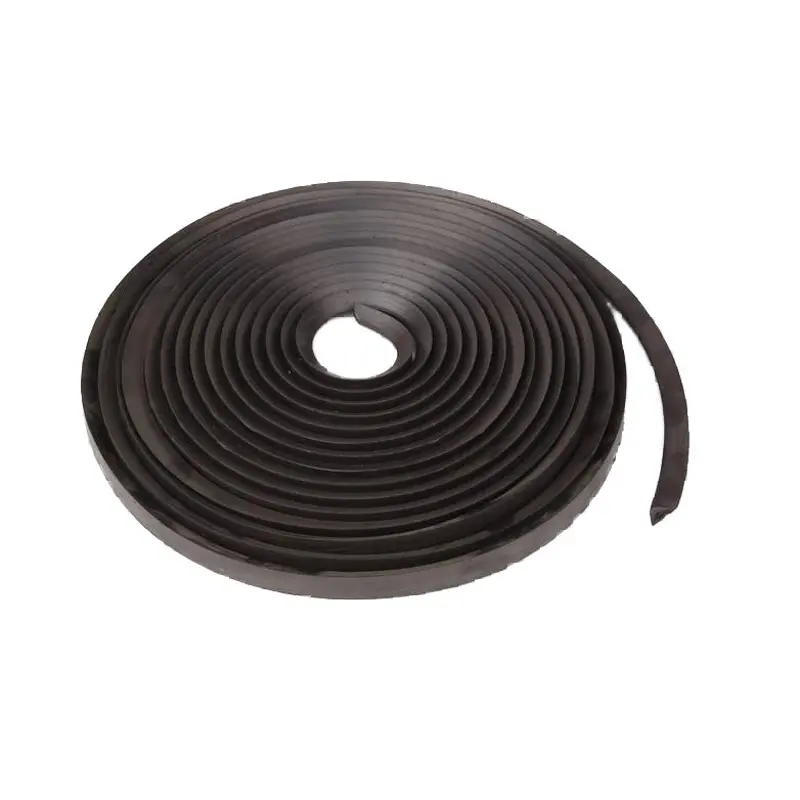

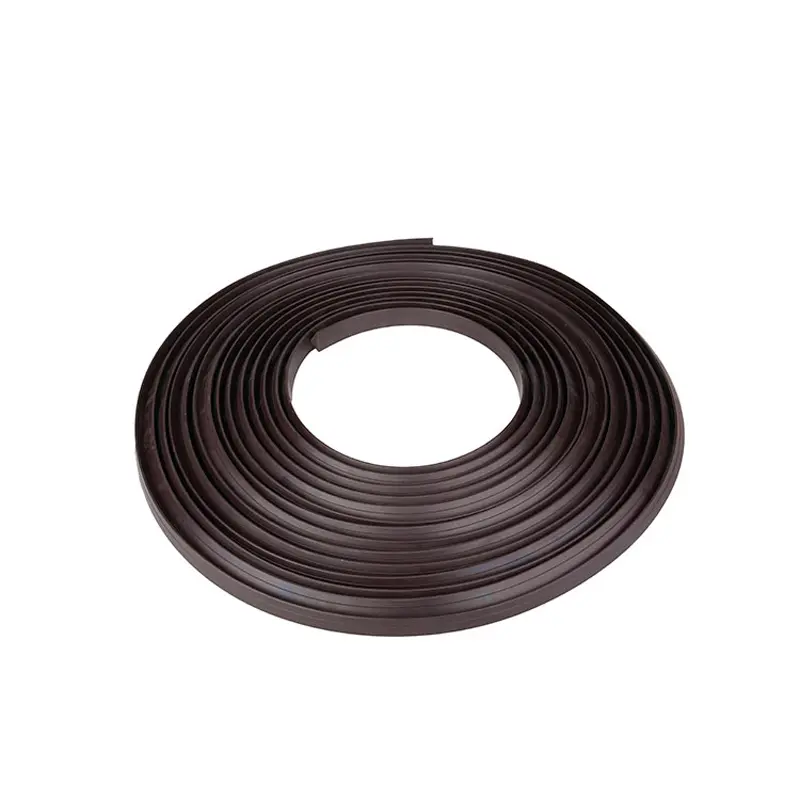

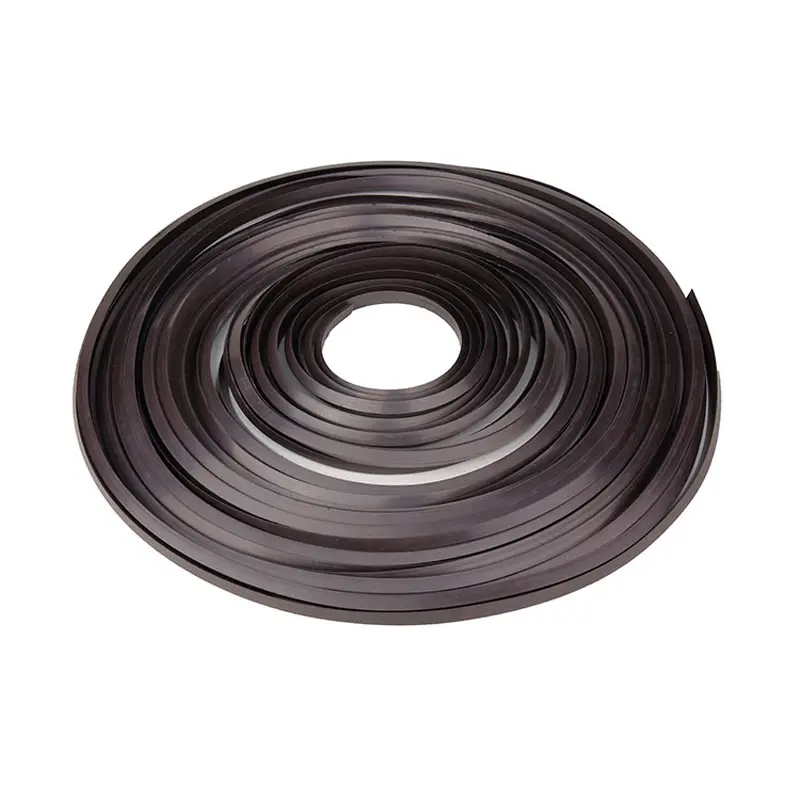

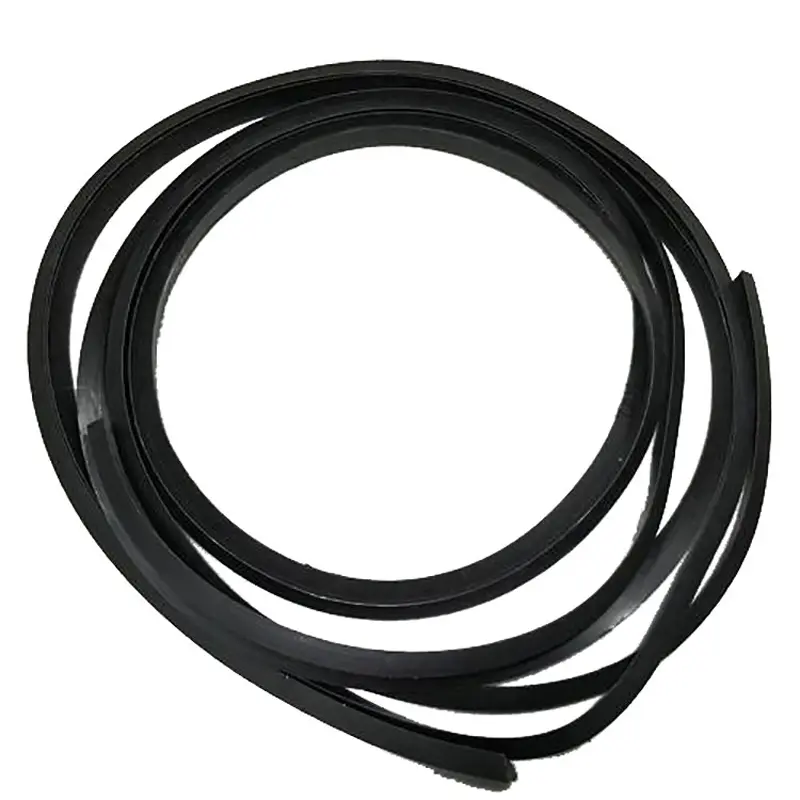

Wholesale Triangular Magnetic Rubber Chamfer Strip Manufacturers, Product
A triangular magnetic rubber chamfer strip is a magnetic rubber strip for the precast concrete industry that is mainly used to create chamfers during the precast concrete process. If the steel mould is not designed for chamfering, the magnetic strip can be used to flexibly and easily form chamfers. In steel mould construction, it can quickly and accurately place perfectly fitting chamfers by simply placing the strip on the mould table and the built-in magnets hold it securely in place without the need for screws, bolts or welding.
Triangular magnetic rubber chamfer strip is a specialized rubber magnetic component designed for the precast concrete industry. It offers a flexible and efficient solution for creating high-quality chamfers in concrete structures, significantly improving the finish and durability of precast elements.
Applications & Use
It is mainly used to create chamfers in the precast concrete process. If the steel molds are not designed with chamfers, chamfers can be formed flexibly and easily using this magnetic strip. In steel mold construction, it can quickly and accurately place perfectly fitting chamfers by simply placing the magnetic strip on the mold table and the built-in magnets hold it securely in place without the need for screws, bolts, or welding.

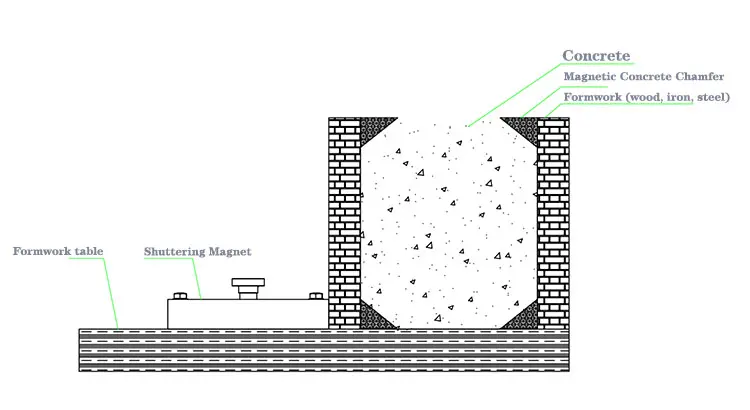

Magnetic Concrete Chamfer Working Principle Diagram
Key Features
·

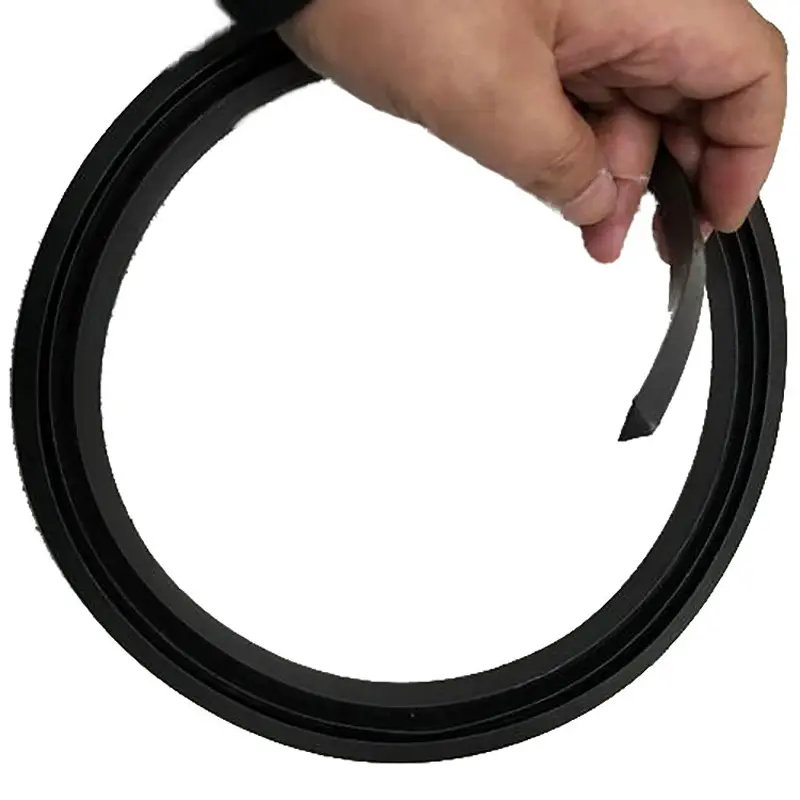

Lightweight & Bendable: Easy to handle and shape for practical production requirements.
·
Strong Magnetic Force: Utilizes a reliable magnetic attraction with a simplified manufacturing process for cost-effectiveness.
·
Multiple Sizes: Available in various dimensions including 5X5MM, 8X8MM, 10X10MM, 15X15MM, and more to suit specific project needs.

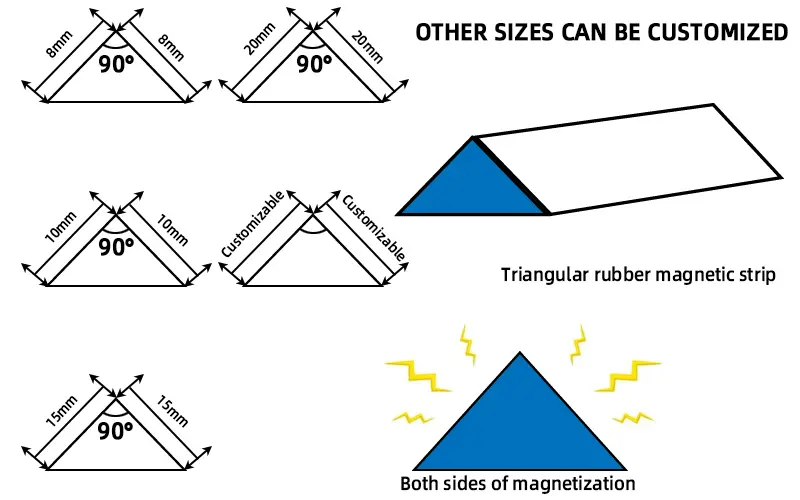

Standard Triangular Rubber Magnetic Strips
Core Advantages
✓
Precision machining process with reliable quality standards.
Durability: Resilient rubber material resists wear, tear, and impacts in harsh industrial environments.

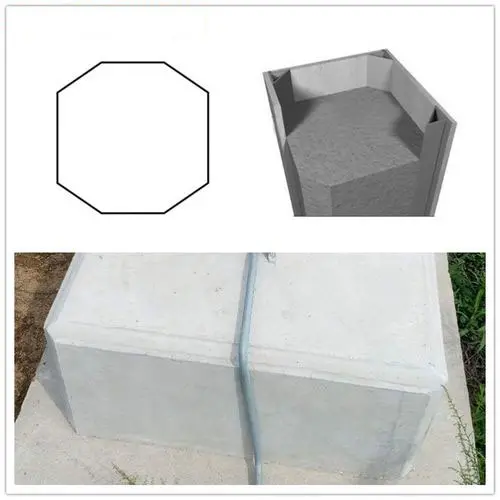

Magnetic Concrete Chamfer Strip Application Effect
Flexibility: The high-grade rubber allows for easy bending, enabling precise chamfering even in complex mold configurations.
Magnetic Function: Embedded magnets provide a secure hold, eliminating the need for adhesives or clamps. This allows for rapid installation and easy adjustments, maximizing project efficiency.
Mold Protection: Beyond creating chamfers, these strips protect the steel mold. By sealing the corners, they prevent concrete leakage that can accumulate and damage the mold over time. After the pouring process is complete, the strip and the formed chamfer can be removed cleanly.
Summary: The Triangular magnetic rubber chamfer strip is an efficient, environmentally friendly, and flexible tool. It offers significant advantages in lightness, durability, ease of installation, and mold protection for the precast concrete industry.
Frequently Asked Questions
Q1: What is the main purpose of a magnetic rubber chamfer strip?It is primarily used to create beveled edges (chamfers) on precast concrete products using steel molds without the need for permanent modifications like welding or bolting.
Q2: Can these strips be reused?Yes, they are made of durable rubber and integrated magnets, making them highly reusable and an eco-friendly alternative to single-use polystyrene molds.
Q3: How do the strips stay in place during concrete pouring?The strips feature powerful embedded magnets that provide a secure, firm grip on steel mold tables, ensuring they stay perfectly aligned during the vibration and pouring process.
Q4: Are different sizes available for different project requirements?Absolutely. Common sizes include 5x5mm, 8x8mm, 10x10mm, and 15x15mm, but they can be produced in various dimensions to meet specific engineering needs.
Q5: Does the rubber material withstand harsh construction site conditions?Yes, the rubber is specifically formulated to be impact-resistant, wear-resistant, and flexible enough to handle the repetitive stresses of precast concrete manufacturing.
Q6: How does this product help in maintaining the molds?By sealing the corners of the mold, the strip prevents spilled concrete from filling hard-to-clean gaps, which extends the service life and maintains the precision of the steel molds.
