High-Quality Magnetic Urethane Chamfer Product, Products

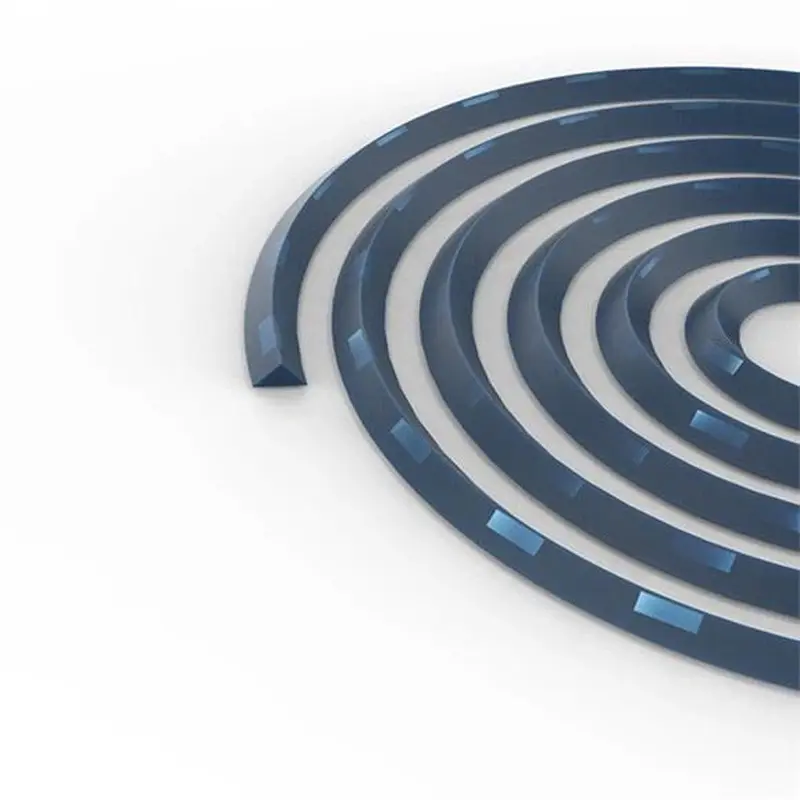

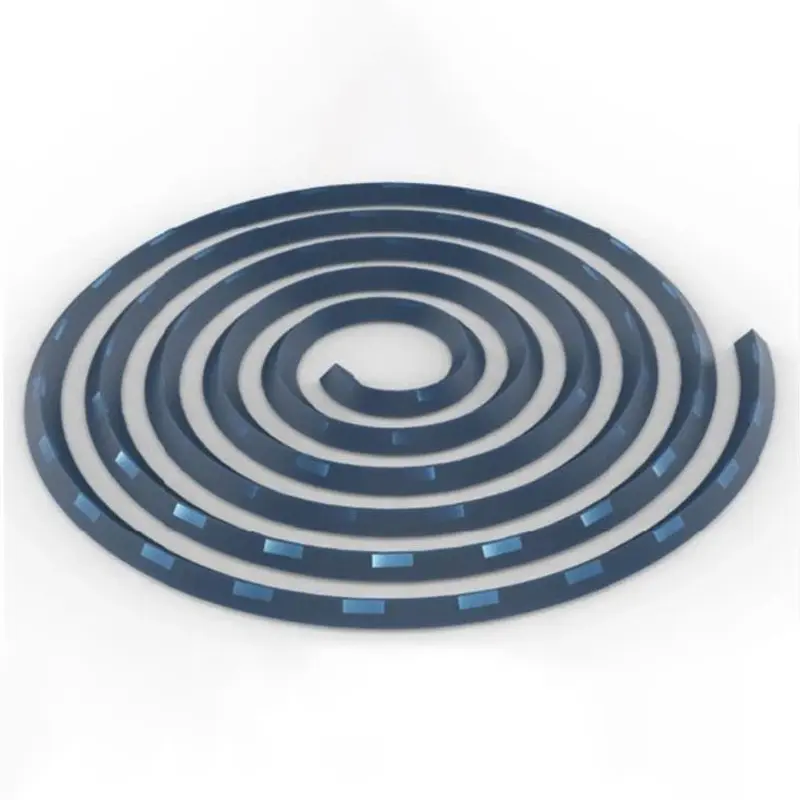

Magnetic Urethane Chamfers combine high-performance urethane elastomers with NdFeB magnets. They offer durability, strong magnetic adhesion, and different Shore hardness grades. With integrated design and customizable dimensions, they're used in architecture, infrastructure, etc. Advantages include rapid installation, precision, cost efficiency, and sustainability. Follow usage and maintenance guidelines, adopted in various regions.

Send Inquiry

Product Description

Composition & Key Properties

Magnetic Urethane Chamfers are engineered using high-performance urethane elastomers combined with NdFeB (neodymium) magnets. This design merges advanced material properties with magnetic adhesion capabilities:

Durability

Urethane ensures high wear resistance (>200% longer lifespan than rubber) and impact absorption, ideal for construction machinery or high-traffic flooring.

Magnetic Performance

Embedded NdFeB magnets provide strong adhesion (15–25 N/cm²) to steel, galvanized metal, or iron-based formwork.

Shore Hardness Options

Two primary grades are standardized:
• 60 Shore A: Offers flexibility for curved surfaces or delicate chamfering.
• 90 Shore A: High rigidity for heavy industrial use.

Temperature Stability

Operates from -40°C to 120°C without losing elasticity or magnetic strength (if coated magnets are used).

Chemical Resistance

Resists oils, solvents, and UV degradation, suitable for outdoor or chemical-exposed environments.

Construction Features

Integrated Design: Magnets are fully encapsulated within urethane to prevent corrosion and mechanical damage.
Chamfer Dimensions:
- Width: Customizable 50–200 mm (5–20 cm), accommodating edge profiles from fine bevels to broad slopes.
- Length: Standard 1–6 m with modular connectors for seamless curves (e.g., circular columns).
Surface Treatments: Textured or smooth urethane surfaces minimize concrete sticking during demolding.

Applications

Modern Architecture:
- Edge protection for polished concrete floors, terrazzo, or exposed aggregate.
- Rounded edge formation in precast panels (e.g., staircases, facade elements).
Industrial Infrastructure:
- Heavy-duty chamfering for steel-reinforced concrete in bridges, tunnels, or ports.
- Used with tilt-up wall systems to prevent corner spalling.
Specialized Use Cases:
- Magnetic adhesion simplifies alignment in 3D-printed concrete mold setups.
- Reusable in modular construction projects (e.g., prefabricated buildings).

Functional Advantages

Rapid Installation

Eliminates clamps/screws—3x faster than traditional methods.

Repeatable Precision

≤1 mm edge deviation over 200+ cycles.

Cost Efficiency

Reduces labor and material waste by 40% compared to single-use PVC.

Sustainability

Recyclable urethane and reusable design align with LEED/GREEN certification standards.

Performance Metrics

Parameter	60 Shore A Grade	90 Shore A Grade
Tensile Strength	12–15 MPa	25–30 MPa
Compression Set	≤10% (@70°C, 22h)	≤5% (@100°C, 24h)
Abrasion Loss	40 mm³ (DIN 53516)	20 mm³
Magnetic Adhesion	15–18 N/cm²	20–25 N/cm²

Optimized Usage Guidelines

Substrate Prep: Ensure metal surfaces are clean, dry, and free of rust or debris.
Chamfer Size Selection:
- 50–100 mm: Thin edges (e.g., wall joints, decorative tiles).
- 100–200 mm: Structural edges (e.g., warehouse floors, vehicle ramps).
Hardness Pairing:
- 60 Shore A: Flexible for lifted edges or temporary formwork.
- 90 Shore A: Rigid for vibrating screeds or high-pressure pours.
Post-Use Maintenance: Clean with pH-neutral detergents; avoid abrasive tools. Store flat to prevent warping.

Industry Adoption Insights

Europe/Australia: Combined with self-consolidating concrete (SCC) for architectural finishes.
North America: Preferred in tilt-up concrete warehouses for rapid cycle times.
Asia: Deployed in prefab housing projects to minimize on-site waste.

Part Code Specifications

Durometer	Application	Part Code	Height	Length
60 Shore	For Flexible Use	MUC-12-8-60	1/2''	8'
		MUC-58-8-60	5/8''	8'
		MUC-34-8-60	3/4''	8'
		MUC-1-8-60	1''	8'
		MUC-12-10-60	1/2''	10'
		MUC-58-10-60	5/8''	10'
		MUC-34-10-60	3/4''	10'
		MUC-1-10-60	1''	10'
		15x15	15mm	10'

Magnetic Urethane Chamfer

Advanced Production Facility

Frequently Asked Questions (FAQ)

Q1:What materials are used to construct magnetic urethane chamfers?

They are manufactured by combining high-performance urethane elastomers with embedded NdFeB (neodymium) magnets, which provides a balance of extreme physical durability and strong adhesion to steel formwork.

Q2:How do 60 Shore A and 90 Shore A grades differ in application?

60 Shore A is flexible, making it ideal for curved surfaces and decorative aggregate finishes. 90 Shore A is highly rigid, designed to withstand high-pressure concrete pours and heavy-duty industrial environments.

Q3:Can these chamfers withstand extreme weather conditions?

Yes. These urethane chamfers are chemically stable and function effectively in temperatures ranging from -40°C to 120°C without losing their elastic properties or magnetic force.

Q4:What makes magnetic chamfers more cost-effective than traditional PVC?

Unlike single-use PVC strips, magnetic urethane chamfers are reusable for over 200 cycles, reducing material waste and lowering labor costs by up to 40% due to their tool-free installation.

Q5:What is the recommended cleaning and maintenance routine?

After demolding, clean the chamfers with pH-neutral detergents and avoid abrasive scrubbers. To prevent warping and maintain optimal flatness, store them flat in a dry environment.
