PVC Concrete Chamfer is made from polyvinyl chloride (PVC), which is characterized by its light weight, low cost, and ease of handling and installation.PVC Concrete Chamfer is commonly used in lightweight structures or precast concrete temporary buildings. It is suitable for cost-sensitive projects.PVC Concrete Chamfer is a tool for concrete edging, specifically, it is a flexible PVC strip used to form rounded or beveled corners in columns, walls or other concrete elements.
PVC Concrete Chamfer is made from polyvinyl chloride (PVC), which is characterized by its light weight, low cost, and ease of handling and installation. PVC Concrete Chamfer is commonly used in various concrete projects, including both permanent and precast concrete structures, especially in cost - sensitive projects. It is a tool for concrete edging, specifically, it is a flexible PVC strip used to form rounded or beveled corners in columns, walls or other concrete elements.
Technical Parameters of PVC Concrete Chamfer
Size Specifications
Width: 10 mm to 50 mm (15 mm for standard columns/walls; 30 mm for industrial structures).
Thickness: 2 mm to 6 mm (5-6 mm for high durability, e.g., bridge piers).
Length: 2 meters, 3 meters, or customized for continuous application.
Physical Properties
Density: ~1.3 - 1.4 g/cm³ (Balance of light weight and stability).
Tensile Strength: 40 - 60 MPa (Resists tearing during installation on complex forms).
Chemical Properties
Weather Resistance: High UV resistance; maintains performance for 10-15 years outdoors.
Chemical Resistance: Excellent resistance to alkalis and acids in concrete admixtures.
Key Features and Functions
1
Material Properties: Made of high-quality PVC; highly weather resistant, won't rust or corrode.
2
Ease of Use: Pre-installed on formwork; no complex tools or special adhesives needed.
3
Reusability: PVC strips are reusable, offering significant cost-effectiveness.
4
Prevents Slurry Leakage: Keeps edges neat and clean by preventing leakage during placement.
5
Radius Applications: Ideal for creating smooth curves on rounded columns.

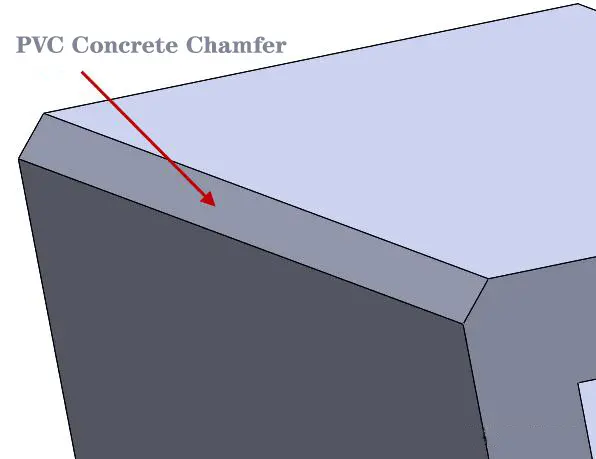

PVC Concrete Chamfer for concrete edge treatment

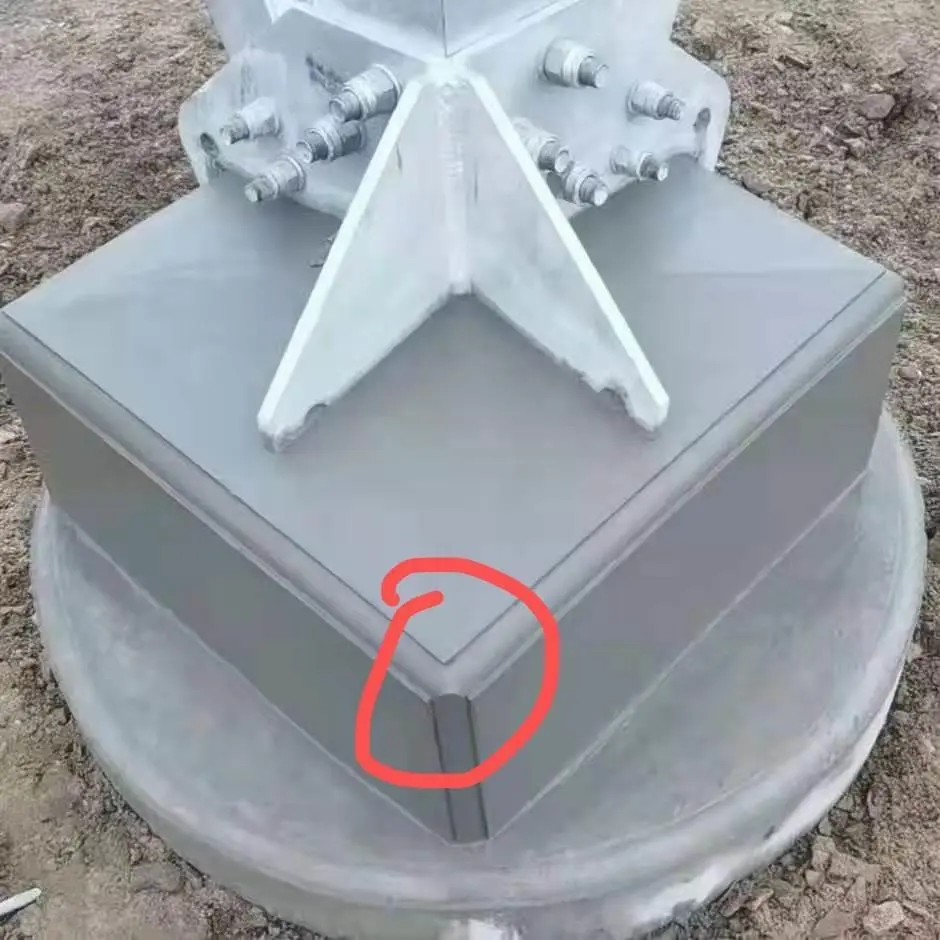

PVC Chamfer Strips can form smooth curves

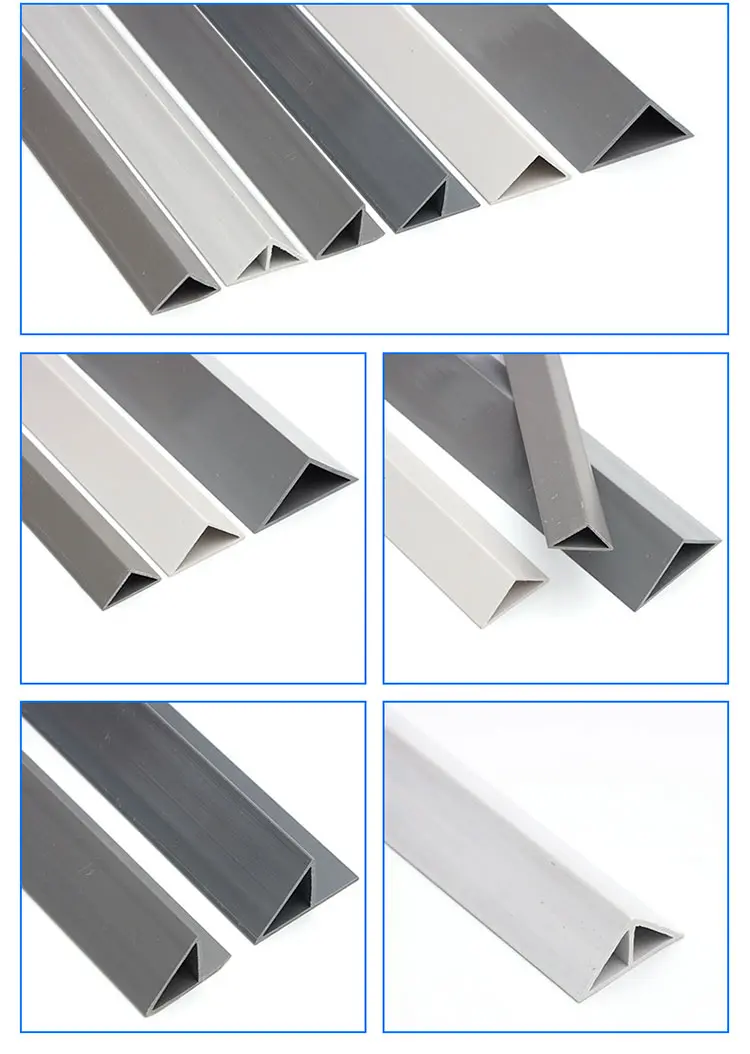

PVC triangle chamfered strip
6
Improved Safety & Aesthetics: Reduces hazards of sharp edges and enhances structural beauty.
7
Ease of Release: Protects concrete corners from damage during formwork removal.
8
Enhanced Durability: Increases structural longevity by reducing localized wear and tear.
9
Flexible Shaping: Easily adapts to complex and non-linear concrete shapes.
10
Time & Labor Saving: Eliminates the need for manual grinding or cutting after curing.
Installation Note: PVC Concrete Chamfer Strips are installed before concrete placement. Once the concrete has cured and the formwork is removed, the chamfered edges are revealed. The method depends on formwork type and structural complexity.
Frequently Asked Questions
What are the main advantages of using PVC over metal chamfers?
PVC is lightweight, cost-effective, and highly resistant to weather and corrosion, meaning it won't rust like metal alternatives.
Can these chamfer strips be used for curved columns?
Yes, PVC chamfer strips are flexible and ideal for radius applications, allowing for smooth, rounded corners.
Is the PVC material resistant to construction chemicals?
Absolutely. It shows excellent resistance to alkalis and acids commonly found in concrete admixtures.
How long can PVC chamfer strips last in outdoor conditions?
Due to high UV resistance, they can maintain their appearance and performance for up to 10-15 years under normal climate conditions.
Does using these strips save money on labor?
Yes, they save significant time and labor compared to traditional methods like hand grinding or cutting concrete corners after curing.
Are PVC chamfer strips reusable?
Yes, they are designed to be reusable, which provides additional cost-effectiveness for multiple concrete projects.
