Trapezoidal Magnetic Chamfering Strip is applied where vertical form walls meet form bases to quickly and cleanly form drip moldings, or dummy joints. Our magnetic strips are made of high quality steel (some encased in rubber) with built-in magnets.
Trapezoidal Magnetic Chamfering Strip
It uses the magnetic fixing principle to hold the chamfer strip firmly in place on the mold, thus creating the desired drip channel during the concrete pouring process. This chamfer strip can be placed at the edge position of the mold to create a variety of precast drip channels or dummy joints.
Trapezoidal Magnetic Chamfering Strip Properties
| Place of Origin |
China |
| Model Number |
QCM-DT002T |
| Material |
Magnets + Steel Strip |
| Dimensions |
Trapezoid 12*16*10 |
| Holding Force |
With Magnet |
| N.W. |
1.1KG/M |
| Surface Treatment |
Rust Prevention |
| Service Life |
1-3 Years |
| Minimum Order Quantity |
100 Meters |

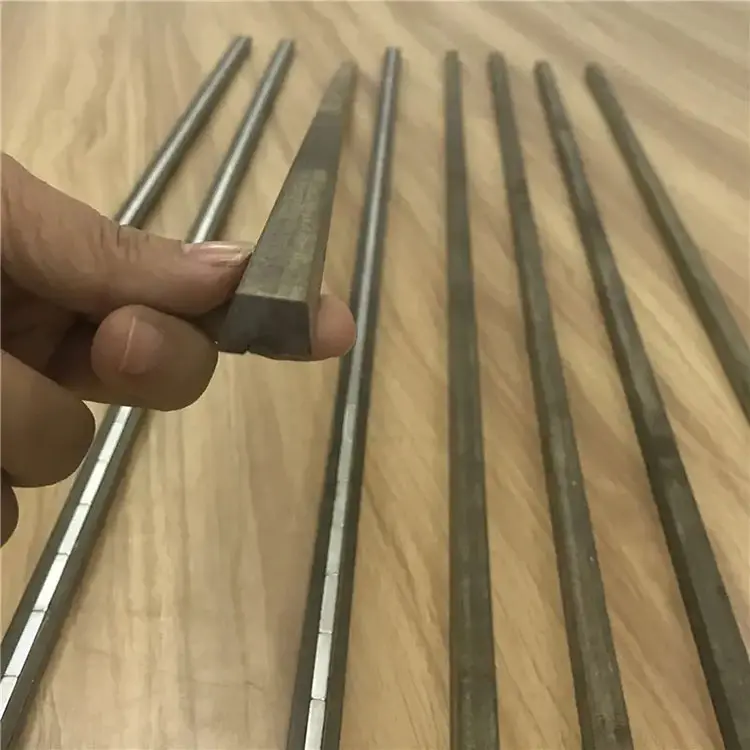

Cross section of a Trapezoidal Magnetic Chamfering Strip
Key Features
- High strength, not easy to slip and deform.
- Embedded with strong magnets, such as NdFeB, which can be accurately positioned at any position of the bottom or side mold.
- Reusable, cost-saving and extremely convenient for actual production use.
- Provides a quick and clean way to form drip grooves, dummy joints, notches, and reveals in concrete wall panels.
- Prevents concrete from spilling through gaps between precast concrete pouring tables and side forms.
- It avoids the need for screwing or welding on the table slab or formwork.
- Improves production time and labor costs for precast concrete elements.

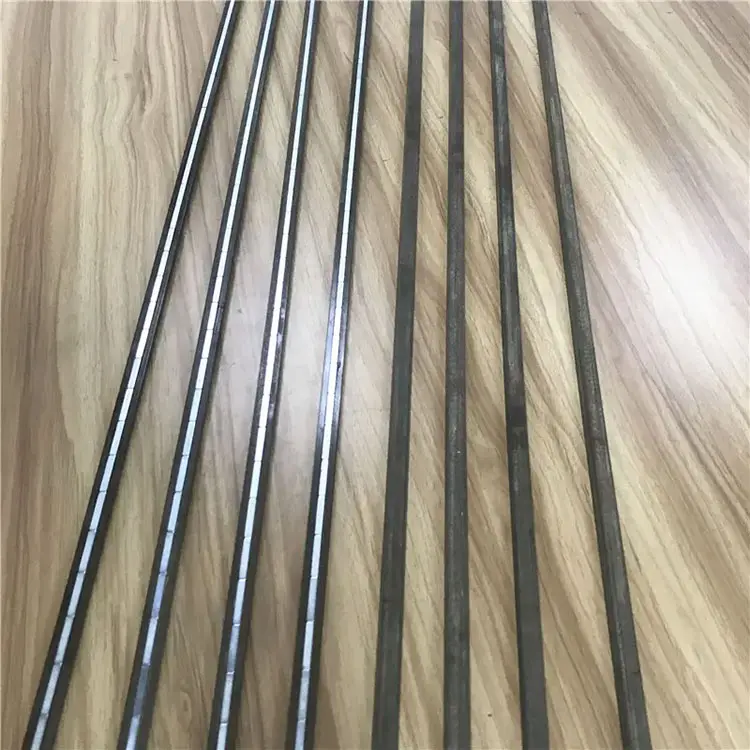

Trapezoidal Magnetic Chamfering Strip 12×16×10
Core Advantages
- Enhanced Efficiency: Significantly improved production efficiency of precast concrete parts.
- Aesthetic Quality: Improving the quality and aesthetics of the finished concrete product.
- Durability: Long service life of at least 3 years as the strips are reusable, ensuring a high ROI.
- Powerful Adsorption: Magnets provide maximum stability, with single-sided steel strips providing over 100kg of strength per meter.
- Versatile Magnetization: Available in double-sided rubber magnets or single/double-sided steel versions (50% to 100% magnetic).
- Easy Handling: Quick to position, remove, and clean, shortening production schedules accurately.
- Surface Protection: No screws, bolts, or welds required, maintaining the mold surface finish and increasing service life.
In summary, the Trapezoidal Magnetic Chamfering Strip is a useful tool for improving efficiency and product quality in precast concrete production. Its magnetic fastening, customizability, durability, and ease of handling make it an advantageous choice for modern construction needs.
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of a Trapezoidal Magnetic Chamfering Strip?
A: It is primarily used to create drip moldings, dummy joints, and beveled edges at the intersection of vertical form walls and form bases in precast concrete production.
Q2: Do I need to weld or screw these strips to my steel table?
A: No, the built-in powerful magnets hold the strip firmly in place, eliminating the need for welding or screwing and protecting your mold surface.
Q3: How long do these magnetic chamfering strips last?
A: With proper care and cleaning, these strips have a service life of approximately 1 to 3 years and are designed to be reused multiple times.
Q4: What is the holding force of the magnetic strip?
A: The magnetic force is very strong; for instance, single-sided magnetic steel chamfering strips can provide more than 100 kilograms of strength per meter.
Q5: Are there different material options available?
A: Yes, we offer strips made of high-quality steel with embedded magnets, as well as versions encased in rubber depending on your specific application needs.
Q6: How do these strips improve production efficiency?
A: They allow for rapid positioning, easy removal, and simple cleaning, which significantly shortens the production schedule and reduces labor costs.
