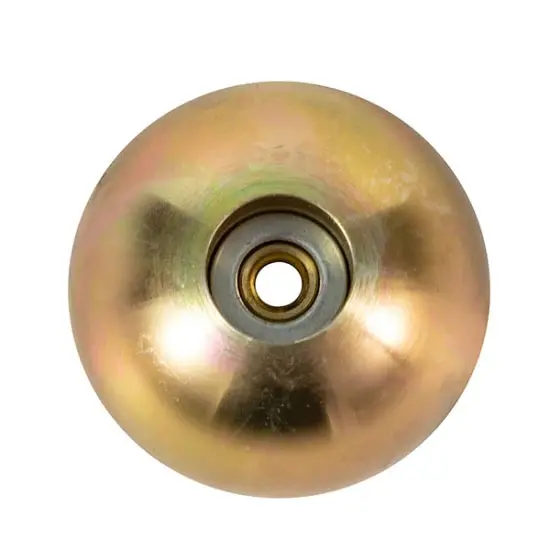

OEM 1.3T Spherical Head Magnetic Recess Former Exporter, Companies

Load：1.3T

Diameter：60mm

screw thread：M8

The 1.3T Spherical Head Magnetic Recess Former is a specialized construction tool for precast concrete. It has a 1.3 - ton lifting capacity, uses neodymium magnets, and is made of durable Q235 steel. It simplifies anchor installation, offers precision, and boosts cost - efficiency, being compatible with 1.3T spherical head anchors.

Send Inquiry

Product Description

The 1.3T Spherical Head Magnetic Recess Former is a specialized tool used in the construction industry, particularly for precast concrete applications. This device serves as a magnetic anchor former designed to securely hold spherical head anchors in place during the manufacturing of precast concrete elements.

Specification

Load	1.3T
Adhesive Force	50kg
Diameter	60mm
Screw Thread	M8
Anchor Diameter	20mm

Accessories

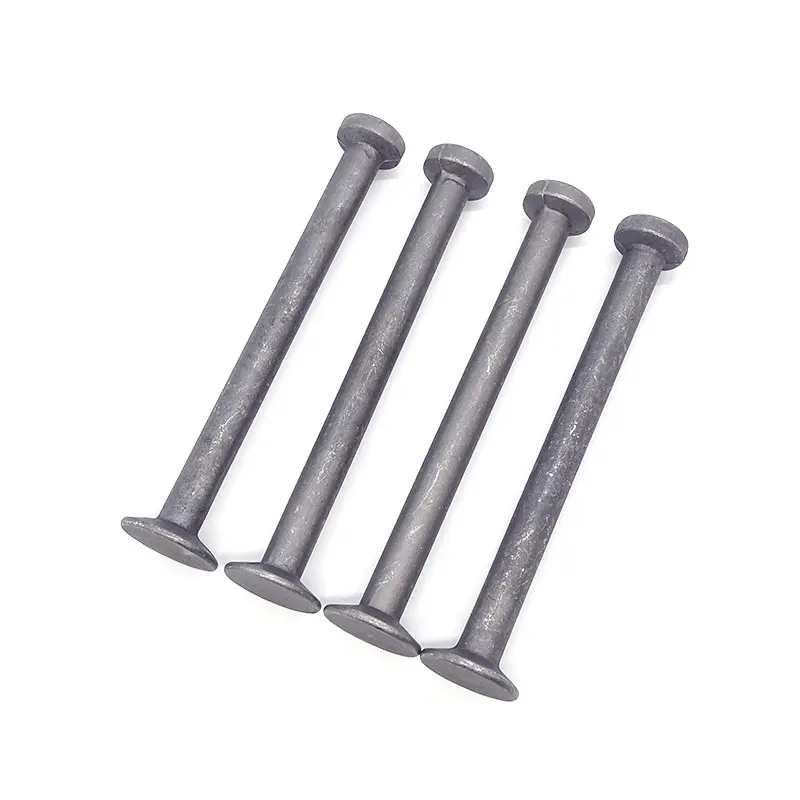

Spherical head anchor 1.3 TON 120MM

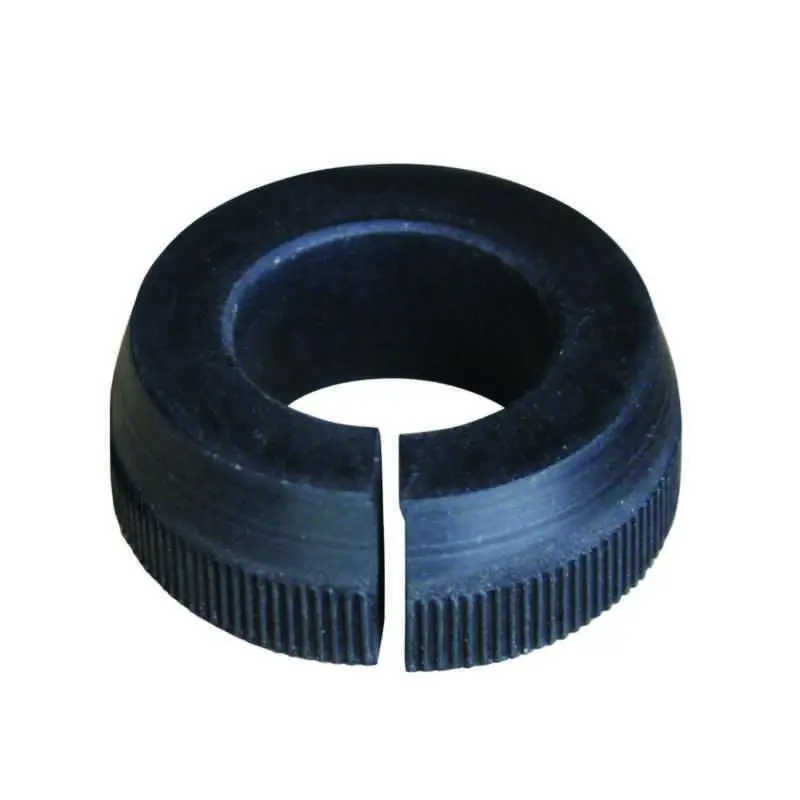

Rubber Sleeve 1.3Ton

Key Features

Lifting Capacity The "1.3T" designation indicates that this magnetic former is capable of supporting a lifting load of up to 1.3 tons under normal operating conditions in precast concrete manufacturing processes.

Advanced Design The spherical head design allows for efficient load distribution and stability. Powerful permanent neodymium magnets ensure anchors are firmly fixed within the concrete mold, optimizing force transfer and enhancing safety.

Broad Applications Primarily used for fixing spherical head lifting anchors in precast concrete panels. It eliminates traditional fastening methods like screws or bolts, simplifying assembly and improving efficiency.

High-Quality Material Made from Q235 steel, known for excellent mechanical properties, high strength, and toughness. It provides durability and wear resistance in harsh construction environments.

Wide Compatibility Compatible with 1.3T spherical head anchors for slabs, beams, columns, and panels. Works with rubber grommets to provide additional grip and shock absorption during concrete curing.

Advantages

Ease of Use Quick placement and removal of anchors reduce labor time and streamline workflow on construction sites.

Precision Positioning Ensures accurate anchor placement within molds, crucial for structural integrity and quality of precast components.

Cost Efficiency Reduces labor costs and increases productivity by speeding up the anchoring process in precast production.

Frequently Asked Questions (FAQ)

What is the maximum load capacity of this magnetic recess former?

The device is designed for a 1.3-ton (1.3T) lifting capacity under standard operating conditions.

What materials are used in its construction?

It is manufactured using high-quality Q235 carbon structural steel and powerful permanent neodymium magnets for maximum durability.

Is it compatible with other types of anchors?

This specific model is optimized for 1.3T spherical head anchors and is widely used in precast slabs, beams, and columns.

Do I need additional accessories to use this tool?

Yes, it is recommended to use it with rubber grommets/sleeves to enhance anchor stability and grip while the concrete sets.

How does the magnetic feature benefit the production process?

The magnetic feature allows for rapid attachment and detachment without the need for screws or bolts, significantly reducing labor time and increasing precision.

What are the dimensions of the 1.3T former?

The former has a diameter of 60mm, an M8 screw thread, and is designed to fit anchors with a 20mm diameter.
