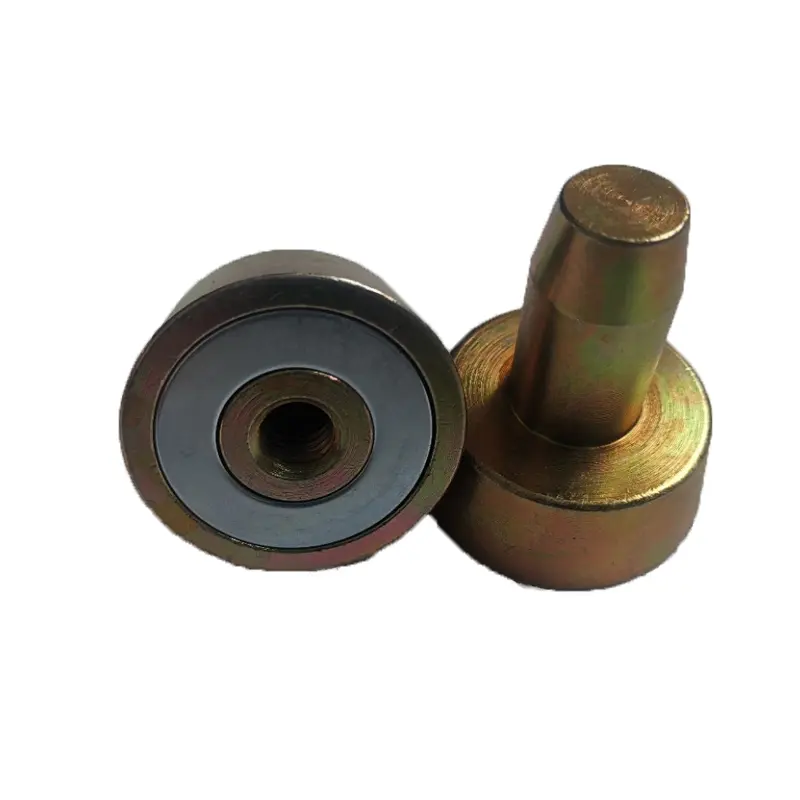

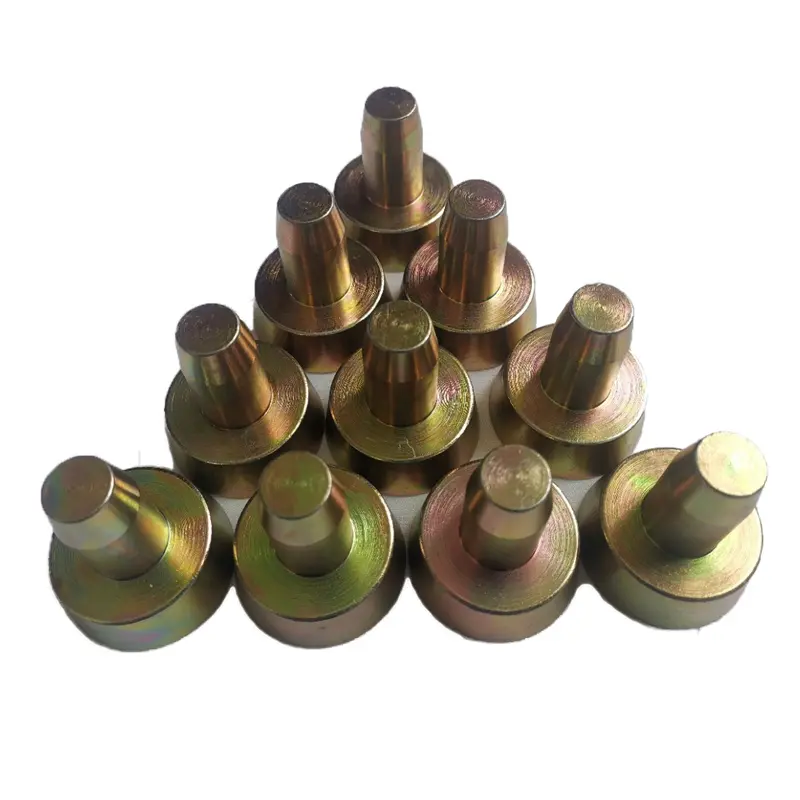

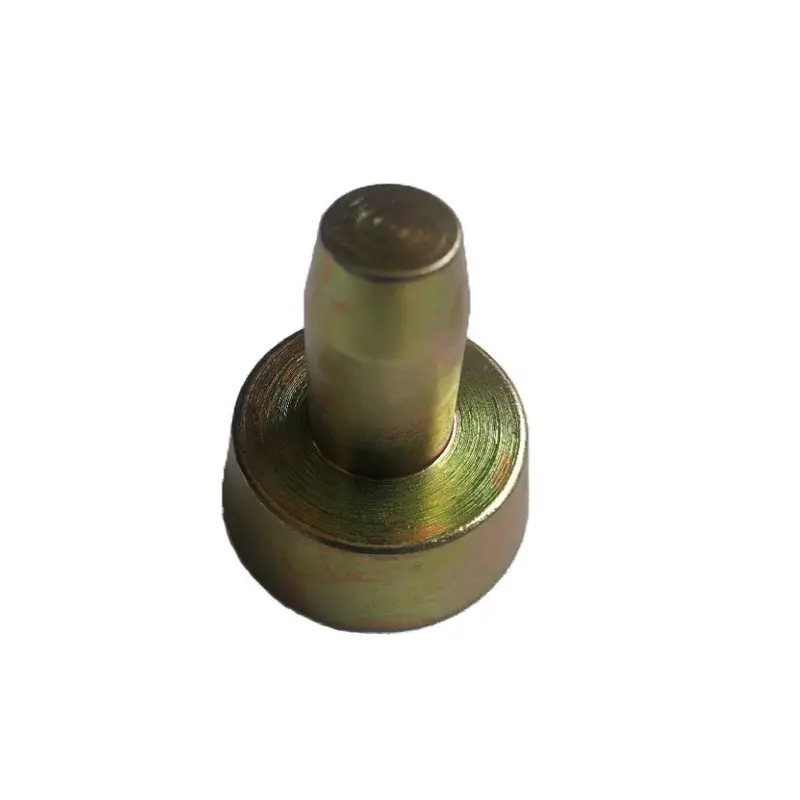

Pvc Pipes Insert Magnets are designed and developed for the embedding of various precast concrete components, such as wire pipes or water pipes. These insert magnets consist of neodymium magnets, steel housings, and threaded bars. With the help of magnet suction, the pvc pipe can be firmly fixed in place and will not move after pouring concrete. With the help of Insert Magnet, precast concrete production can be made more in line with the design plan and improve the quality of the product.
NdFeB Embeded Socket Fixing Magnet Dimension
Part No.: D64
Threaded OD (mm): 64
Height (mm): 12
Pull Force: 100 kgf
Insert Magnet Specifications
|
| D50*8 |
50 |
8 |
60 |
M10/M12/M14/M16 |
| D54*10 |
54 |
10 |
65 |
M18/M20/M24 |
| D64*12 |
64 |
12 |
100 |
M16 |
Application & Equipment Gallery
External Thread Insert Magnets Application
Precast Concrete Magnets Production Equipment
Shutting Magnet Box Pull Force Test Equipment
Package of Fixing Magnets Insert Magnet
- Products neatly stacked for maximum safety
- Built-in protective foam to prevent product collision
- Outer packaging: Heavy-duty carton + waterproof bag
Frequently Asked Questions (FAQ)
1. What is the primary purpose of Pvc Pipes Insert Magnets?
They are specifically designed to fix precast concrete components like wire or water pipes firmly in place during the concrete pouring process, preventing movement and ensuring design accuracy.
2. What materials are these insert magnets made of?
They are constructed using high-strength neodymium magnets (NdFeB), durable steel housings, and threaded bars for secure attachment.
3. How much pull force can these magnets provide?
Depending on the model, the breakaway force ranges from 60 kgf to 100 kgf, providing sufficient suction for various pipe sizes.
4. Are there different thread sizes available?
Yes, we offer various thread sizes including M10, M12, M14, M16, M18, M20, and M24 to accommodate different socket and pipe requirements.
5. How is the quality of the magnetic pull force ensured?
All products undergo testing using professional pull force test equipment to ensure they meet the rated breakaway specifications.
6. How are the magnets protected during shipping?
The magnets are neatly stacked with built-in foam buffers to prevent collisions and are packed in cartons with waterproof bags for moisture protection.
