The Embedded PVC Pipe Fixed Magnet is a built-in magnet for precast concrete. It is primarily used to secure various embedded pipes and raceways in precast concrete assemblies. The design of this magnet allows it to accurately locate and secure embedded components during concrete placement, thus ensuring construction safety and component quality.

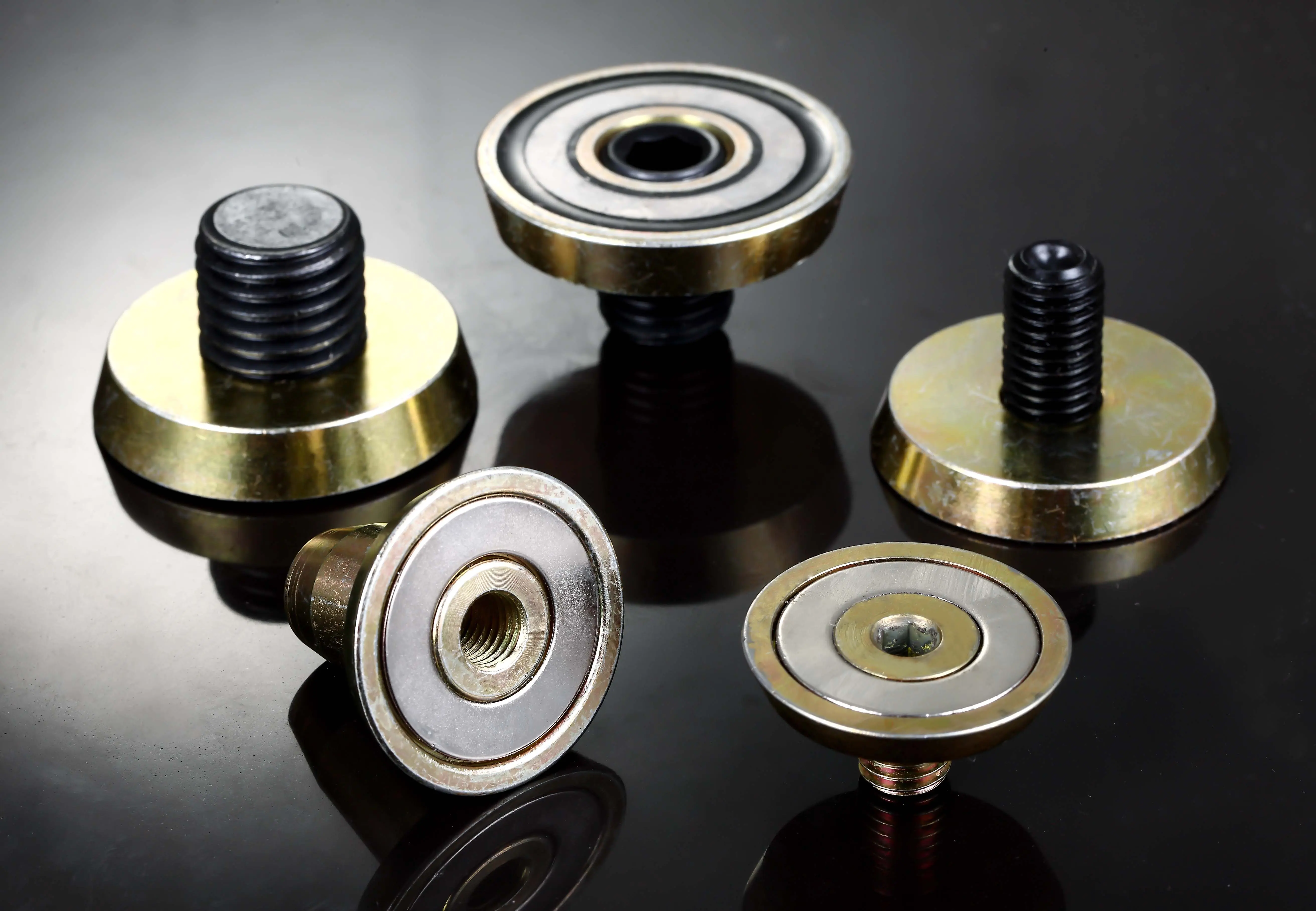

Various types of insert magnets
Product name
Embedded PVC Pipe Fixed Magnet
Item No.
D40
Coercivity
868(KA/m)
Remaining magnetization
1.2 (T)
Intrinsic Coercivity
955 (KA/m)
Maximum magnetic energy product
287（KJ/m3）
Material grade
N35
Working temperature
80(℃)
Specification
D40
Suction power
35kg
Dimension
18.1mm/19.3mm
Surface treatment
Colorful zinc plating
Other Attributes
Place of Origin
CHINA
Delivery Time
15-35 days
Type
Permanent
Composite
Neodymium Magnet
Shape
Pot / Cup Shape
Application
Industrial Magnet
Processing Service
Cutting
Size
Customized Magnet Size
Material
Neodymium magnets and metal shell
Certification
ISO9001/TS16949/Reach/Rosh
Usage
Concrete Construction
Sample
Available
Feature
High Magnetic Force
Keyword
Pipe Embeded Socket Fixing Magnet
MOQ
10 PCS
Packing
Magnetic shielding package
Features
1. Material and StructureUsually consists of a high performance NdFeB magnet, a steel housing and a threaded rod. The steel casing concentrates the magnetic force to the contact surface.
2. Dimensions and pulling forceConventional discs have a D40mm diameter, 6mm height, pulling force >35KG, available in M20 and M24 screw sizes.
3. CoatingMagnets are coated with NiCuNi or zinc, and steel housings are coated with zinc or copper for extra protection.
4. Magnetic designReasonable magnetic circuit design and mature production process ensure high quality and durability.
5. ReusableThese magnets are reusable, cost-effective and easy to handle in construction sites.

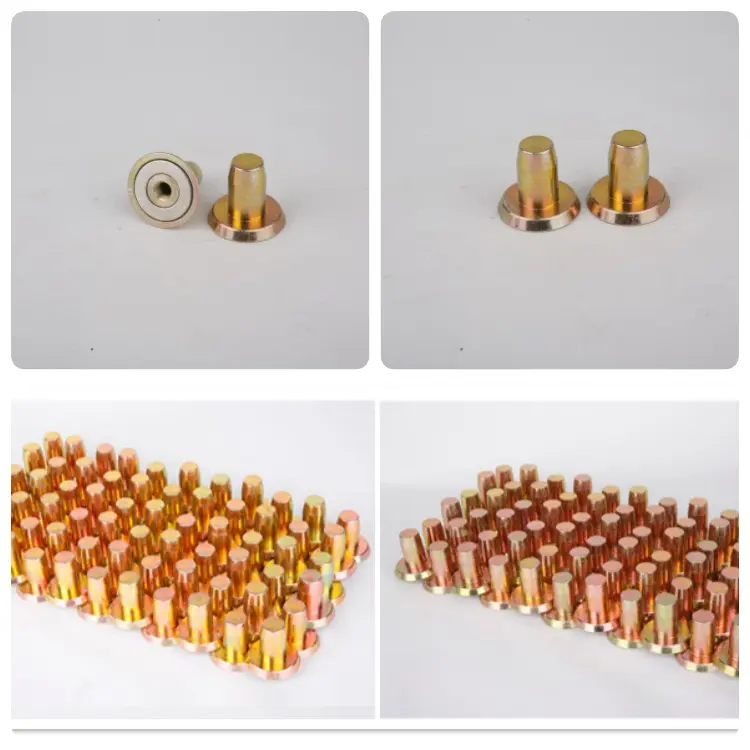

Embedded PVC Pipe Fixed Magnet Production
Application Prospects
1. Precast Concrete Industry: Used for fixing embedded pipes and wire channels, ensuring accurate positioning during concrete pouring.
2. Building electrical system: Fixes wire channels and pipes without leaving marks on the concrete surface, improving aesthetics.
3. Green Building Model: Supports energy-saving and efficient precast construction methods as an essential tool.

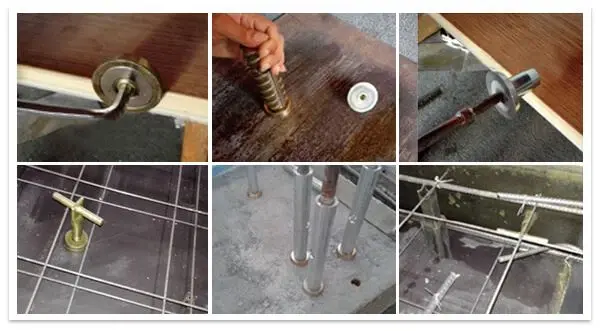

Application of Insert Magnets in Concrete
Precautions
1. Avoid high temperatures: Temperatures exceeding 80°C may cause loss of magnetism.
2. Handling safety: Wear gloves to prevent pinching and keep away from electronic equipment.
3. Avoid covering: Do not cover the magnet surface during pouring to maintain magnetic properties.
Embedded PVC Pipe Fixed Magnets offer significant advantages in the precast concrete industry through durability and precision.
Frequently Asked Questions
What is the primary function of an Embedded PVC Pipe Fixed Magnet?
It is designed to accurately locate and secure embedded pipes, raceways, and wire channels in precast concrete assemblies during the pouring process.
What is the maximum working temperature for these magnets?
The standard working temperature is up to 80°C. Exceeding this temperature can lead to a reduction or total loss of magnetic force.
Can these magnets be reused?
Yes, these magnets are designed for durability and are completely reusable, making them a cost-effective solution for concrete construction.
What kind of surface treatment is applied to the magnet?
The magnets typically feature NiCuNi or zinc coating, while the steel housing is treated with colorful zinc plating or copper for maximum corrosion resistance.
What is the pulling force of the D40 model?
The D40 model provides a suction power (pulling force) of more than 35kg, ensuring secure attachment to the steel platform.
Are custom sizes available for specific projects?
Yes, customized magnet sizes and screw sizes (standard M20 and M24) are available to meet various industrial requirements.
