🔵 Product Overview

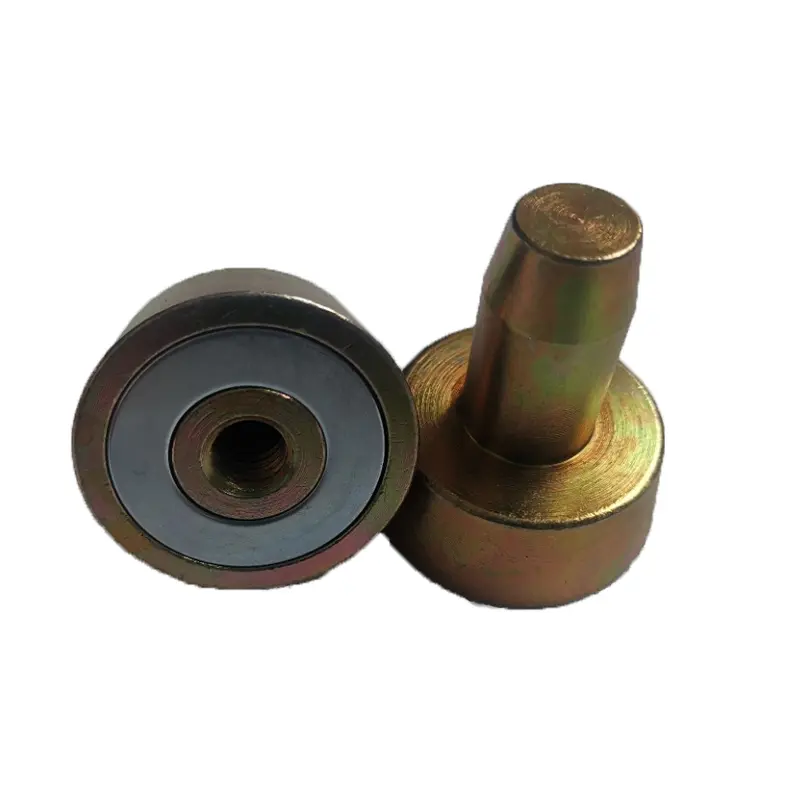

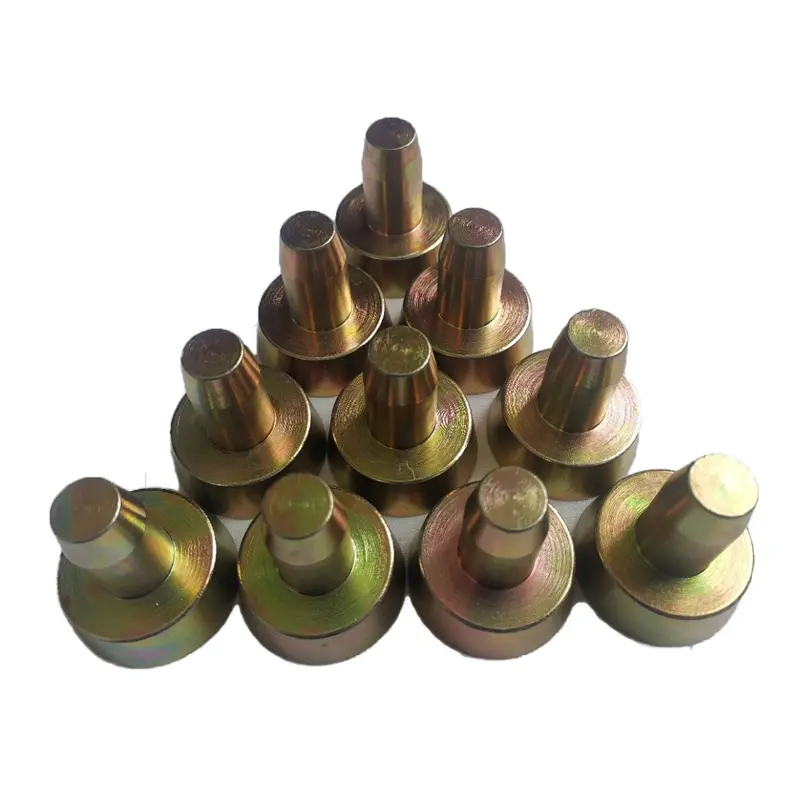

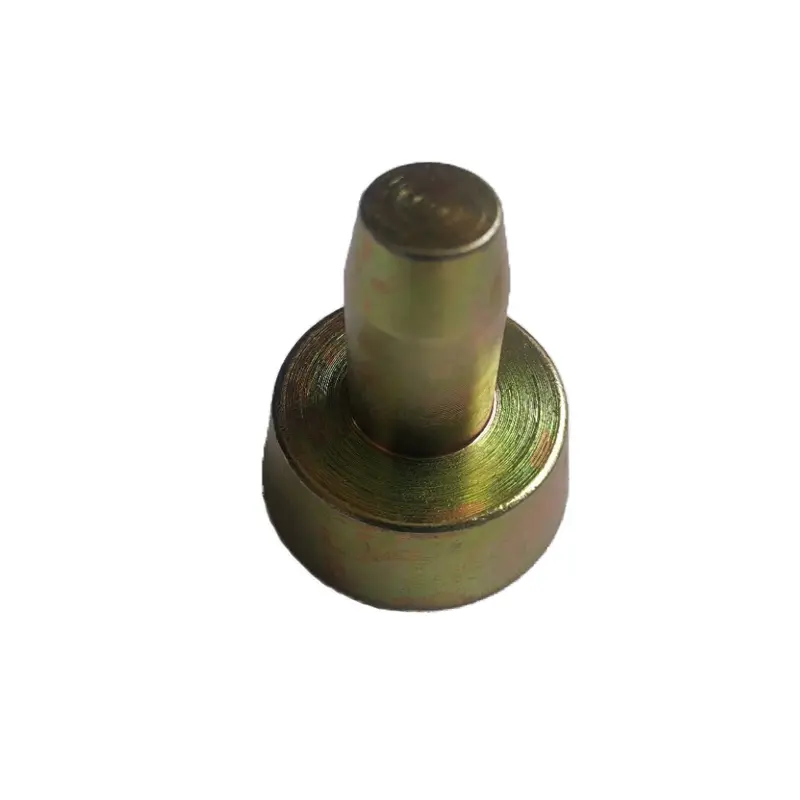

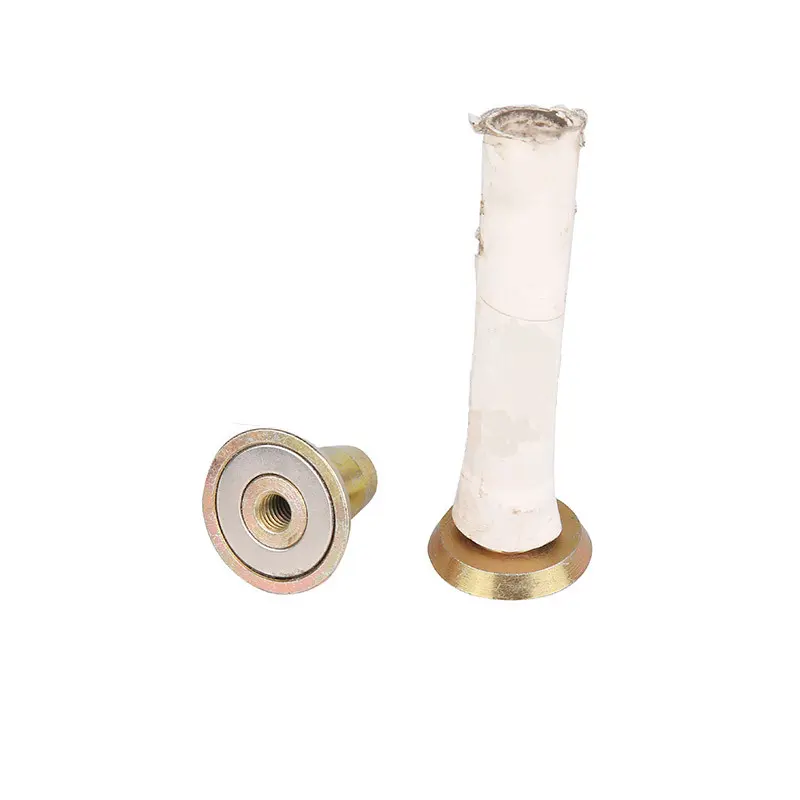

The Grout Connector Pipe Magnet is a steel retaining pin designed to be fitted to the end of a concrete grout connector pipe, securing the grout pipe to the side of the unit, creating a small recess with a built-in, powerful magnet that holds it securely in place on the steel formwork and prevents concrete from leaking into the void. Used for on-site filling and venting, little or no work is required after grouting. This design does not cause obstruction to the concrete surface.
A full set of high-precision laser cutting, bending and CNC lathe equipment allows for the rapid customization of various sizes of magnetic mounting products. The new series includes:
- D40-18.1: Suitable for Φ20mm PVC water pipes
- D40-23.1: Suitable for Φ25mm PVC water pipes
- D40-29.7: Suitable for Φ32mm PVC water pipes
❓ Frequently Asked Questions
1. What is the main purpose of the Grout Connector Pipe Magnet?
It is designed to secure grout pipes to steel formwork during concrete casting, creating a clean recess and preventing concrete leakage into the pipe void.
2. Can these magnets be customized for different pipe sizes?
Yes, we utilize high-precision CNC and laser cutting equipment to customize sizes. Standard options cover Φ20mm, Φ25mm, and Φ32mm PVC pipes.
3. Does the use of this magnet interfere with the concrete surface?
No, the design is specifically engineered to ensure no obstruction to the concrete surface, leaving a clean finish after the formwork is removed.
4. What is the maximum operating temperature for these magnets?
The standard working temperature for these N35 grade magnets is up to 80°C.
5. What is the suction power of the D40 model?
The D40 specification provides a powerful suction force of 35kg, ensuring it stays firmly attached to the steel formwork.
6. How are the magnets protected during shipping?
Each product is protected by built-in foam to prevent collisions, neatly stacked in cartons, and wrapped in waterproof bags for safe transit.
