The Magnetic Thread Disc is a high-strength magnetic tool used in precast concrete to securely position threaded anchors during formwork assembly, ensuring structural integrity and reducing setup time. It features easy repositioning, durability, and precision alignment, making it ideal for applications like wall panels, beams, and architectural elements. This reusable and cost-effective accessory enhances efficiency, and safety, and reduces overall production costs in the precast concrete industry.

Send Inquiry

Product Description

Introduction

In the evolving precast concrete industry, efficient and secure positioning of threaded anchors during formwork assembly is essential. The Magnetic Thread Disc has emerged as a crucial component, securely position threaded inserts during formwork assembly. This magnetic accessory is specifically designed to facilitate threaded socket placement in precast concrete molds, ensuring structural integrity and reducing setup time. Below is a detailed introduction to this innovative product.

Key Features of the Magnetic Thread Disc

1. High Magnetic Strength

The magnetic thread disk is designed with a powerful rare earth magnet, the D50 provides a holding force of 588 N. It attaches securely to the steel formwork, preventing displacement during concrete pouring and curing. This strength enhances stability and ensures that the threaded sleeve remains in the correct position.

2. Easy Positioning and Reusability

The disc’s unique design allows it to be easily repositioned, allowing flexibility in the arrangement of threaded inserts. Furthermore, the Magnetic Thread Disc is crafted for repeated use, making it a cost-effective option for large-scale production operations.

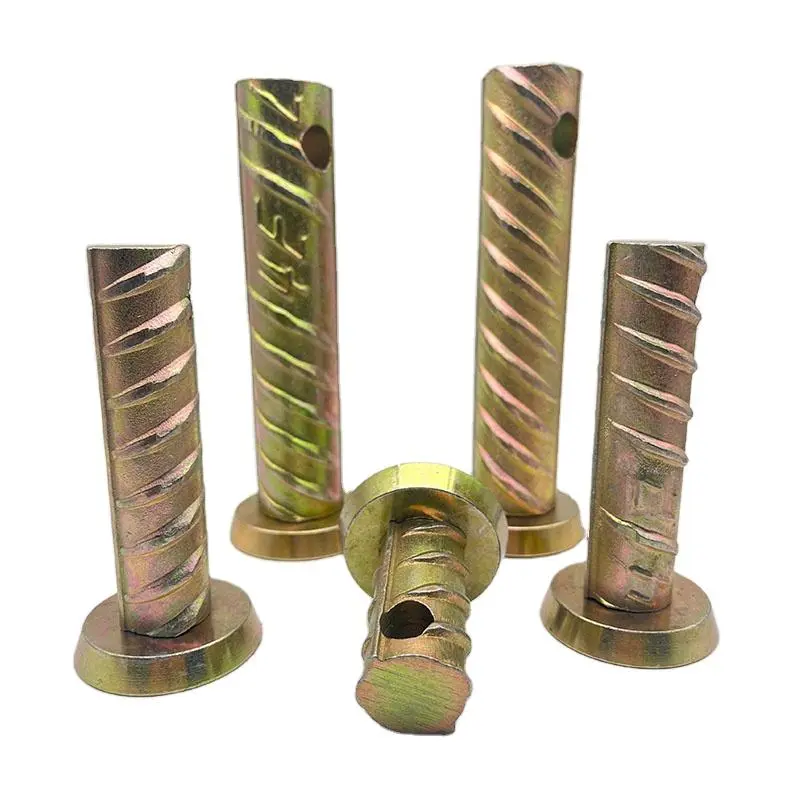

Precast Concrete Threaded Lifting Socket For Construction

3. Durable Construction

The outer layer is an iron shell coated with colored zinc, the disc withstands the demanding conditions of the precast concrete environment. This durability minimizes wear and tear, making the disc a reliable component in the production line for prolonged periods.

4. Precision Alignment

For applications where alignment accuracy is critical, the Magnetic Thread Disc ensures precision, helping the threaded inserts to remain precisely positioned. This is particularly advantageous for complex concrete elements requiring accurate alignment.

Magnetic Thread Disc Product Specifications

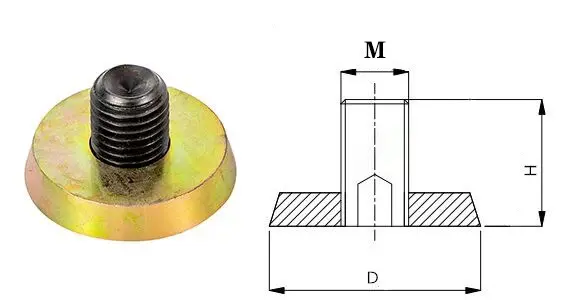

Magnetic thread disc Dimensional Drawing

Model	D (mm)	H (mm)	Breakaway (kg)	M
D50*8	50	8	60	M10 / M12 / M14 / M16
D54*10	54	10	65	M18 / M20 / M24
D64*12	64	12	100	M16

Applications of Magnetic Thread Disc in Precast Concrete

In the precast concrete industry, the Magnetic Thread Disc is ideal for applications requiring the installation of anchors, threaded inserts, and other embedded parts in concrete elements. Common uses include:

Wall Panels and Beams

Magnetic Thread Discs are frequently used to position threaded inserts in concrete wall panels and beams, helping to create secure lifting points or fixing anchors.

Architectural Elements

The magnetic disc facilitates the precise placement of threaded components in decorative or complex architectural precast elements, meeting exacting design requirements.

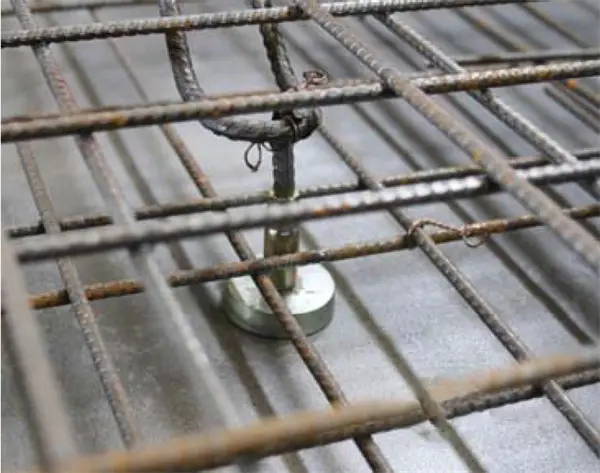

application of Magnetic thread disc for precast concrete industry

Utility and Infrastructure Components

In precast utility components, the disc enables reliable anchoring for conduits, cables, or lifting attachments, ensuring the durability and stability of the final concrete product.

Advantages of Using Magnetic Thread Disc

Enhanced Efficiency: With easy-to-use positioning and reusability, the Magnetic Thread Disc enables rapid formwork assembly, accelerating production timelines.
Improved Safety: The secure hold reduces the risk of misaligned or dislodged sockets, leading to fewer production errors and safer concrete handling.
Cost-Effective: Reusable and durable, the disc lowers overall production costs by reducing material wastage and assembly time.

Conclusion

The Magnetic Thread Disc is an essential innovation for the precast concrete industry, offering high-strength magnetic hold, easy repositioning, and accuracy in aligning threaded inserts. Its durability and reusability contribute to enhanced production efficiency and reduced operational costs. Whether for structural or architectural elements, this magnetic component is indispensable for any precast concrete production setup, ensuring quality and precision with every use.

By optimizing assembly processes and improving component placement accuracy, the Magnetic Thread Disc supports the growing demands of the precast concrete industry, providing reliable, efficient, and cost-effective solutions.

Frequently Asked Questions

What is a Magnetic Thread Disc?

It is a magnetic accessory designed to securely position threaded inserts and sockets during formwork assembly in precast concrete molds.

How does it improve construction efficiency?

By providing strong holding forces and allowing easy repositioning, it speeds up formwork assembly, reduces placement errors, and is fully reusable for subsequent projects.

What is the holding force of the D50 Magnetic Thread Disc?

The D50 model is equipped with a powerful rare earth magnet that provides a breakaway holding force of 588 N (60 kg).

What durability features does it have?

The outer layer of the disc is made of an iron shell coated with colored zinc to withstand harsh conditions and prevent wear and tear in precast concrete environments.

What are the common applications of this product?

It is commonly used to install lifting sockets, anchors, and fixing elements in precast wall panels, beams, complex architectural elements, and utility infrastructure components.
