China Semi-spherical Steel Magnetic Recess Former Factories, Pricelist
The Semi-spherical Steel Magnetic Recess Former is a magnetic assembly for securing Dog Bone Spherical Head lifting anchors in precast concrete. Made of Q235 steel with neodymium magnets, it has various parameters. It avoids mould damage, combines functions, is reusable, corrosion-resistant, customizable, and used in multiple systems and concrete product production.
The Semi-spherical Steel Magnetic Recess Former is a magnetic assembly used to secure Dog Bone Spherical Head lifting anchor in the production of precast concrete elements. It is typically made of a high quality Q235 steel that is integrated with a core of high performance neodymium magnets to provide a strong magnetic force. The design helps to locate the Spherical Head Lifting Anchors in the steel mold, and when the concrete is poured and fully cured, it can be easily removed.

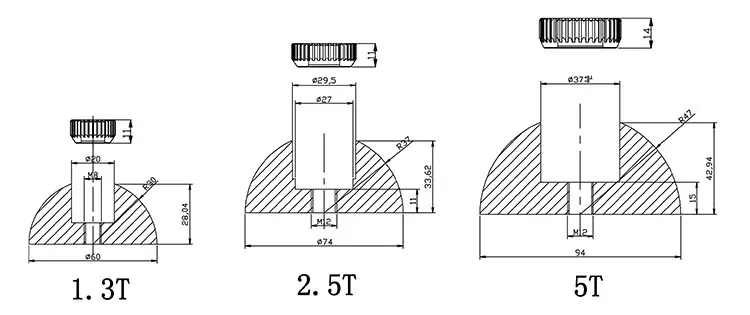

1.3T, 2.5T, 5T Steel Recess Former Magnet For Anchor Fixing
Regular Product Parameters
Tensile Capacity: Ranging from 1.3 tons to 10.0 tons to suit various load requirements.
Thread Sizes: Standard M8, M10, or M12 threads are used to secure the Spherical Head Lifting Anchors.
The primary function of the Semi-spherical Steel Magnetic Recess Former is to eliminate the need for drilling holes in molds. This reduces potential damage and significantly prolongs the lifespan of the steel molds by magnetically fixing the anchors during precast concrete production.

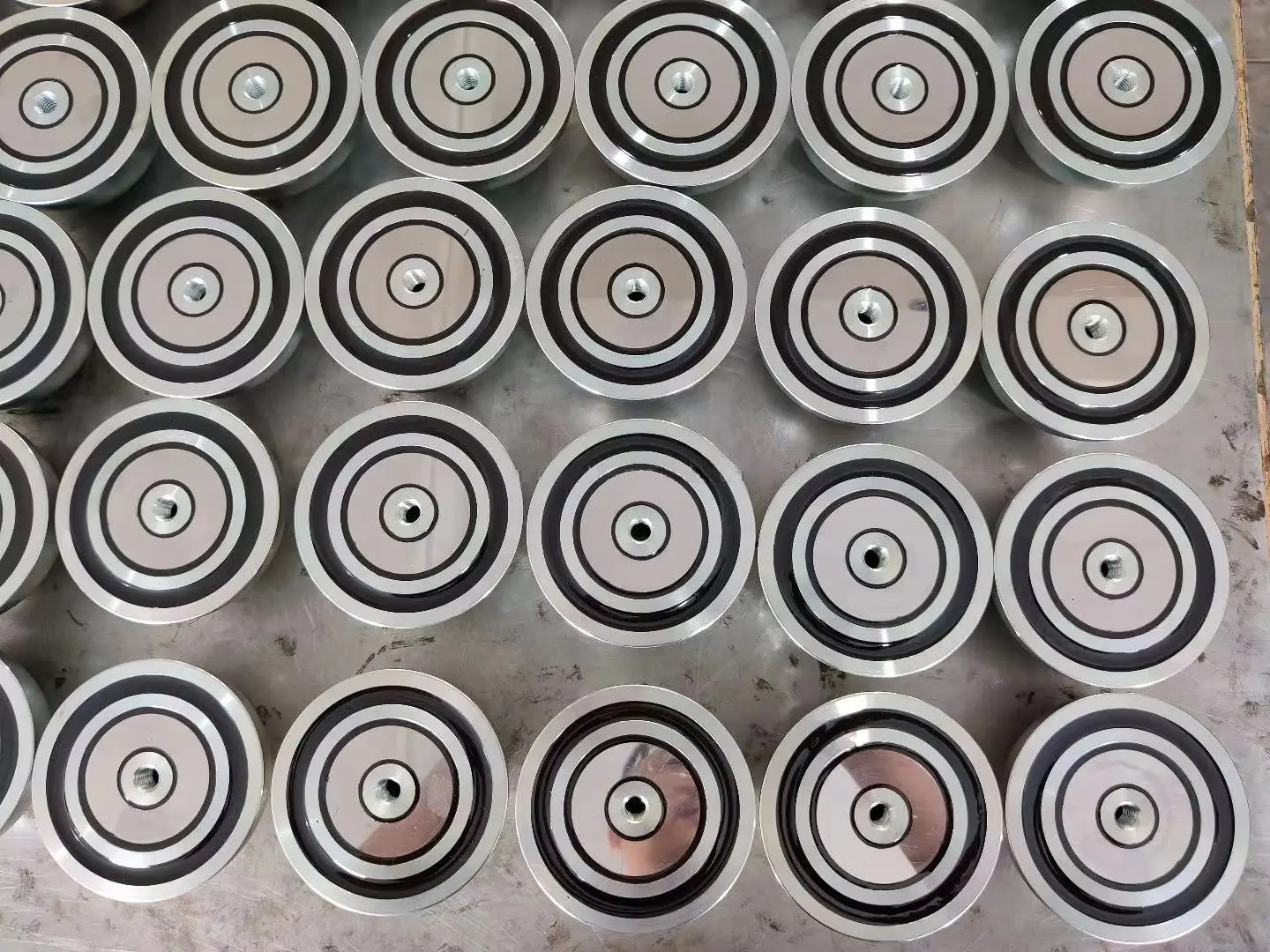

Magnetic Recess Former High Yield and Quality
Features & Benefits
Robust Design: Combines a groove former and magnet with internal threads for easy release and long service life.
Cost-Effective: Environmentally friendly through high reusability and reduced mold maintenance.
Corrosion Resistance: Surfaces can be zinc-plated, copper-plated, or nickel-coated for harsh environments.
Superior Materials: Uses high-quality neodymium magnets for better performance than traditional rubber formers.
Customization: Available in custom shapes, sizes, operating temperatures, and forces upon request.
This magnetic notch former is widely utilized in pallet circulation systems, tilting tables, and the production of various concrete products including walls, beams, piles, and floor slabs.

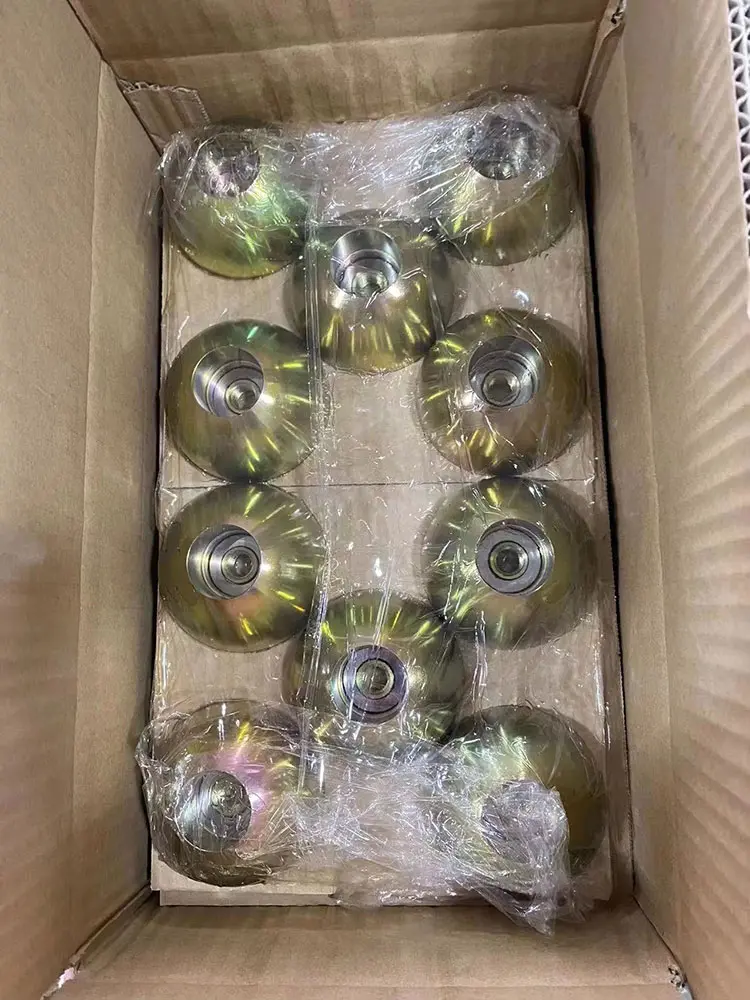

Package of Steel Magnetic Recess Former
FAQ
1. What is the main purpose of a Steel Magnetic Recess Former?
It is used to magnetically secure Spherical Head Lifting Anchors in steel molds during precast concrete production, eliminating the need to drill holes in the mold.
2. What materials are used in its construction?
The assembly is typically constructed from high-quality Q235 steel housing integrated with a high-performance Neodymium magnet core.
3. How do I choose the right size for my anchor?
Sizes correspond to anchor capacity: D60mm for 1.3T, D74mm for 2.5T, D94mm for 5.0T, and D118mm for 10.0T anchors.
4. Can the magnet withstand corrosion from wet concrete?
Yes, the magnet surfaces can be coated with zinc, copper, or nickel-copper-nickel plating to resist corrosion and prolong service life.
5. Are custom specifications available?
Yes, we can provide customized shapes, sizes, operating temperature ratings, and magnetic forces based on specific production requirements.
6. What types of concrete elements is this product suitable for?
It is ideal for precast walls, beams, piles, floor slabs, and elements produced on tilting tables or pallet circulation systems.
