Magnetic Side Rail Systems, for flat casting tables, are great for wall and slab production. They avoid on - site drilling or welding. Operable by robot or manually, with a button for magnet activation. They come in various sizes, have multiple advantages like a stable design, easy - operation, and customizable features.

Send Inquiry

Product Description

Magnetic Side Rail Systems Overview

Magnetic Side Rail Systems are ideally suited for use on flat casting tables, which produce walls and slabs efficiently. As the magnets provide a strong Pull force, bolt drilling or welding templates on site is avoided. This is an efficient and flexible way to position the rail for a wide range of products.

Designed to be robotically handled or manually positioned and locked, Magnetic Side Rail Systems allow easy activation and release of magnet force with the press of a switch button. Available in panel heights of 60-200mm, panel lengths of 500-4000mm, without tilted edges and with 1 chamfered edge or 2 chamfered edges. No need to disengage the built-in powerful neodymium magnets to move the side rails, easy to operate safe and fast to use.

U60 Magnetic Formwork System height models

U60 Magnetic Formwork System length models

Formwork Chamfering Function

The formwork magnet comes with a specialized chamfering function, ensuring precise edges for concrete components.

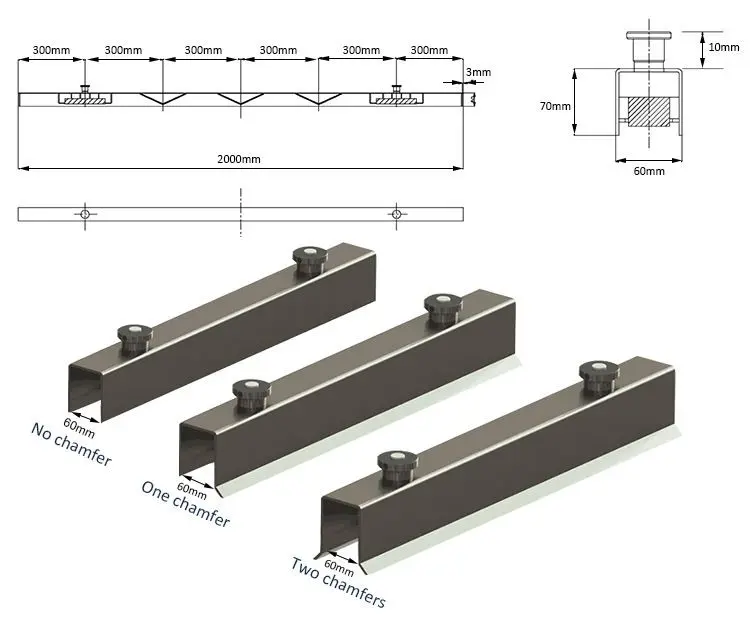

Formwork magnet with chamfering function

Advantages of the Magnetic Side Rail System

Integrated monolithic design: The system will not shift and ensures the consistency of the concrete components.
Push-button design: Makes the operation more convenient for manual or robotic use.
Built-in powerful neodymium magnet: Provides exceptionally high holding power.
Protected magnet core: The magnet is housed in a steel groove, avoiding the intrusion of concrete residue and dirt.
Customization: The size and magnet adhesion can be customized according to specific requirements.
Inclined edge design: 3 kinds of inclined edge designs available to form precise chamfers.

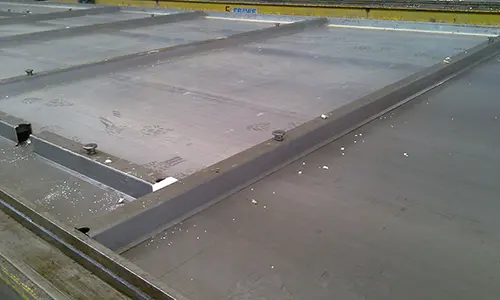

Application of magnetic side rail system

Anti-Rust Protection & Bottom Structure

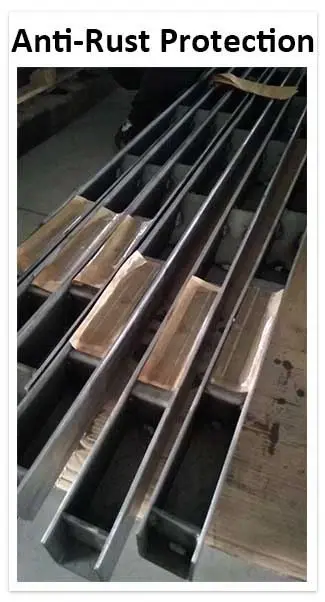

Anti-Rust Protection: High-quality surface treatment to ensure longevity in harsh environments.

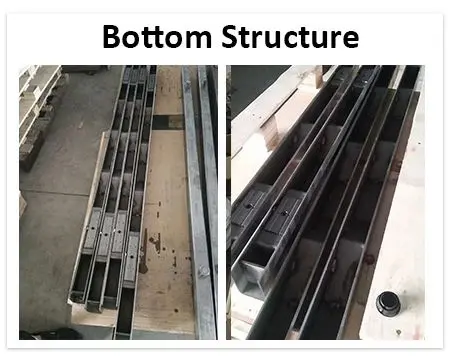

Bottom Structure: Robust engineering to provide stable support and maximum magnetic contact.

Packaging & Delivery

Inner Package: Secure positioning to prevent movement during transit.

Wooden Case Package: Export-grade wooden crates for international shipping safety.

Frequently Asked Questions

1. What are the main benefits of using magnetic side rails? The main benefits include a strong pull force that eliminates the need for welding or drilling on casting tables, resulting in faster setup and higher flexibility for various concrete products.

2. Can these rails be used with robotic systems? Yes, the system is designed to be either robotically handled or manually positioned, featuring a simple switch button for activating and releasing magnetic force.

3. What dimensions are available for the side rail panels? Standard heights range from 60mm to 200mm, and lengths can range from 500mm up to 4000mm. Custom sizes can also be manufactured.

4. How is the magnet protected from concrete debris? The powerful neodymium magnets are built into a steel groove, which effectively prevents concrete residue and dirt from entering the magnetic core.

5. Are there different edge designs for specific finishes? Yes, we offer three kinds of inclined edge designs, including options with no tilted edges, one chamfered edge, or two chamfered edges for precise concrete shaping.

6. How is the product packaged for international shipping? Products are first secured in a dedicated inner package and then placed in robust wooden cases to ensure safe delivery and prevent magnetic interference during transport.
