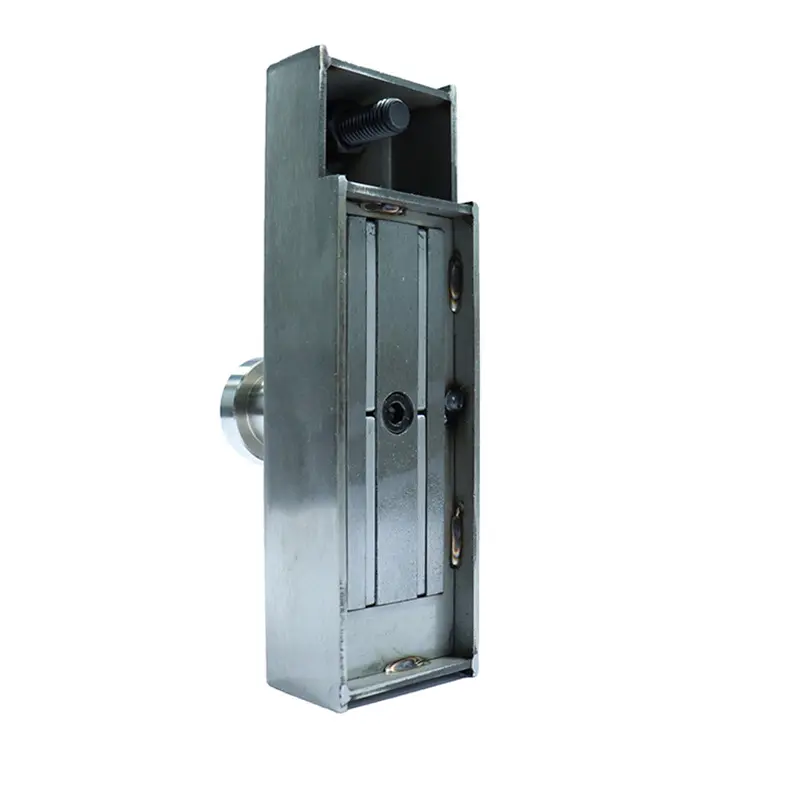

The 600 kg shuttering magnet is primarily used in formwork systems for precast concrete structures and is designed to provide an efficient, cost-effective and secure fixing method. The magnet has a strong vertical suction force (≥600 kg) to securely hold steel plates, beams, fences and forms. In addition, it has a release function that allows the user to easily remove the workpiece.
Economic Benefits: The use of 600 kg shuttering magnets significantly reduces the need for traditional fastening methods such as nails and staples, resulting in significant time and labor savings. In addition, labor costs are further reduced as installation can be carried out quickly by one person without the need for additional personnel. At the same time, the magnets prevent rigid damage to the steel formwork table, reducing repetitive installation and removal work.
Application Cases
1. Precast Concrete Elements Production
In the production of precast concrete elements, 600 kg clamping magnets are often used to secure the side molds. By using this magnet, it can effectively resist the shear force and vibration after the concrete is poured, ensuring the stability and safety of the mold.
2. Precast Building Envelope
600kg clamping magnets are used in precast building envelopes to fix the sandwich panel molds. These magnets are not only suitable for molds with steel reinforcement, but also for molds with a recommended height of 40-70 mm. This makes the entire construction process more efficient and reliable.
600kg precast concrete formwork magnets have an important application value in the precast concrete industry, which can not only improve construction efficiency and safety, but also bring significant economic benefits.
Shuttering Magnets 600kg Application Shows
Other shutter magnet product specifications
Model
Dimension (mm)
Cover material
Net weight (kg)
Attractive force (kg)
L
W
H
L1
L2
L3
H1
H2
H3
S
Model-600
210
60
40
92.5
71.5
40
74
65
–
M12
S304
1.9
600
Model-800
210
62
54
85
85
–
88
79
–
M12
Q235
2.8
800
Model-900
210
62
54
85
85
–
88
79
–
M12
Q235
3.0
900
Model-1000A
200
98
40
99.5
67.5
50
75
65
10
M12
S304
2.8
1000
Model-1000B
240
68
54
90
90
–
88
79
–
M12
Q235
3.2
1000
Model-1800A
260
120
60
112
112
–
94
85
–
M16
S304
5.7
1800
Model-1800B
260
120
60
112
112
–
94
85
–
M16
Q235
6.3
1800
Model-2100A
320
120
60
136
136
–
94
85
–
M16
S304
7.3
2100
Model-2100B
320
120
60
136
136
–
94
85
–
M16
Q235
7.4
2100
Model-2400A
320
120
60
136
136
–
94
85
–
M16
S304
7.5
2400
Model-2400B
320
120
60
136
136
–
94
85
–
M16
Q235
7.6
2400
Model-3000
320
160
60
136
136
–
94
85
–
M16
Q235
10.6
3000
Key Features of 600kg Precast Concrete Shuttering Magnets
Use of neodymium iron boron permanent magnets, compact and robust design.
Optimized performance, no weakening of magnetism even in harsh working environments.
Certified demagnetization.
Fully enclosed, compact and lightweight design with safety locking mechanism.
Rugged construction and very lightweight magnetic switch.
Two longitudinal reinforcing strips on the holding surface of the magnet.
Precast concrete magnets production equipment
Shuttering magnet box pull force test equipment
Frequently Asked Questions (FAQ)
What is the primary function of the 600 kg shuttering magnet?
The 600 kg shuttering magnet is designed to provide an efficient, secure, and cost-effective fixing method in formwork systems for precast concrete structures, holding steel plates, beams, fences, and forms firmly in place.
How does this product improve economic efficiency in construction?
It significantly reduces the need for traditional fastening methods like nails and staples, saving time and labor. It also prevents rigid damage to the steel formwork table, allowing rapid, single-person installation.
Can these magnets withstand the concrete pouring process?
Yes. When used in precast elements production, the magnets are specifically designed to effectively resist the shear forces and vibrations generated after concrete is poured, ensuring mold stability.
What size molds are recommended for the 600kg clamping magnets?
These clamping magnets are highly suitable for molds with steel reinforcement and are recommended for mold heights ranging between 40 mm and 70 mm.
What materials are utilized in these shuttering magnets?
They feature high-strength neodymium iron boron permanent magnets with a cover material made of stainless steel (such as S304) or carbon steel (such as Q235) depending on the model.
Do the magnets lose their attraction force in harsh conditions?
No, these shuttering magnets feature optimized performance designs that ensure no weakening of magnetism occurs, even when operated in harsh working environments.
