Shuttering magnets are efficient tools in precast concrete industry, using powerful neodymium magnets in steel casings for secure formwork attachment without damaging surfaces. They offer quick setup, preserve surfaces, are versatile, have high load capacity, and are durable with proper maintenance.

Send Inquiry

Product Description

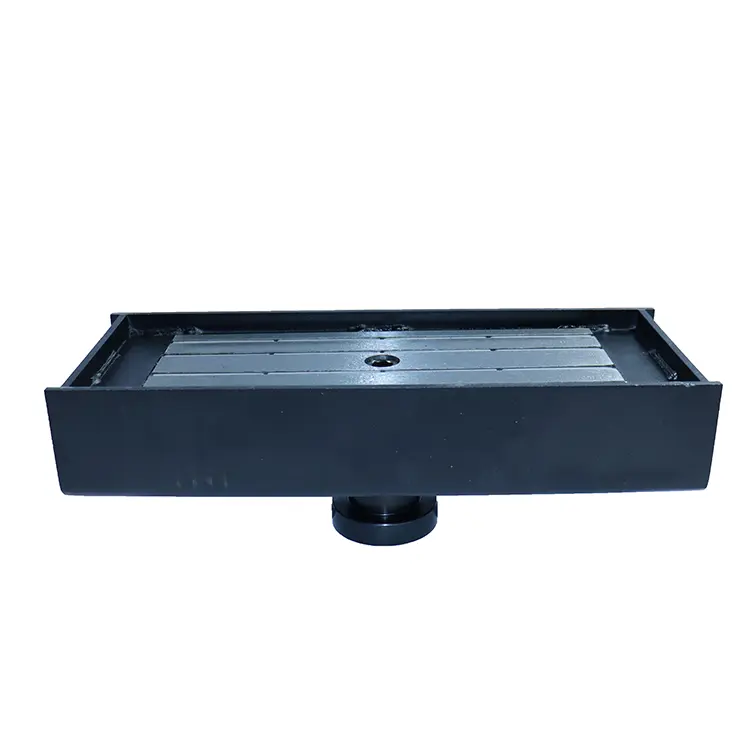

Shuttering magnets are a handy tool for precast plants to hold forms in place while pouring concrete elements. These magnets provide a more efficient and faster alternative to traditional bolting or welding. Alternatively bolting or welding can damage the formwork and pouring surface.

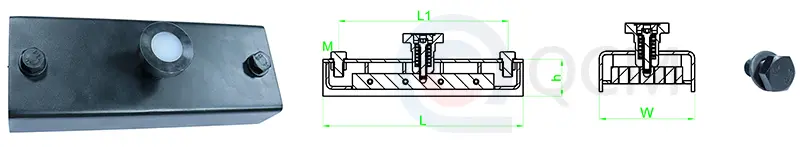

Model	L(mm)	L1(mm)	W(mm)	h(mm)	M	Weight(g)	Breakaway(kg)
QCM450	170	135	60	43	M12*30	1800	450
QCM600	170	142	60	43	M12*30	2500	600
QCM900	280	244	60	43	M12*30	2800	900
QCM1600	290	240	120	60	M16*30	6500	1600
QCM1800	320	270	120	60	M16*30	7200	1800
QCM2100	320	270	120	60	M16*30	7600	2100
QCM2400	320	270	120	60	M16*30	7600	2400
QCM3000	320	270	140	60	M16*30	7800	3000

How Shuttering Magnets Work

Shuttering magnets are made up of a number of components, including:

Neodymium magnet This is a powerful permanent magnet that provides a strong magnetic force that is essential for holding the stencil firmly in place.

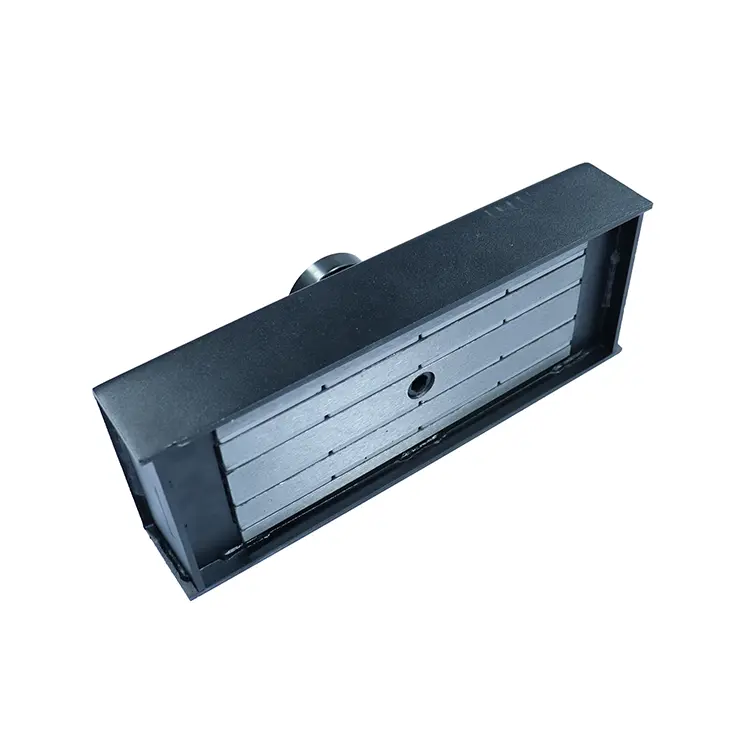

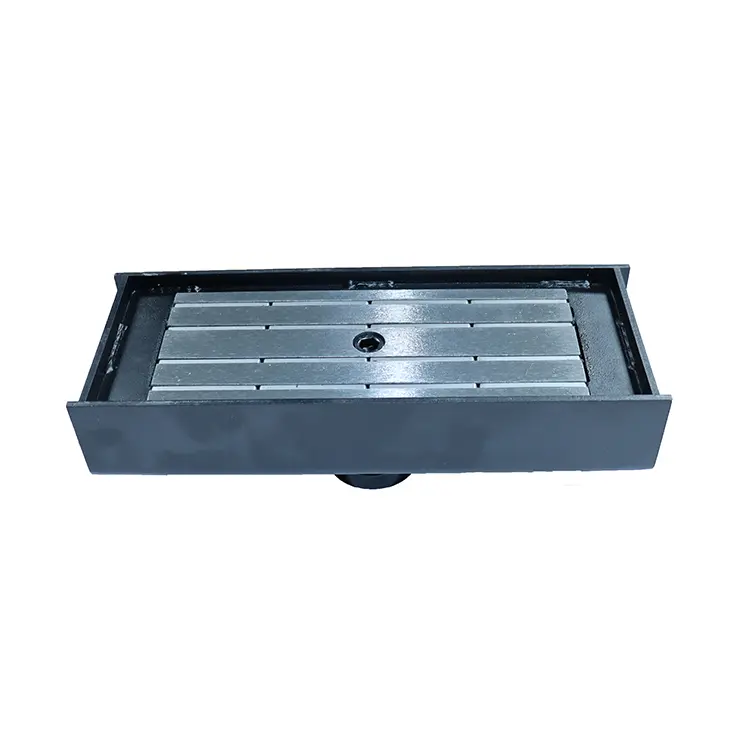

Steel Case The magnet is encased in a steel case that serves multiple purposes: It protects the magnet from damage caused by impact; the steel casing does not seal the bottom surface, this design helps to concentrate the magnetic force at the bottom and maximize adhesion to ferrous surfaces; it facilitates handling and positioning of the magnet.

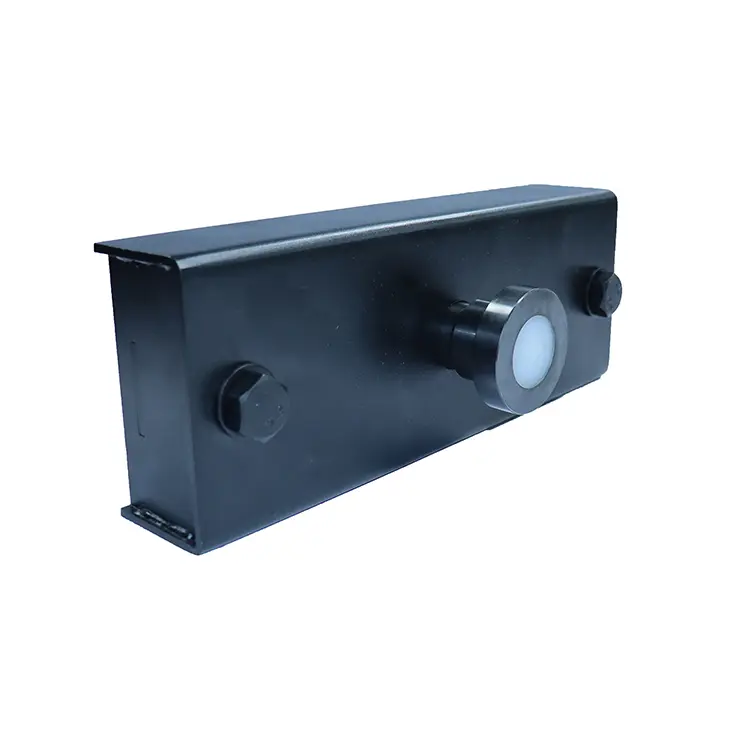

Control Mechanism Shuttering magnets have an on/off button. When the button is pressed, the magnet adheres firmly to the cast steel table. Lifting the button with the special pry bar will release the magnetic force and the magnet will separate from the steel platform.

Procedure

Placement

Place the shuttering magnet on the side of the formwork with the bottom surface fitting the steel platform.

Activate

Tap the button at the top with a mallet or rubber mallet to activate the magnet's strong adsorption.

Concrete Pouring

Check whether the formwork is firmly fixed, after confirming the completion, you can start pouring concrete without worrying that the formwork will move under the pressure of concrete.

Discontinuation

Once the concrete has set, the magnet can be separated by lifting the button using the release lever to make it easier to remove the shuttering magnet from the pouring table.

Storage and Maintenance

After using the shuttering magnet, clean and lubricate it to prevent rust.

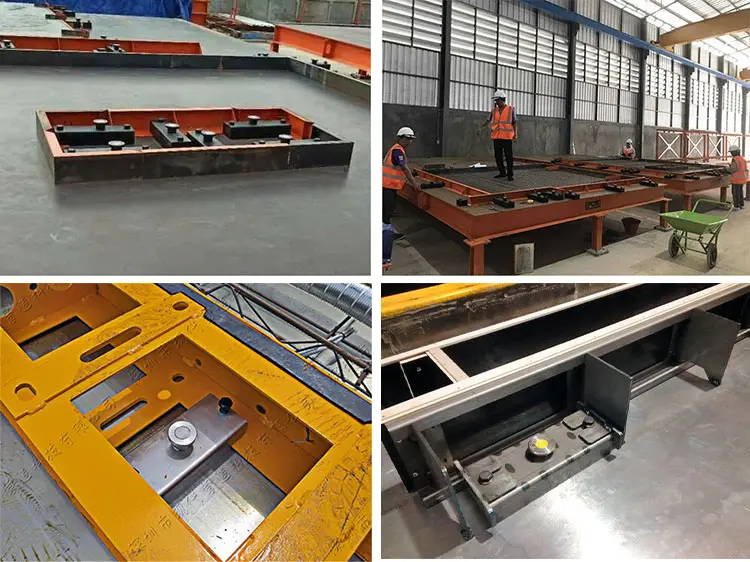

2500 kg precast concrete magnet application scenario diagram

Advantages of shuttering magnets

Efficiency Using shuttering magnets to hold the template in place dramatically reduces work time.
Surface protection Using shuttering magnets to secure formwork avoids damaging the pouring surface by welding or bolting.
Versatility Shuttering magnets with adapters can be used to fix formwork made of wood, aluminum and steel.
High load-bearing capacity The different types of shuttering magnets offer different levels of adsorption force, from 450kg to 3000kg, a characteristic that makes the magnets suitable for a wide range of prefabrication scenarios.
Durability With proper use and attention to maintenance, shuttering magnets will have a long lifespan, which can greatly increase the reuse rate.

The use of shuttering magnets for securing concrete forms in precast construction is an innovative solution that increases efficiency and reduces damage caused by traditional fastening methods.

Frequently Asked Questions

What are the main advantages of using shuttering magnets over welding?

Shuttering magnets provide a faster and more efficient setup without damaging the formwork or the steel pouring table surface, whereas welding or bolting leaves permanent damage and reduces formwork reuse rates.

How do you activate and deactivate a shuttering magnet?

To activate, place the magnet and tap the button on top with a rubber mallet. To deactivate, lift the button using a specialized release lever or pry bar, which releases the magnetic hold from the steel platform.

Can shuttering magnets be used on non-steel formwork?

Yes, shuttering magnets are highly versatile and can be used to fix formwork made of wood, aluminum, or steel when paired with the appropriate adapters.

What range of holding capacities do these magnets offer?

Depending on your precast requirements, models range in holding (breakaway) force from 450 kg for lighter structures up to 3000 kg for heavy-duty concrete pouring.

How do I maintain shuttering magnets to prevent rust?

After each use, clean off any concrete residue and apply a light layer of lubricant or oil to protect the steel casing and bottom surface from oxidation and rust.
