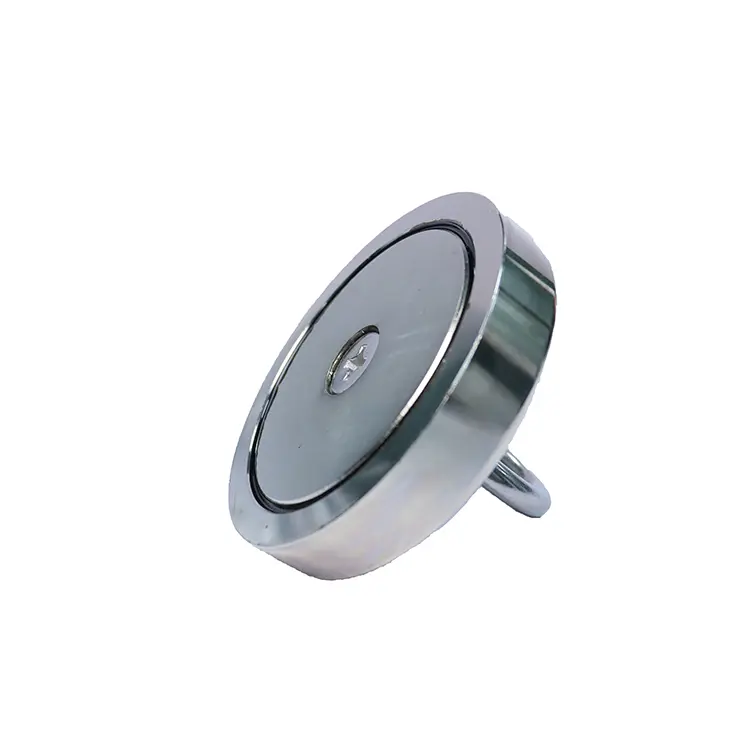

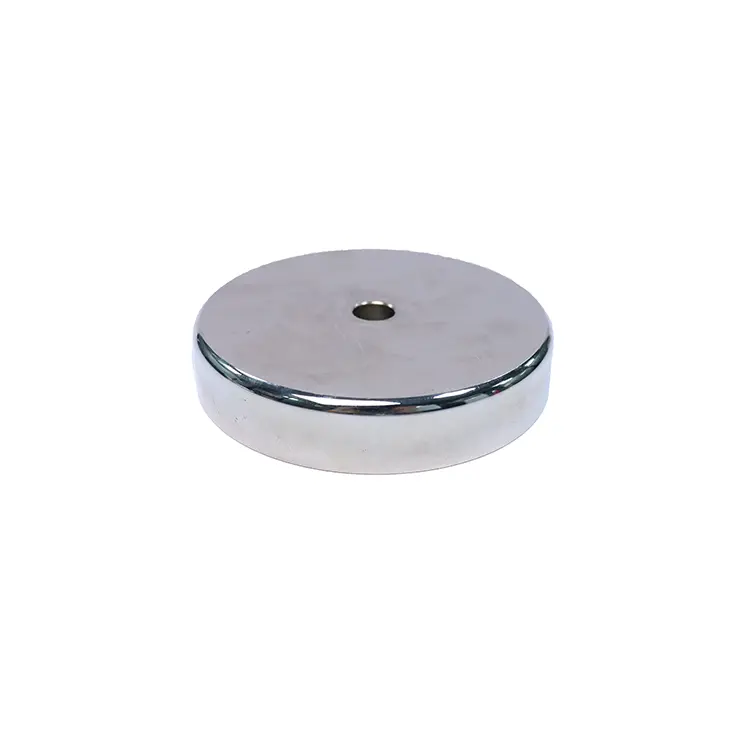

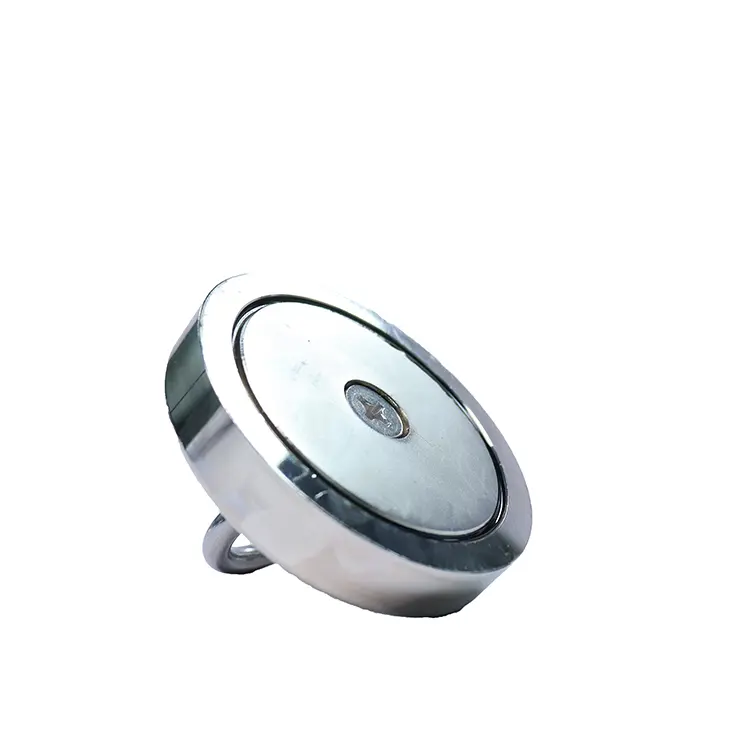

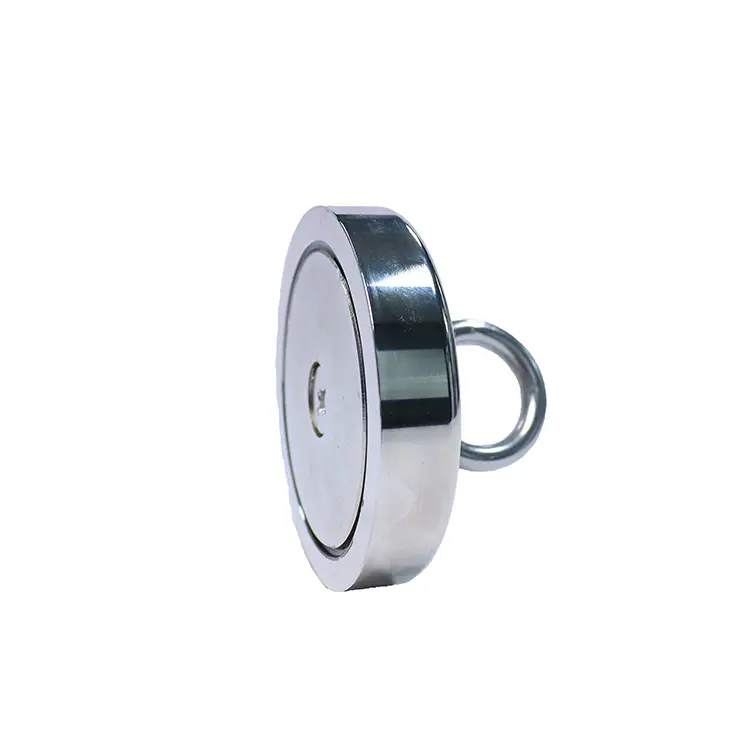

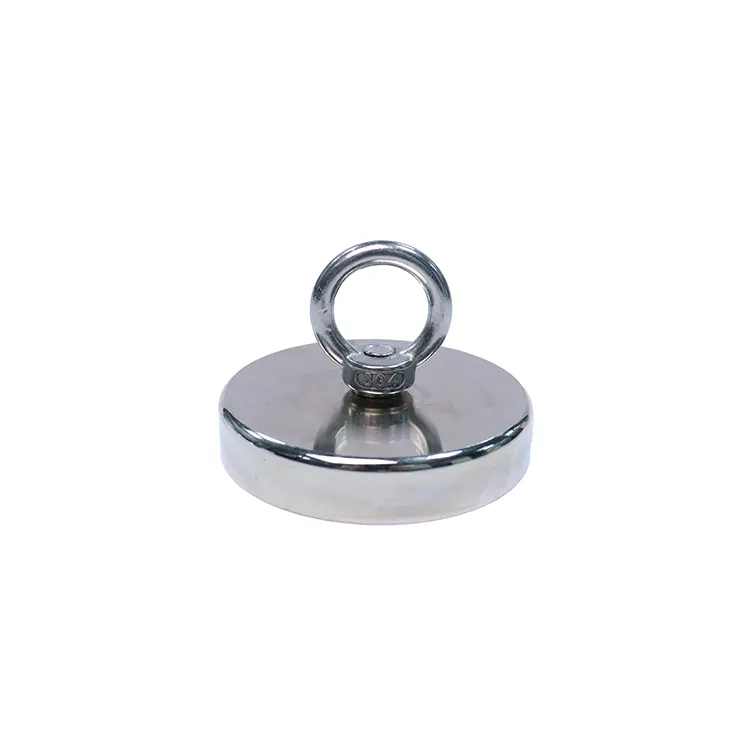

The A-1 Series Fishing Magnets are engineered for efficient retrieval of ferrous materials in diverse environments. Specializing in robust performance and precision design, these magnets leverage neodymium-iron-boron (NdFeB) rare-earth magnets encased in durable Q235 low-carbon steel housing, delivering unmatched magnetic strength for both everyday and industrial applications.
Inner Magnet: High-grade NdFeB alloy, renowned for its superior magnetic flux density and resistance to demagnetization.
Outer Casing: Q235 low-carbon steel, providing impact resistance, corrosion protection, and structural stability.
Cylindrical design concentrates magnetic force for powerful attraction. Equipped with standardized threaded connectors (M8, M10, M12) for easy integration with ropes, hooks, or mechanical systems.
| Model | Diameter (D, mm) | Height (H, mm) | Thread Size (M) | Weight (g) | Breakaway Force (kg)* |
|---|---|---|---|---|---|
| QCMA48-1 | 48 | 47 | M8 | 197 | 75 |
| QCMA60-1 | 60 | 51 | M8 | 330 | 160 |
| QCMA70-1 | 70 | 60.5 | M10 | 608 | 210 |
| QCMA75-1 | 75 | 61.5 | M10 | 632 | 250 |
| QCMA80-1 | 80 | 61.5 | M10 | 821 | 300 |
| QCMA90-1 | 90 | 61.5 | M10 | 899 | 380 |
| QCMA100-1 | 100 | 68.5 | M12 | 1230 | 430 |
| QCMA120-1 | 120 | 68.5 | M12 | 1510 | 480 |
* Tested at room temperature on a 10mm polished Q235B steel plate at 80mm/min pull speed. Actual force may vary ±10% based on environmental conditions.
Household & Outdoor Retrieval: Swiftly recover lost keys, coins, or tools from grass, sand, or shallow water.
DIY Projects: Secure or retrieve metal components in woodworking, automotive repairs, or hobbyist tasks.
Machinery Maintenance: Quickly locate and retrieve dropped screws, bolts, or small parts in production lines, reducing downtime.
Underwater Recovery: Extract ferrous objects (pipes, machinery, debris) from rivers, lakes, or marine environments when paired with specialized ropes/hooks.
Construction Sites: Retrieve metal waste or tools from debris piles, improving site safety and material recycling.
Brittleness Caution: NdFeB magnets are hard but brittle; avoid collisions to prevent fragmentation. Use protective gloves to handle strong attraction forces.
Environmental Risks: Keep away from explosive environments (risk of sparking) and sensitive electronics (e.g., pacemakers, magnetic storage devices).
Transportation: For air freight, follow IATA Dangerous Goods Regulations (Packing Instruction 953) to prevent interference with other cargo.
Consistent breakaway force data ensures accuracy for professional and industrial standards.
Steel housing protects the magnet from rust, impacts, and wear, extending service life.
Standard models are readily available, alongside OEM/ODM services for bespoke dimensions, coatings, or threaded specifications.
All A-1 Series Fishing Magnets are manufactured adhering to strict quality control processes (ISO-certified).
Contact us for: Detailed technical datasheets | Bulk pricing for industrial orders | Customized magnetic solutions
Experience the Power of Precision Retrieval – A-1 Series. Engineered for Strength, Designed for Efficiency.
These magnets are constructed using high-grade Neodymium-Iron-Boron (NdFeB) rare-earth magnets for the inner core, encased in a durable Q235 low-carbon steel outer housing to resist impact and corrosion.
The breakaway force ranges from 75 kg (for the compact QCMA48-1 model) up to 480 kg (for the heavy-duty QCMA120-1 model), measured under standardized testing conditions.
Yes. Thanks to the protective Q235 steel casing, the A-1 Series is well-suited for retrieving ferrous objects from underwater environments like rivers, lakes, and oceans when paired with proper recovery ropes.
Due to the strong magnetic fields, always wear protective gloves. Avoid letting the magnets slam together as NdFeB material is brittle and can chip. Keep them away from pacemakers, magnetic storage, and explosive environments.
Yes, OEM/ODM customization is available. Standard models feature M8, M10, or M12 threads, but custom configurations, sizing, and specialized coatings can be tailored to meet your project specifications.
For air freight, the magnets must be packed and shielded in compliance with IATA Dangerous Goods Regulations (Packing Instruction 953) to ensure they do not interfere with aircraft navigation systems.
