Precast Concrete Lifting Sockets are a widely used lifting system in the precast concrete industry. They are primarily used for stripping, transporting and placing precast concrete components such as wall panels, beams, slabs and other structural or architectural elements. Lifting sleeves are used as embedded or prefabricated components to provide a safe and secure attachment point for lifting equipment such as hooks, clamps or shackles.

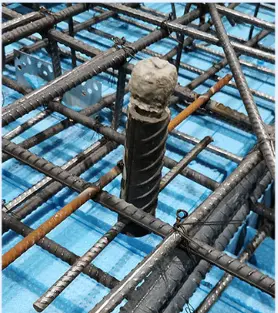

Steel Threaded Lifting Socket Application Scenarios
◈ Function
The main function of Precast Concrete Lifting Sockets is to enable safe and efficient vertical lifting of precast concrete elements. They are used in conjunction with lifting elements (e.g. slings or hooks) to facilitate the precise handling and positioning of the components during the construction process.
◈ Product Parameters
Steel Threaded Lifting Socket Dimensions
| Specification |
D (mm) |
S (mm) |
L (mm) |
L (mm) |
L (mm) |
| M12 |
20 |
30 |
75 |
100 |
- |
| M14 |
22 |
40 |
80 |
100 |
- |
| M16 |
25 |
40 |
80 |
150 |
200 |
| M20 |
32 |
40 |
100 |
150 |
200 |
| M24 |
36 |
50 |
150 |
200 |
250 |
| M27 |
40 |
50 |
200 |
300 |
- |
◈ Features and Advantages
✔
Versatile design for different lifting needs and application scenarios.
✔
Simple structure, easy to install, can be used with standard threaded rods to ensure reliable connection.
✔
High durability to withstand heavy loads while remaining secure.
✔
Specialized designs like Round Head Spike Systems for quick hooking and efficiency.
◈ Operational Use
Pre-bury the lifting sleeve into the concrete during the production phase of the precast element.
When lifting is required, connect the lifting equipment (e.g. hook or sling) to the lifting sleeve.
Ensure the connection is secure, then carry out the vertical lifting operation to the specified location.
After completing the installation, dismantle the lifting equipment and prepare for subsequent construction.
Note: The correct selection and use of lifting sleeves is essential to ensure construction safety. The appropriate sleeve should be selected based on component weight and dimensions, referencing technical data to ensure compliance with safety standards.
Frequently Asked Questions
Q1: What materials are typically used for Precast Concrete Lifting Sockets?
A: Most sockets are made from high-grade carbon steel or stainless steel, often zinc-plated or galvanized to provide excellent corrosion resistance.
Q2: Can these lifting sockets be reused after installation?
A: No, these sockets are designed to be permanently embedded in the concrete component. The lifting loops or bolts used to connect to them, however, are often reusable.
Q3: How do I choose the correct socket size for my project?
A: Selection depends on the weight of the concrete element, the angle of the lift, and the specific load capacity (WLL) required by engineering standards.
Q4: Are these sockets compatible with standard lifting hooks?
A: Yes, they are designed with standard metric threads (like M12, M16, M24) to fit standard lifting eyes and threaded lifting equipment.
Q5: What is the benefit of the Round Head Spike System?
A: It features a specialized spherical end that allows for faster attachment and disconnection of lifting clutches, improving efficiency during transport.
Q6: Do lifting sockets require specific maintenance?
A: Once embedded, they require no maintenance. However, before lifting, the internal threads should be checked to ensure they are free of concrete slurry or debris.
