| Model | Dimension (mm) | Cover material | Net weight (kg) | Attractive force (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | L1 | L2 | L3 | H1 | H2 | H3 | S | ||||
| Model-600 | 210 | 60 | 40 | 92.5 | 71.5 | 40 | 74 | 65 | – | M12 | S304 | 1.9 | 600 |
| Model-800 | 210 | 62 | 54 | 85 | 85 | – | 88 | 79 | – | M12 | Q235 | 2.8 | 800 |
| Model-900 | 210 | 62 | 54 | 85 | 85 | – | 88 | 79 | – | M12 | Q235 | 3.0 | 900 |
| Model-1000A | 200 | 98 | 40 | 99.5 | 67.5 | 50 | 75 | 65 | 10 | M12 | S304 | 2.8 | 1000 |
| Model-1000B | 240 | 68 | 54 | 90 | 90 | – | 88 | 79 | – | M12 | Q235 | 3.2 | 1000 |
| Model-1800A | 260 | 120 | 60 | 112 | 112 | – | 94 | 85 | – | M16 | S304 | 5.7 | 1800 |
| Model-1800B | 260 | 120 | 60 | 112 | 112 | – | 94 | 85 | – | M16 | Q235 | 6.3 | 1800 |
| Model-2100A | 320 | 120 | 60 | 136 | 136 | – | 94 | 85 | – | M16 | S304 | 7.3 | 2100 |
| Model-2100B | 320 | 120 | 60 | 136 | 136 | – | 94 | 85 | – | M16 | Q235 | 7.4 | 2100 |
| Model-2400A | 320 | 120 | 60 | 136 | 136 | – | 94 | 85 | – | M16 | S304 | 7.5 | 2400 |
| Model-2400B | 320 | 120 | 60 | 136 | 136 | – | 94 | 85 | – | M16 | Q235 | 7.6 | 2400 |
| Model-3000 | 320 | 160 | 60 | 136 | 136 | – | 94 | 85 | – | M16 | Q235 | 10.6 | 3000 |

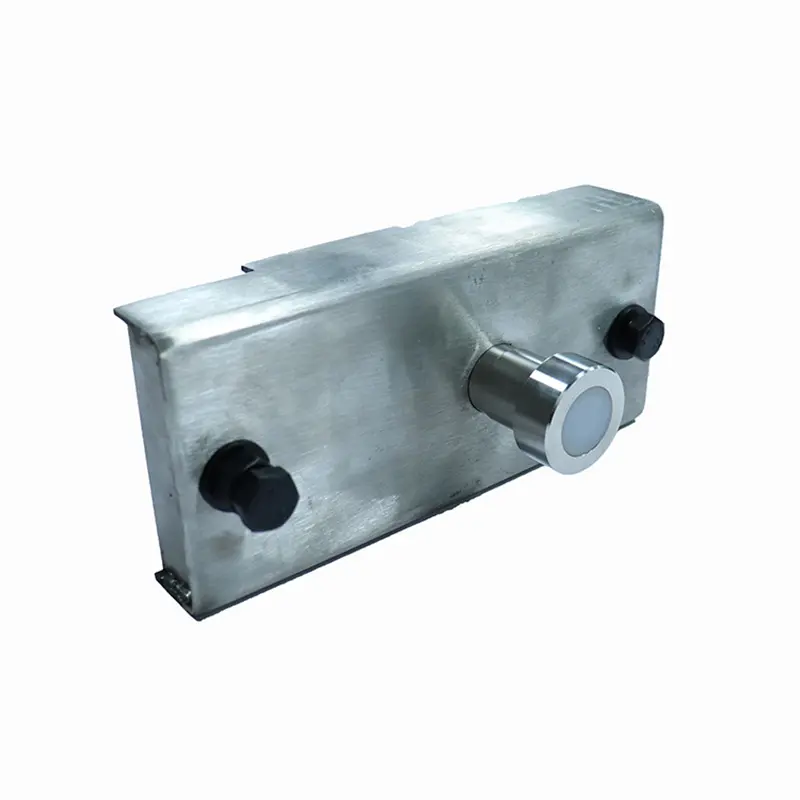

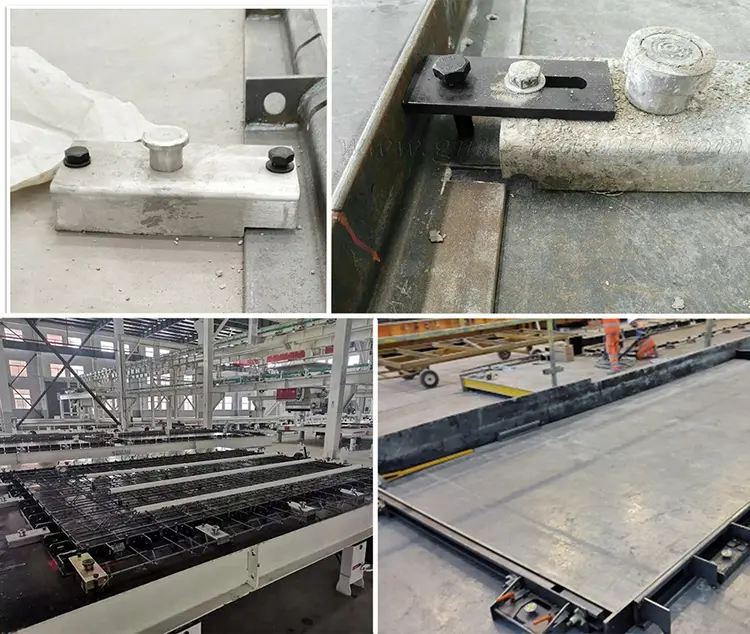

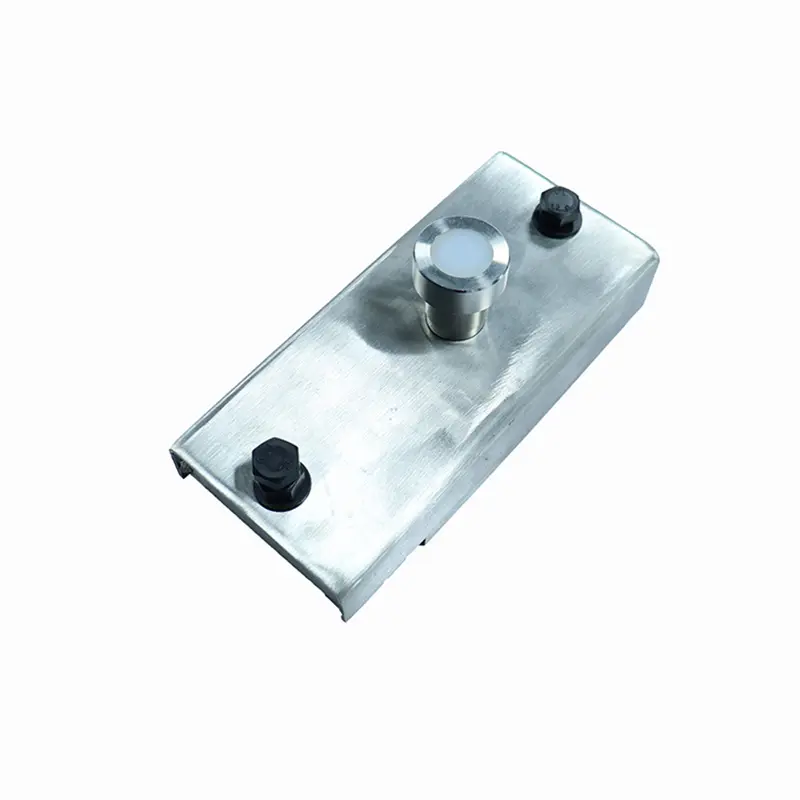

This specific neodymium magnet provides an adhesive vertical pulling force of 1300 kg (2800 lbs), making it ideal for securing heavy or large side moldings and formwork systems.
It replaces traditional, destructive screw anchoring methods. It is easy to position, adjust, and remove, which increases productivity, protects formwork tables from damage, and reduces overall labor costs.
Yes, these magnets feature high-temperature resistance and will not demagnetize during steam curing processes, ensuring they remain reliable on fast-paced assembly lines.

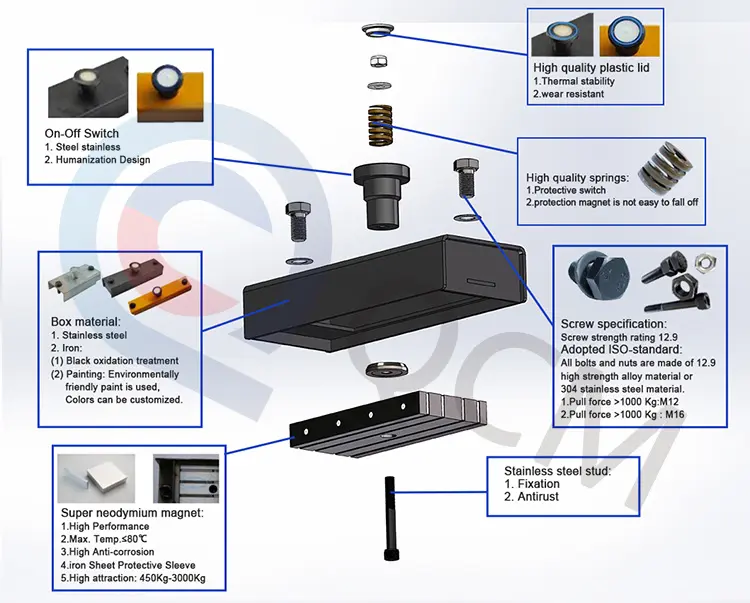

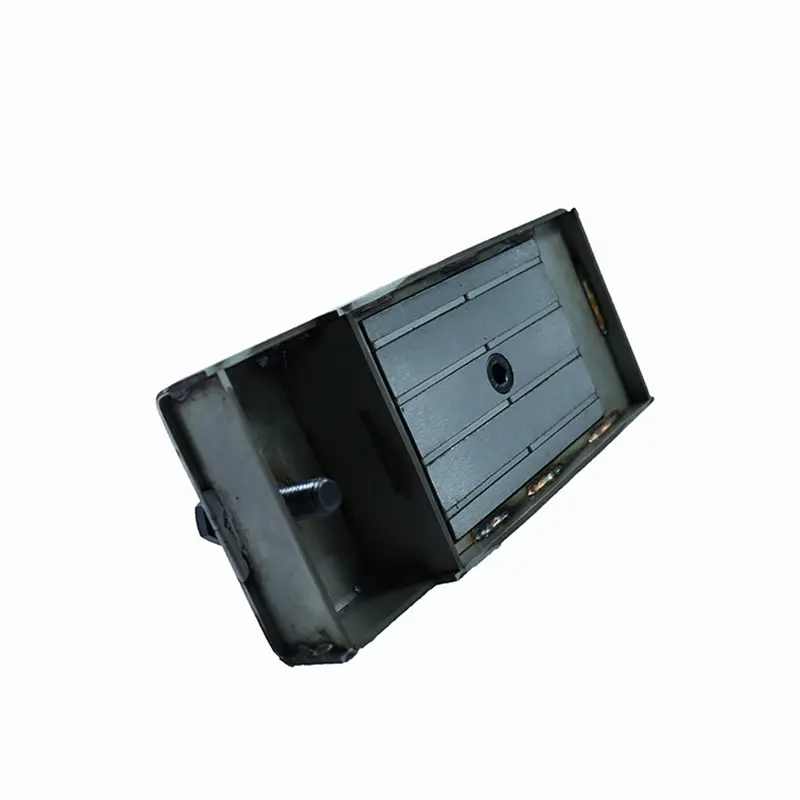

The magnets consist of high-performance neodymium magnet blocks protected by a robust steel casing. Typical cover materials include durable Stainless Steel (S304) or Carbon Steel (Q235) to resist wear and corrosion.

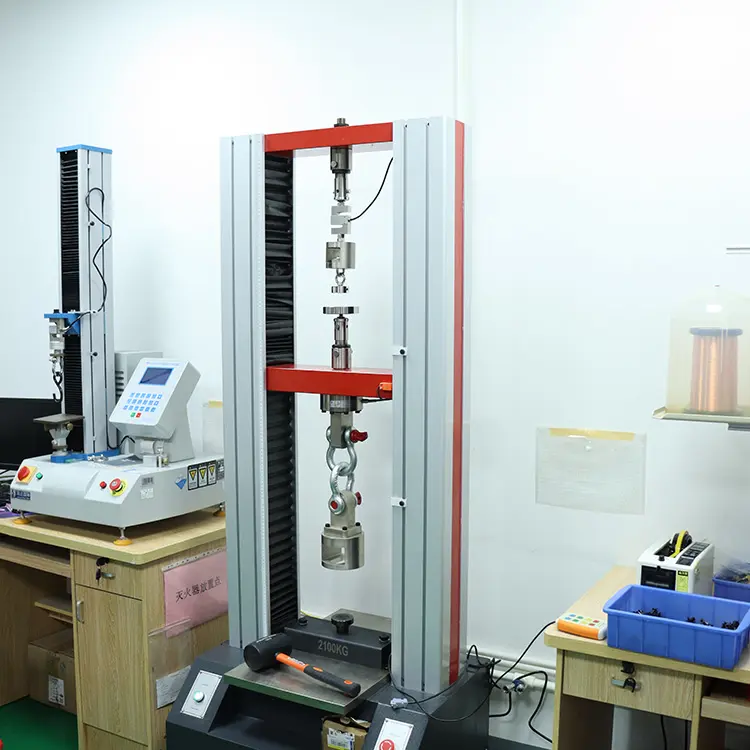

Each magnet box undergoes strict verification using specialized pull force test equipment to ensure it consistently meets or exceeds its rated adhesive capacity (e.g., 600 kg up to 3000 kg) before deployment.
