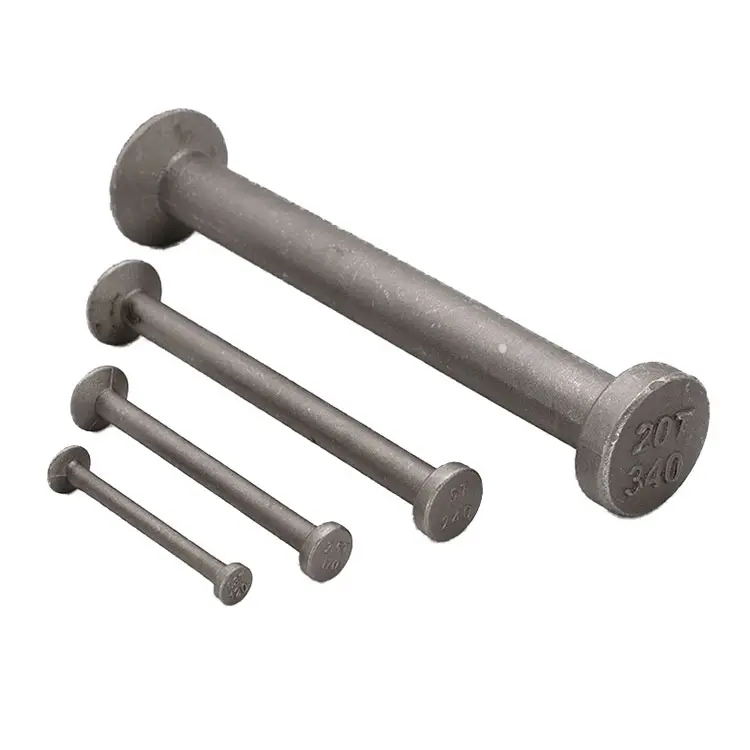

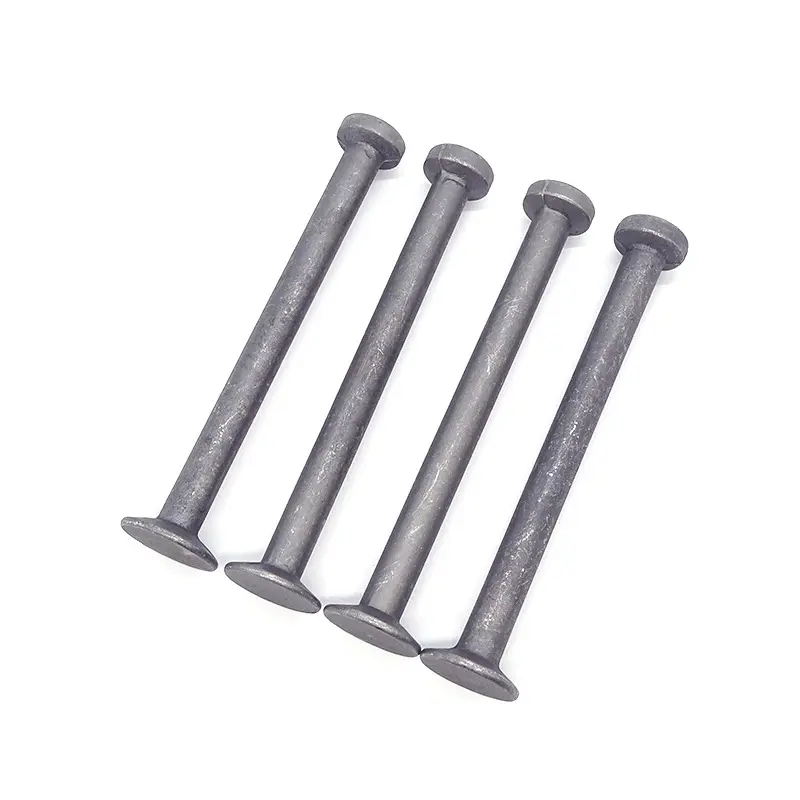

Concrete lifting anchors are specialized devices designed for the safe lifting and handling of precast concrete elements. They play a crucial role in construction, particularly in the transportation and installation of heavy concrete components.
Types of Concrete Lifting Anchors
🔗 Socket Lifting Anchors
These include systems like the HD and HA socket anchors, which are used for thin precast concrete elements. They are made of tempered steel and can handle significant loads, with capacities reaching up to 250 kN. The design typically features a threaded sleeve into which a lifting device is attached for transportation.
🛠️ Utility Anchors
These versatile anchors are commonly used for stripping precast elements from forms and during transport. They are designed to be embedded in concrete during casting, ensuring they can withstand the forces exerted during lifting.
🏗️ Specialized Anchors
Various designs exist for specific applications, such as the Amifast Erection Head Anchor, which is tailored for thin-walled precast elements. This anchor type can accommodate both tension and shear loads, helping to prevent damage to the concrete during lifting.

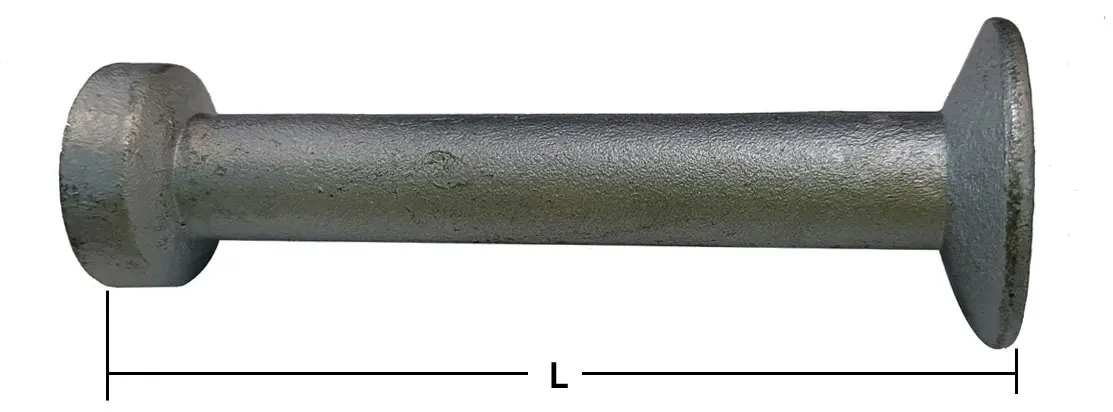

| Model |
L (mm) |
Load Capacity (T) |
| 1.3 |
120 |
1.3 |
| 2.5 |
170 |
2.5 |
| 5 |
240 |
5 |
| 10 |
340 |
10 |
Functionality and Usage

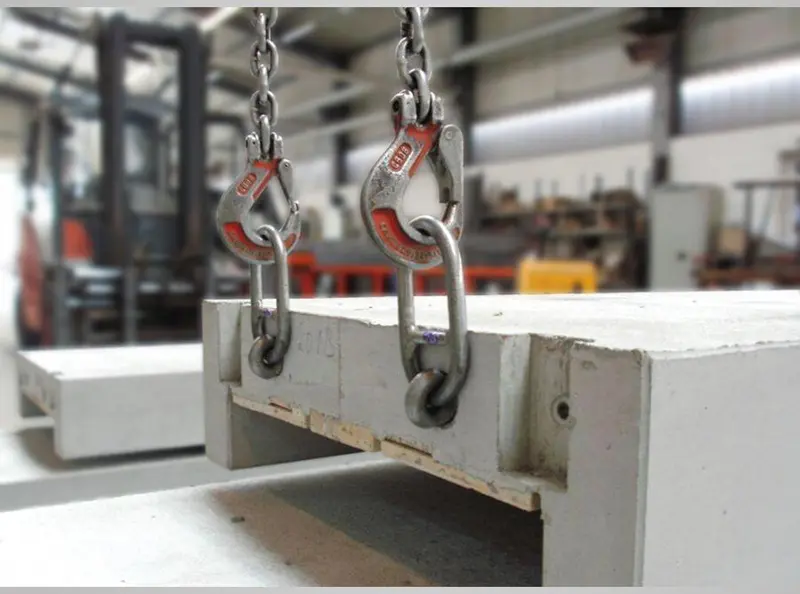

Concrete lifting anchors are embedded in the concrete during the casting process. Proper placement is vital for ensuring that they can effectively handle the loads they will encounter during lifting operations.
Load Distribution
Anchors are designed to distribute loads evenly across the concrete element to prevent spalling or cracking.
Safety Factors
Most lifting anchors are engineered with safety factors in mind, often exceeding industry standards to ensure reliability under load.
Installation
Correct installation is critical; anchors must be positioned accurately within the formwork before pouring concrete to ensure they are securely integrated into the finished product.
Benefits of Using Concrete Lifting Anchors
Efficiency
They facilitate faster handling and installation of precast elements, significantly reducing construction time.
Safety
Designed with high safety factors, these anchors help prevent accidents during lifting operations.
Versatility
Different types of anchors can be used for various applications, from lifting panels to handling complex structures like wind turbine towers.
In summary, concrete lifting anchors are essential tools in modern construction, enabling safe and efficient handling of precast concrete components while ensuring structural integrity throughout the process.
Frequently Asked Questions
What are concrete lifting anchors?
They are specialized devices embedded in precast concrete elements to facilitate safe lifting, transportation, and installation.
Why is load distribution important for lifting anchors?
Proper load distribution ensures that the tension and shear forces are spread evenly across the concrete, preventing cracking or structural failure.
What materials are socket lifting anchors made of?
They are typically manufactured from high-quality tempered steel to provide the strength necessary to handle loads up to 250 kN.
When should lifting anchors be installed?
They must be accurately positioned and secured within the formwork before the concrete is poured to ensure they become a permanent, secure part of the element.
Can these anchors handle shear loads?
Yes, specialized designs like the Erection Head Anchor are specifically engineered to accommodate both tension and shear loads during the lifting process.
What is the main benefit of using precast lifting anchors?
The main benefits include significantly increased construction efficiency and enhanced site safety by following engineered lifting standards.
