The 4,000 lbs (1,800 kg) pull-force shuttering magnet is a powerful tool for precast concrete production, providing over 250 times its weight in magnetic force for stable formwork. It is suitable for various concrete structures and sizes, featuring a robust magnetic field system for enhanced efficiency. The magnet is easy to install, reusable, and designed with rounded edges to prevent damage to surfaces. Maintenance involves keeping the surface clean and lubricated while avoiding liquids to prevent rust. This magnet is an economical and reliable solution for improving productivity in concrete element manufacturing.
The 4000 lbs(1800 kg) pull force shuttering magnet, also known as the 1800 kg vertical tension precast concrete magnet, is commonly used in the production of precast concrete elements. These shuttering magnets can efficiently hold formwork in place, improving construction efficiency and ensuring the stability of the formwork during the concrete pouring process due to their strong magnetic properties. shuttering magnets are widely used in a variety of precast concrete structures and construction projects, including but not limited to the production of concrete wall panels, columns, beams and other concrete elements.
Product Description
The 4,000 lbs (1,800 kg) pull-force shuttering magnet is designed to secure large steel precast concrete platforms. It generates a magnetic force exceeding 250 times its own weight, ensuring efficient and stable formwork during precast concrete pours. Additionally, the precast magnet features an on/off system that allows for easy activation and deactivation of the magnetic field. Utilizing this magnetic box can significantly reduce working time and costs while increasing production capacity by up to a factor of seven, all under the same manual conditions.
The 1,800 kg precast magnets are designed for easy installation and operation, enabling the secure attachment of concrete formwork in various shapes and sizes on steel platforms. They offer excellent suitability and reusability for many years, provided they are used correctly. The magnetic shuttering has been specifically engineered to meet the needs of the construction industry, featuring rounded edges that enhance compatibility with a wide range of components. Additionally, these magnets cause virtually no wear or scratches to the steel platforms, thereby preventing damage and reducing maintenance costs.
In terms of maintenance, care needs to be taken to keep the suction surface of the PRECAST WALL PRODUCTION MAGNET clean and flat, and if it is not used for a long period of time, it should be oiled to prevent rusting. Also, the use of liquids and water to clean inside and outside of precast concrete shuttering magnets should be avoided to prevent rusting. When in use, Shuttering Magnets for Precast should be kept away from instruments, electronic equipment or other ferrous materials that are susceptible to magnetism to prevent detachment after attachment.
The 4000 lbs(1800 kg) pull force shuttering magnet is an efficient, reliable and economical precast concrete production aid for a wide range of concrete components that can significantly improve productivity and quality. The economical carbon steel housing effectively shields and protects the magnetic core inside. All bolts and nuts are made of 12.9 grade high-strength alloy material or 304 stainless steel, which can be easily connected to different shapes of external fixtures to better hold the side molds.

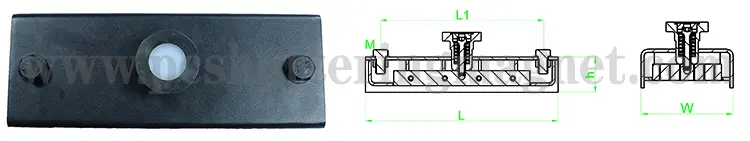

1800 kg precast concrete Shuttering magnet specification sheet
Model
L(mm)
L1(mm)
W(mm)
h(mm)
M
Breakaway(kg)
Model-450
170
135
60
43
M12*30
450
Model-600
170
142
60
43
M12*30
600
Model-900
280
244
60
43
M12*30
900
Model-1600
290
240
120
60
M16*30
1600
Model-1800
320
270
120
60
M16*30
1800
Model-2100
320
270
120
60
M16*30
2100
Model-2400
320
270
120
60
M16*30
2400
Application of shuttering magnet

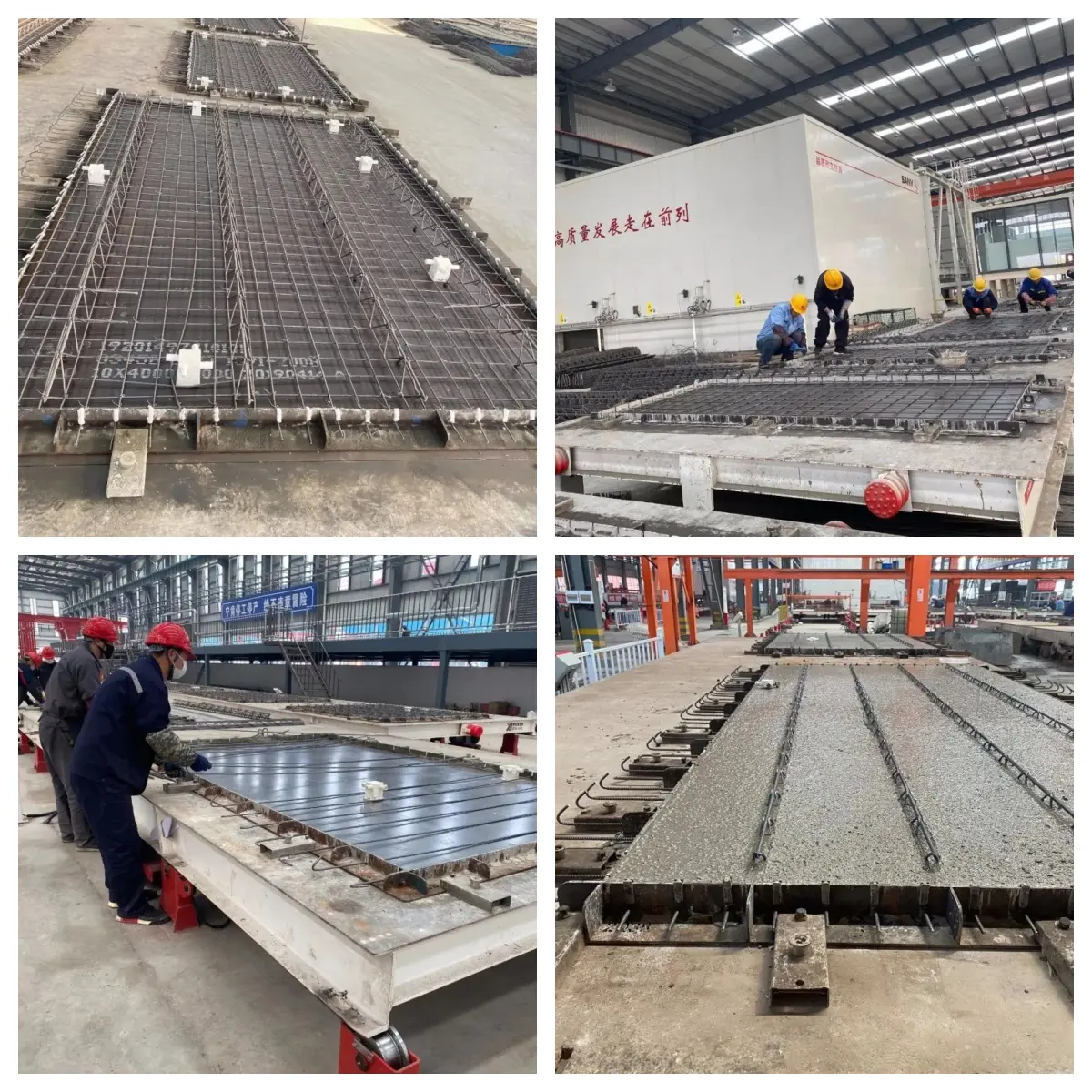

Application scenario diagram of shuttering magnet
Shuttering Magnet Product Quality Control
Raw materials are inspected by experienced personnel, including size, material, weight, magnetic properties (coercivity (Hcb) and endowed coercivity (Hjc)) and other indicators.
Each core material is sourced from top suppliers in the industry to ensure quality and service.
We cooperate with many third-party inspection organizations to conduct regular and irregular material analysis and inspection.
We have introduced automatic laser cutting beds and precision equipment to improve production accuracy and efficiency.
All our products are deeply processed in our own factories without outsourcing processing to ensure the quality and process can be controlled.
All orders of less than 50 pieces are fully inspected, and for orders over 50 pieces, the sampling ratio is 12%.
We have accurate magnet vertical tension test instruments, which can ensure the accuracy of magnet tension test.
