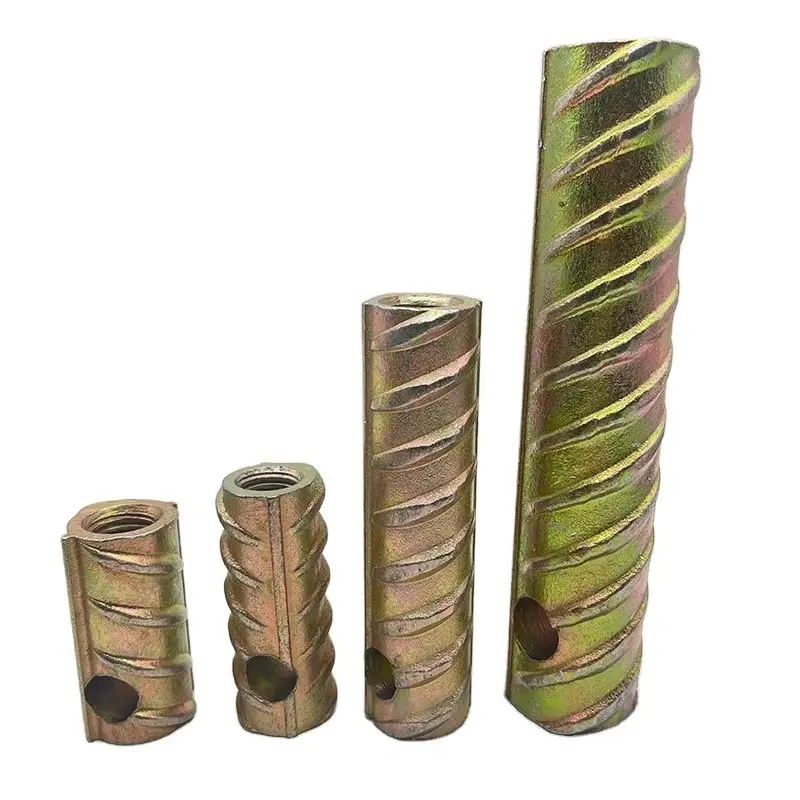

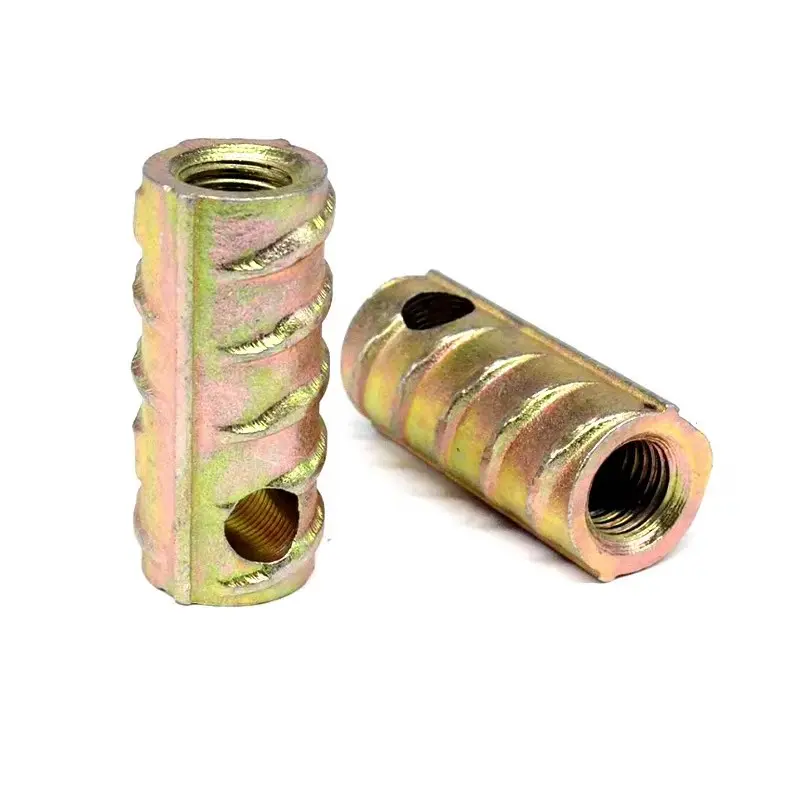

The Steel Threaded Lifting Socket for Magnetic Recess Former is a premium lifting accessory designed to work seamlessly with Magnetic Recess Formers. It is engineered specifically for the safe lifting and handling of precast concrete components. Manufactured from high-strength rebar, these fittings feature integrated threads, ensuring a perfect fit with lifting anchors and magnetic systems.
The primary purpose of Precast Concrete Lifting Sockets is to facilitate safe and efficient vertical lifting of precast elements. By integrating with lifting components like slings or hooks, they allow for precise handling, rotation, and positioning of heavy concrete units during the entire construction workflow.
| SIZE (mm) |
Out Diameter (mm) |
Length (mm) |
Pitch (mm) |
N.W (KG) |
PACKING (NOS/BAG) |
BAG WEIGHT (KG) |
| 16 | 24 | 42 | 2.5 | 0.092 | 250 | 23 |
| 18 | 27 | 45 | 2.5 | 0.136 | 200 | 27.2 |
| 20 | 30 | 50 | 2.5 | 0.159 | 132 | 20.98 |
| 22 | 33 | 54 | 2.5 | 0.21 | 121 | 25.41 |
| 25 | 38 | 62 | 3 | 0.34 | 80 | 27.2 |
| 28 | 42 | 68 | 3 | 0.46 | 56 | 25.76 |
| 32 | 48 | 76 | 3 | 0.633 | 42 | 26.58 |
| 36 | 53 | 84 | 3 | 0.905 | 27 | 24.43 |
| 40 | 59 | 95 | 3 | 1.16 | 25 | 29 |

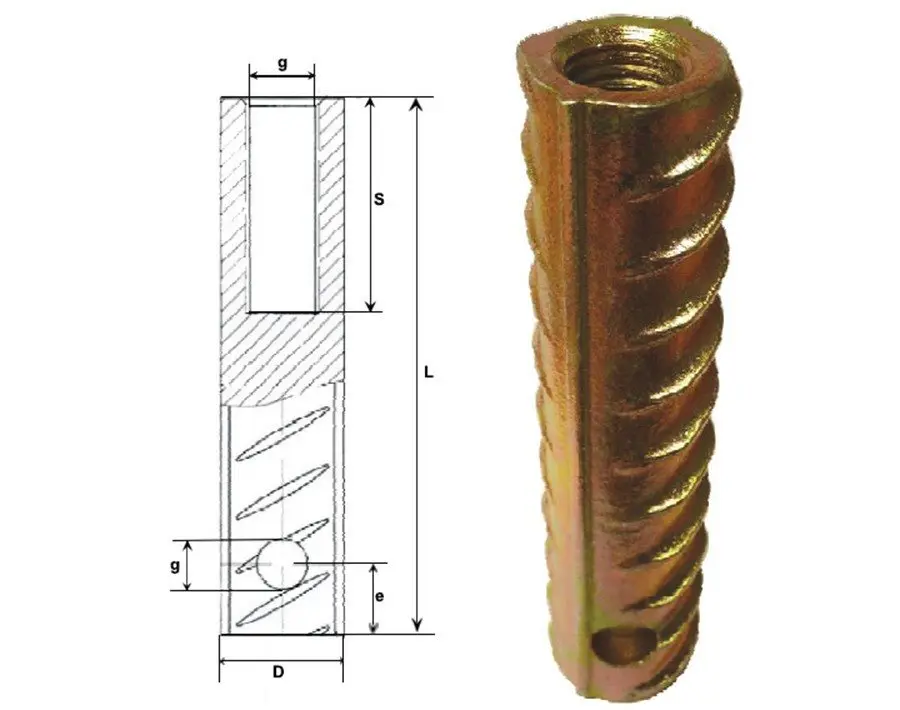

Dimension Specifications Chart
✓
Strong Magnetic Adsorption: Guarantees exceptional stability and safety during high-load lifting operations.
✓
Built-in Threaded Design: Allows for quick and easy connection with various lifting accessories.
✓
High-Strength Durability: Manufactured from premium steel to ensure long-term reusability and resistance to wear.
✓
Cost-Effective & Eco-Friendly: Reusable design reduces material waste and lowers overall project costs.
✓
Corrosion Resistance: Available in galvanized or rubber-coated finishes to withstand harsh environmental conditions.
Application Diagram of Steel Threaded Lifting Socket
Insert lifting anchors (such as T-anchors) equipped with rubber washers into the specific holes of the magnetic notch formers.
Securely attach the Magnetic Recess Former to the metal mold at the designated position.
Pour the concrete into the mold, perform vibration to remove air pockets, and wait for the concrete to fully harden.
During the demolding process, the Magnetic Recess Former is removed along with the mold wall, while the lifting anchors remain securely cast within the precast element.
In conclusion, the Steel Threaded Lifting Socket for Magnetic Recess Former is a vital component in modern precast concrete production, offering an efficient, safe, and highly economical solution for heavy-duty handling.
Frequently Asked Questions
What materials are these lifting sockets made from?
They are manufactured from high-strength rebar and premium steel to ensure maximum load-bearing capacity and durability.
Are the lifting sockets reusable?
Yes, the sockets are designed for durability and reusability, which helps in reducing construction costs and environmental impact.
What surface treatments are available for corrosion protection?
We offer various finishes including galvanized coating and rubber coating to enhance resistance against rust and corrosion.
Can these sockets be used with all types of precast concrete?
They are highly versatile and suitable for most precast concrete elements, provided the size and load requirements match the specifications.
How does the magnetic adsorption benefit the process?
The strong magnetic adsorption ensures that the socket and recess former remain perfectly stable during the pouring and vibration of concrete, preventing displacement.
What is the function of the rubber washer in the installation?
The rubber washer helps to seal the connection and hold the lifting anchor securely in place within the magnetic recess former during the casting process.
