Precast Concrete Formwork Clamps For Shuttering Magnet is a magnetic clamp specifically designed to hold formwork in place during precast concrete production. These magnetic clamps are typically made of high-performance neodymium-iron-boron permanent magnets, which provide a strong suction force to ensure that the formwork is held securely on the steel formwork table during concrete placement and vibration.
📊 CARBON STEEL MAGNETIC BOX SPECIFICATIONS
| Item No |
Adhesive force |
Item size |
Net weight |
| QCM-450 |
450KG |
17*6*4cm |
1.8KG |
| QCM-900 |
900KG |
28*6*4cm |
3.0KG |
| QCM-1350 |
1350KG |
32*9*6cm |
6.0KG |
| QCM-1800 |
1800KG |
32*12*6cm |
7.6KG |
| QCM-2100 |
2100KG |
32*12*6cm |
7.8KG |
| QCM-2500 |
2500KG |
32*12*6cm |
7.8KG |
🛠️ ROLE & FUNCTIONALITY
- Used to fix formwork for precast concrete elements, providing a simpler and faster fixing method than traditional mechanical fixing methods such as nuts and bolts.
- Quickly fixes the formwork system by means of a powerful magnetic force, increasing construction efficiency and reducing installation time (up to 70%).

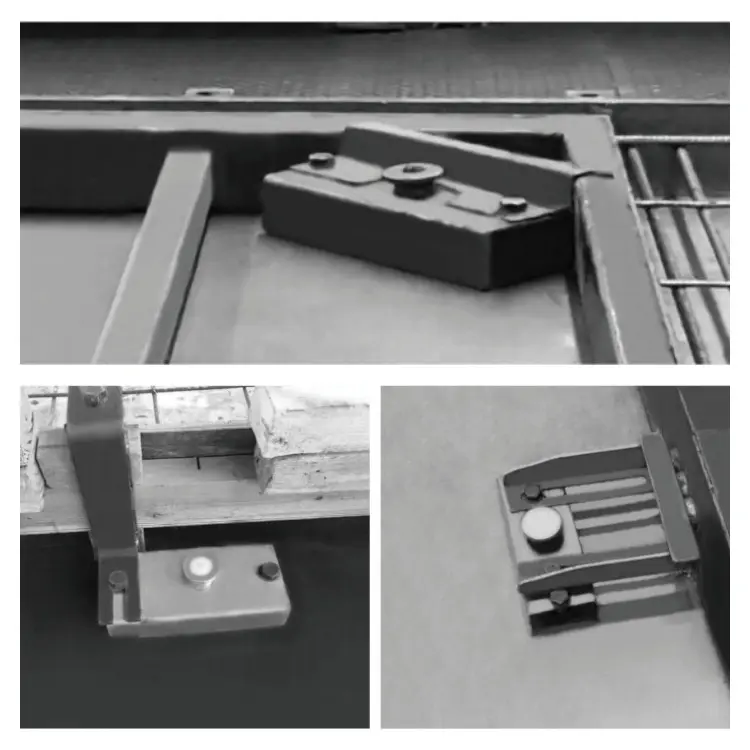

Application of Precast Concrete Formwork Clamps For Shuttering Magnet
🏗️ USAGE SCENARIOS
- Used in the production of precast concrete structures, especially in the production of composite panels, wall panels, beams, columns or other specially shaped elements on fixed platforms.
- Suitable for the mass production of concrete elements of various shapes and sizes, capable of producing concrete elements of different shapes and sizes on the same steel workbench.
✅ FEATURES AND BENEFITS
- Easy Operation: Easy to install, easy and safe to operate, quick to build concrete formwork without special tools or welding.
- Cost Efficiency: Reduce labor cost, improve construction safety, avoid damage to the formwork table caused by welding or bolting.
- High Performance: Strong magnetic force, can provide long time magnetic holding, easy to operate, safe and reliable.
- Sustainability: Reusable, with long service life, good economy and short payback period.
- Versatility: Through the use of adapters, it can be adapted to different formwork shapes and heights, realizing flexible combination and fixing.

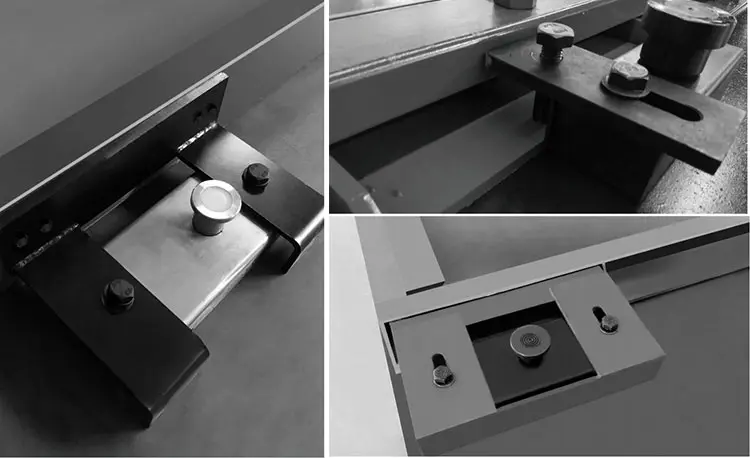

Applications of Shuttering Magnets with Adapters
Shuttering Magnets provide an efficient and cost-effective solution for the fixing of precast concrete forms through their powerful magnets and ease of operation, helping to improve productivity and the quality of the finished product.
Frequently Asked Questions
What is a Shuttering Magnet used for?
It is specifically designed to hold concrete formwork securely in place on a steel workbench during the production of precast concrete elements, replacing traditional bolting or welding.
How much time can I save using magnetic clamps?
Using shuttering magnets can reduce installation and removal time by up to 70% compared to traditional mechanical fixing methods.
Will these magnets damage my steel workbench?
No. Unlike welding or bolting, magnetic clamps do not require holes or heat, preserving the surface and extending the life of your steel formwork table.
Are the magnets reusable?
Yes, they are highly durable and designed for long-term reuse, providing a high return on investment and a short payback period.
Can they handle different shapes of concrete?
Absolutely. By using different adapters, these magnets can be adapted to various formwork heights and complex shapes like beams, columns, and wall panels.
What is the suction power of these magnetic boxes?
Depending on the model, the adhesive force ranges from 450KG to 2500KG, ensuring the formwork stays stable even during heavy vibration.
