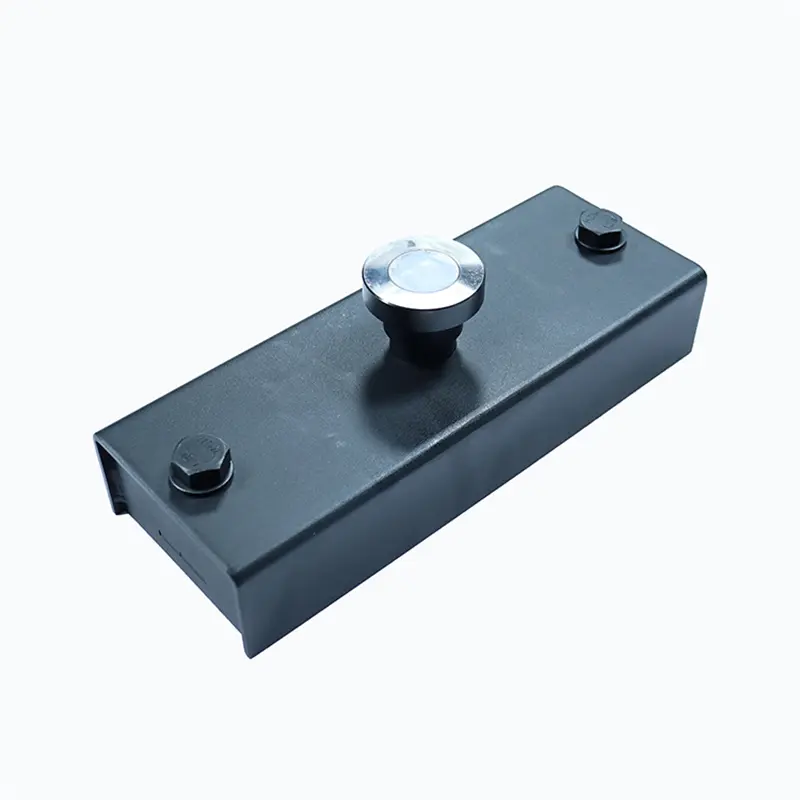

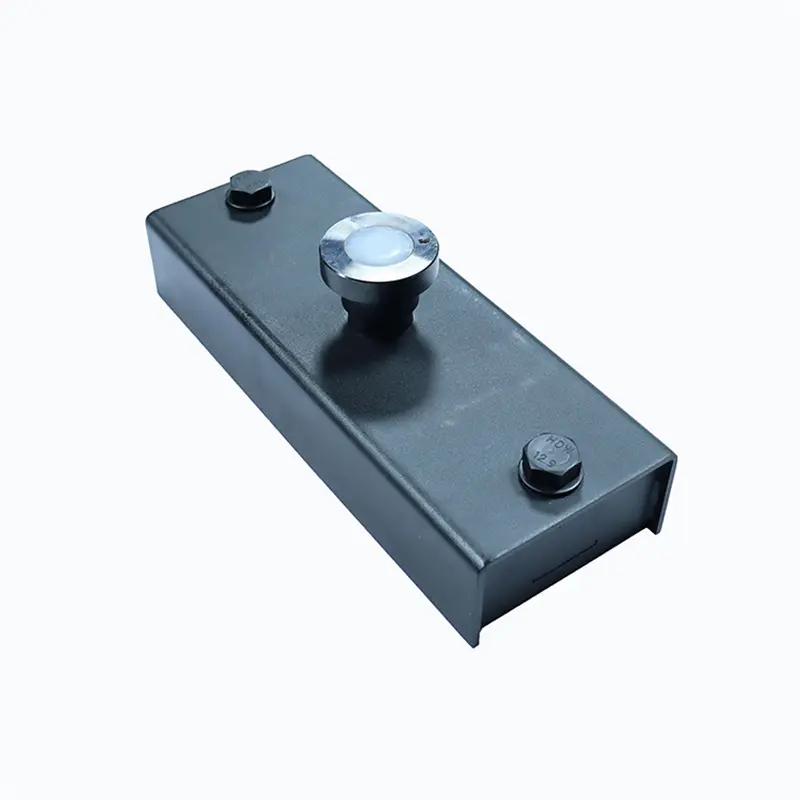

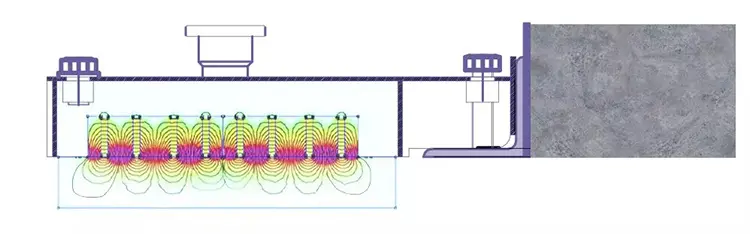

Safe and efficient formwork magnets have been proven in numerous precast concrete plants. Workers can rotate 3-4 magnet boxes (suction row of 1300 kg) up and place them on the steel table at the same time by hand. By pressing the button on the top of the box, the magnet block in the box is pushed down and seamlessly connected to the steel table. The prefabricated magnets emit enormous magnetic force that can firmly fix the concrete frame. As can be seen from the following picture, this is a precast concrete step magnet. Uniquely designed grooves are used to hold the frame edges.

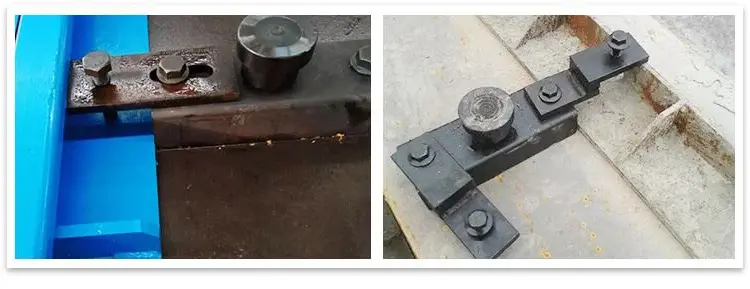

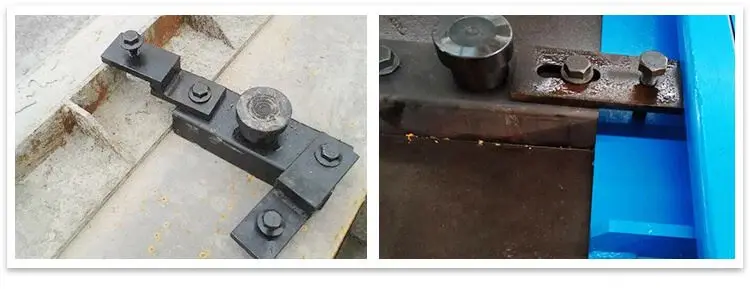

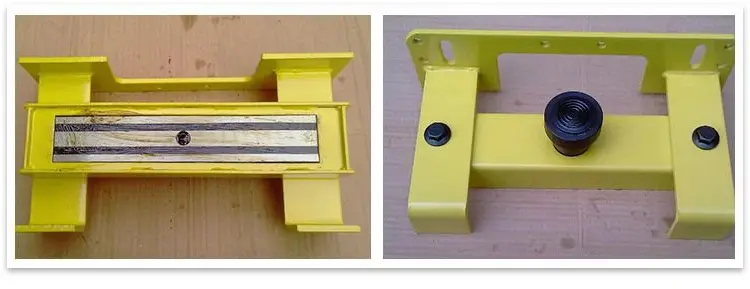

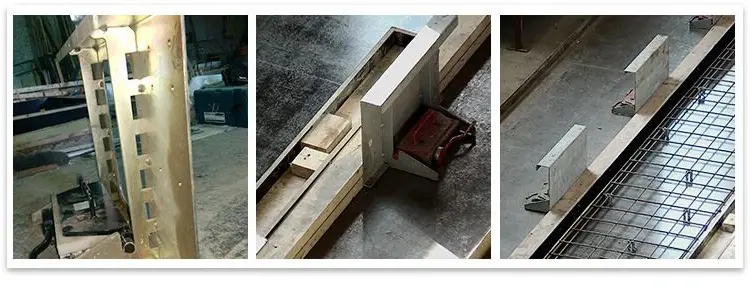

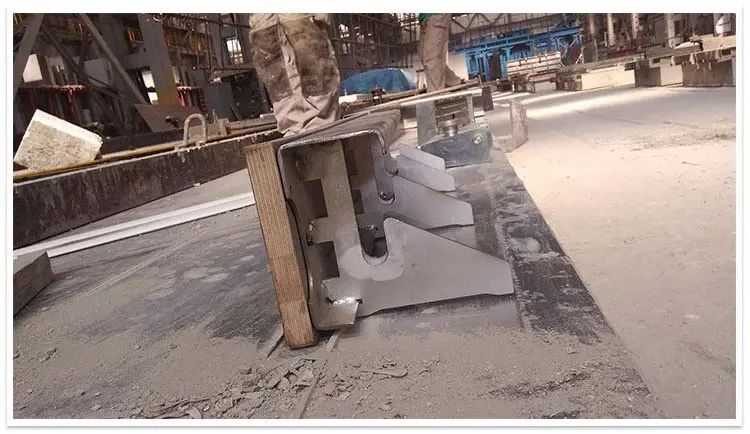

If you choose a product without step magnet, you can lock the adapter with the screws on the box and let the adapter fix the edge of the frame.

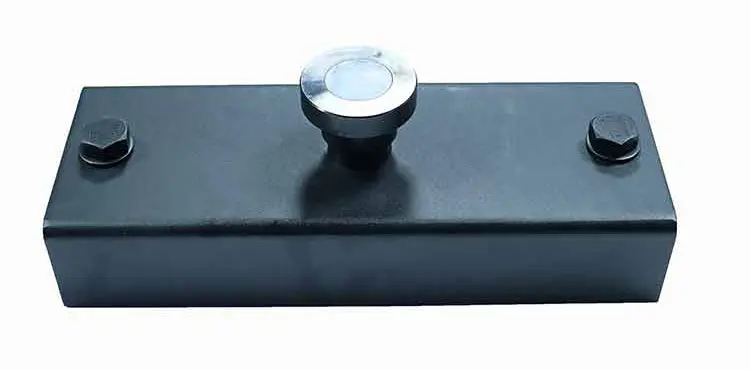

The main force of the new improved products is the 1600kg concrete formwork magnets, which have strong magnetic force, good reusability and durability. Beautiful appearance, carbon steel housing and ferrule provide double protection for fragile magnets. The magnet matrix consists of 16 permanent strong magnets (neodymium magnets), which amplify the power of the active magnets. It is suitable for all concrete frames, including steel or wooden formwork frames. Combined operation with the adapter is more flexible. The grade 12.9 screws used to connect the adapters have high hardness and tensile strength. Its Rockwell hardness (HRC) can be between 39 and 44 and its tensile strength can reach 1220 N/mm2. Thus, the screws ensure an inseparable connection with the adapter and provide a strong hold when producing precast concrete elements. The seamless design of the precast wall fabrication magnet is also a highlight of this product. Product designers strive to minimize gaps to prevent the ingress of small particles such as concrete, fine sand and iron filings during the production process.
| 1600Kg Precast Concrete Shuttering Magnet Specifications | |
|---|---|
|
|
| Name | 1600Kg precast concrete shuttering magnet |
| Material | Iron + Magnet |
| Size | 27 * 12 * 6 cm |
| Net Weight | 6.3 kg |
| Pull Force | ≥1600 kg |
| Application to Formwork Height | 100-220 mm |

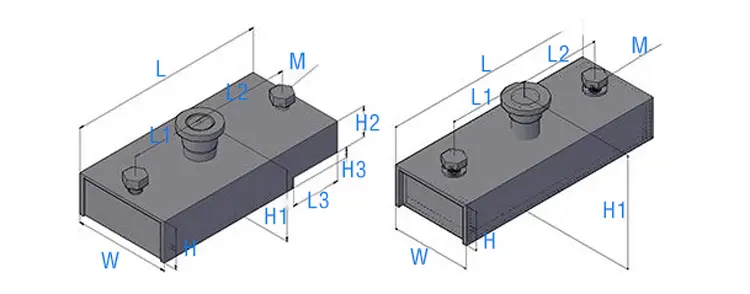

| Item | L (mm) | W (mm) | H (mm) | L1 (mm) | L2 (mm) | L3 (mm) | H1 (mm) | H2 (mm) | H3 (mm) | M | Pull Force (≥kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QCM-450 | 170 | 60 | 40 | 67.5 | 67.5 | -- | 73 | 66.5 | -- | M12 | ≥450 |
| QCM-600 | 170 | 60 | 40 | 67.5 | 67.5 | -- | 73 | 66.5 | -- | M12 | ≥600 |
| QCM-600B-Step | 200 | 60 | 40 | 72.5 | 97.5 | 42 | 73 | 66.5 | 10 | M12 | ≥600 |
| QCM-800B | 190 | 95 | 43 | 67 | 93 | 50 | 80 | 73.5 | 10 | M12 | ≥800 |
| QCM-900 | 280 | 60 | 40 | 122 | 122 | -- | 73 | 66.5 | -- | M12 | ≥900 |
| QCM-900B | 195 | 95 | 43 | 67 | 98 | 50 | 80 | 73.5 | 10 | M12 | ≥900 |
| QCM-1000B-Step | 200 | 95 | 43 | 67 | 100 | 50 | 80 | 73.5 | 10 | M12 | ≥1000 |
| QCM-1350 | 320 | 90 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥1350 |
| QCM-1350B-Step | 320 | 90 | 60 | 113 | 161 | 47 | 98 | 90 | 10 | M16 | ≥1350 |
| QCM-1300 | 210 | 95 | 45 | 80 | 90 | 40 | 73 | 65 | 10 | M16 | ≥1300 |
| QCM-1600 | 270 | 120 | 60 | 110 | 110 | -- | 98 | 90 | -- | M16 | ≥1600 |
| QCM-1800 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥1800 |
| QCM-2100 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥2100 |
| QCM-2400 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥2400 |
| QCM-2600 | 320 | 120 | 60 | 135 | 135 | -- | 98 | 90 | -- | M16 | ≥2600 |
