Full Grout Filled Sleeve for Precast Concrete Connection is a reinforcing bar connection technique used in precast concrete structures. This type of connection realizes the mechanical connection of reinforcement bars by filling high-strength grout inside the sleeve, thus providing structural continuity and integrity. It is widely used in construction, roads, bridges and other projects, especially for the connection of precast concrete elements.

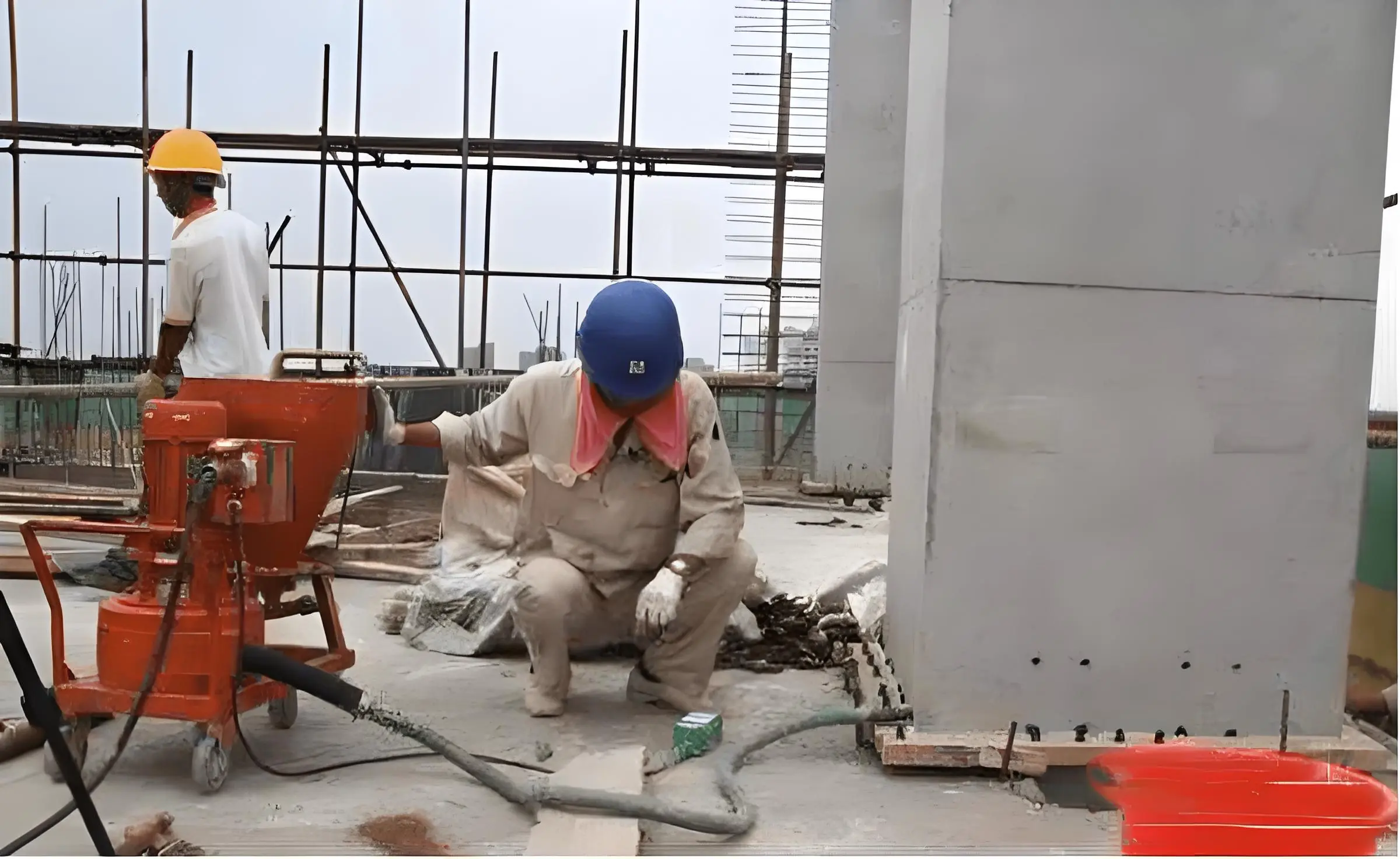

Workers are operating grouting
Role & Functions
✅
Provide structural continuity between precast concrete elements.
✅
Ensure the mechanical properties of reinforcement and realize full tension transfer.
✅
Adapt to different construction requirements and improve construction efficiency and quality.

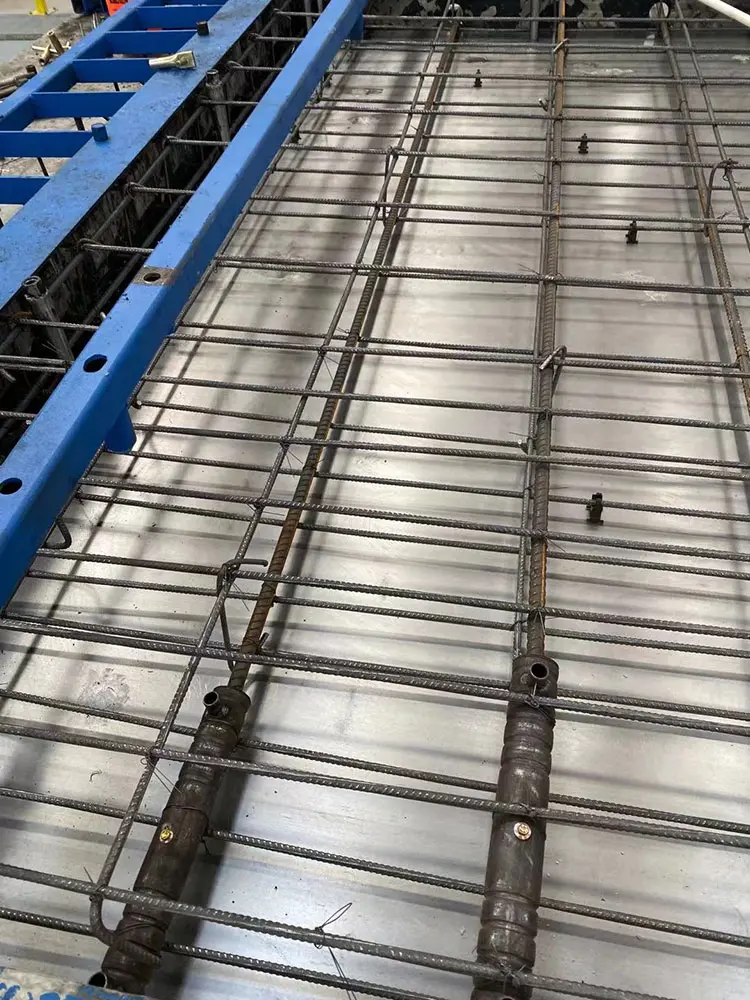

Application diagram of Full Grout Filled Sleeve
Product Model & Specifications
The Full Grout Filled Sleeve is available in a variety of models, such as the GTZQ4 series, including different sizes to accommodate different diameters of rebar (12mm to 40mm). Each model is available in different sizes such as L, L1, L2, L3, D, D1 and D2 to meet specific engineering requirements.

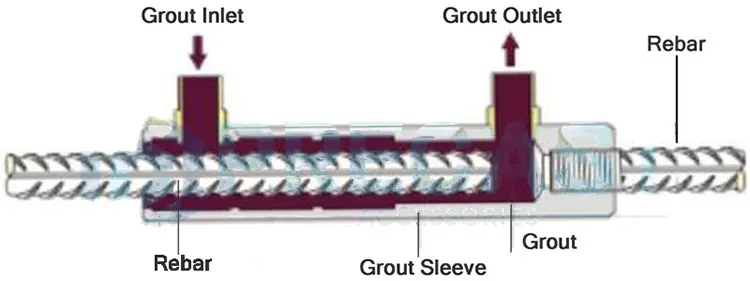

Structure diagram of Full Grout Filled Sleeve
Features and Benefits
1.
Full Rebar Breaking Performance: Capable of full tension transfer and rebar breaking in tensile testing.
2.
Convenience and Flexibility: Easy to use, high productivity and fast installation process.
3.
High Tensile and Yield Strength: Fully meets JGJ107, JG/T398 and other international standards.
4.
Environmental Protection: Safe connection process, friendly to the construction environment.
5.
Reliability: Performance depends on the high bond strength between reinforcement bars and grouting material, ensuring long-term structural safety.
Studies regarding the mechanical properties of the Full Grout Filled Sleeve at elevated temperatures, as well as experimental studies using Ultra High Performance Concrete (UHPC)-grouted sleeves for connecting large deformed reinforcement bars, have further validated the performance and application potential under various extreme conditions.
Frequently Asked Questions (FAQ)
What is the primary use of a Full Grout Filled Sleeve?
It is primarily used for the mechanical connection of reinforcement bars in precast concrete structures, ensuring structural continuity in buildings, bridges, and road projects.
What range of rebar diameters can these sleeves accommodate?
The standard GTZQ4 series accommodates rebar diameters ranging from 12mm to 40mm, with various models available to meet specific project needs.
Does the connection meet industry standards for tensile strength?
Yes, the Full Grout Filled Sleeve is designed to meet or exceed standards such as JGJ107 and JG/T398, ensuring high tensile and yield strength.
Is the installation process environmentally friendly?
Yes, the connection process is safe and designed to be environmentally friendly compared to traditional welding or other high-energy connection methods.
How is the reliability of the sleeve connection determined?
Reliability is based on the bond strength between the reinforcement bars and the high-strength grouting material, which ensures effective tension transfer even under heavy loads.
Can these sleeves be used with Ultra High Performance Concrete (UHPC)?
Yes, experimental studies have validated that UHPC-grouted sleeves are effective for connecting large deformed reinforcement bars, offering enhanced performance potential.
