The 2000 lbs(900kg) pull force precast magnet is a slim and powerful member of the magnet shuttering family, featuring a compact magnetic array with 8 neodymium iron boron magnets. Galvanized and protected by an iron ring, these magnets are neatly arranged and locked with screws, providing a vertical magnetic force ideal for producing 60-90mm thick wall panels. Activated by a button press or gentle tap, and released with a steel lever, this magnet is flexible and lightweight, offering high work efficiency and market competitiveness. Produced with advanced equipment and strict quality control, it comes with various certificates and is packaged with care for safe transportation, including anti-magnetic treatment for air freight.

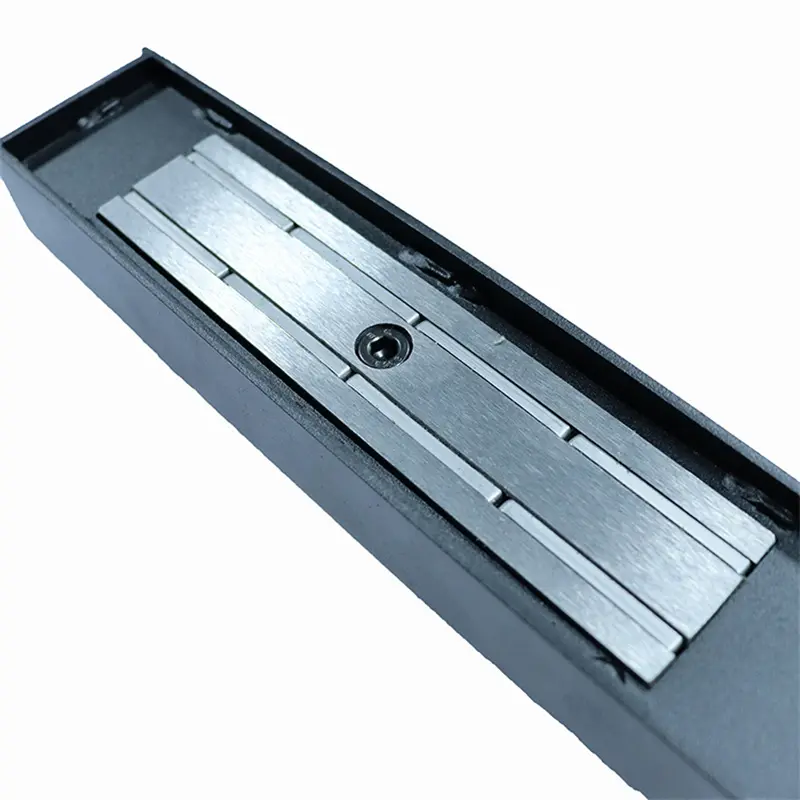

The precast magnets with a pulling force of 900 kg (2000 lb) are relatively small in the family of magnetic catches. The reason for this is the small size of the magnet assembly inside the box, which generates a vertical magnetic force of 900 kg (2000 lb). The magnet assembly consists of eight magnets made of neodymium-iron-boron material. The outer layer of the magnets is galvanized and fitted with a protective sleeve. The magnets are clearly arranged in groups of 4, divided into 2 groups, clamped on both sides with steel plates and interlocked with screws to form a magnetic field.
With a magnetic force of 900 kg (2000 lb), the locking magnets are ideal for the production of wall panels with a thickness of 60-90 mm. They are activated by pressing the button by hand or foot or by lightly tapping the button with a wooden or rubber mallet. To release the button, simply pull it upwards with a steel rod. It can be used on its own or screwed on both sides in conjunction with an adapter.
Product Parameters

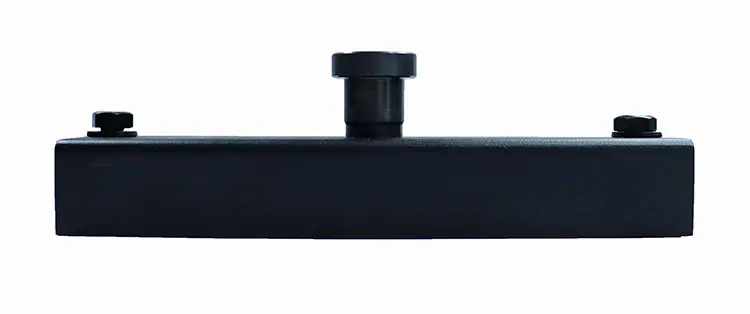

900kg Concrete Shutter Magnet
Name
precast concrete magnet/shuttering magnet
Item
QCM-900
Pull force
≥2000 lbs(900kg)
Net weight
2.7kg
Size
280x60x40mm
Material
N grade neodymium+steel shell+iron sheet
Load time
14-20 days, the fastest time 5-7days
Package
anti-magnet, carton, iron box
Certificate
ISO9001, ROHs, CE, TS16949, etc
Application
Construction build, Industrial magnet
Payment Type
Wire transfer, western union, paypal
Transportation
By sea, by air, by express
To prevent the magnets from sticking to each other during transportation, the buttons are made of a magnetic imitation material. Fatigue durability simulation tests with over 100,000 cycles prevent any deformation or failure, so you can use them again and again. With a suction force of 900 kg, the locking magnet weighs just 2.7 kg, offering flexibility that cannot be achieved with larger prefabricated magnets. Skilled workers can use it to fasten concrete frames in a very short time, which significantly increases efficiency. The flexibility and lightness of the magnet gives it a strong position in the market.
We have worked hard to improve the yield by introducing fully automatic laser cutting machines from Europe, improving precision guide rails, bending machines and so on. We have mastered almost all the processes and equipment for the production of stamped magnets, strengthened internal quality and process control, quality control and material purchasing control, and our internal control is better and stricter than that of our competitors.
Shuttering magnet box pull force test equipment
We have a large selection of models, large quantities and low prices, with a magnetic force of 450 kg to 3100 kg. We offer you a one-stop solution. From prefabricated magnets to template magnets, insert magnets, magnetic bevels and so on. We also accept customized production and personalized service in terms of magnetic force, product specification, appearance design, surface treatment of housing and so on.
Packaging and Shipping Methods
1. Basic Packaging:
- The shutter magnet is packed in a double corrugated cardboard box and secured with packing tape.
- Inside the carton, use high-quality foam board to insulate the magnets to prevent scratches and damage.
2. Sea Freight Packaging Options:
- 1.1 Pallet packing: a common packing method for sea transportation.
- 1.2 Wooden crates: more formal appearance, cost $35/carton more than pallets.
3. Notes for air transport:
- Magnetic items are considered sensitive during air transportation and may affect aircraft safety.
- Anti-magnetic treatment is required to ensure magnetic compliance with aviation standards.
- When packing, please place a thick iron sheet or iron box between the foam and the carton to ensure anti-magnetic treatment.
Shuttering Magnet Marine Packaging Options
Magnetic isolation packaging required for air transport
4. Air freight forwarding requirements:
- Magnetic testing is required when using FedEx, DHL, UPS, TNT and other air freight and express services.
- If magnetic shipments are mixed with non-magnetic shipments, magnetic testing of all shipments is required.
5. Magnetic inspection report:
- Magnetic inspection reports are unique and not reusable.
- With the exception of FedEx and DHL, the other logistics channels accept annual magnetic inspection reports.
6. Railway transportation:
- The packaging standards for rail transportation are the same as for air transportation.
The packaging and shipping of shutter magnets requires special attention to the safe handling of magnetic items and compliance with shipping standards. There are two packaging options for sea transportation: Pallets and wooden crates, while air transportation requires additional anti-magnetic treatment and magnetic inspection. Strict packaging and inspection standards should be followed for all shipments of magnetic items to ensure safety and compliance.
Frequently Asked Questions (FAQ)
Q1 What is the vertical pulling force of the QCM-900 shuttering magnet?
The QCM-900 shuttering magnet generates a vertical magnetic force of 900 kg (2000 lbs), making it ideal for the production of precast wall panels with a thickness of 60-90 mm.
Q2 How do you activate and release the shuttering magnet?
It is activated by pressing the top button down by hand, foot, or by tapping it lightly with a wooden or rubber mallet. To release the magnetic hold, simply pull the button upwards using a steel rod.
Q3 What materials are used inside this magnet box?
The magnet assembly consists of eight neodymium-iron-boron (NdFeB) magnets structured in groups. The outer layer is galvanized, fitted with a protective sleeve, and clamped between robust steel plates.
Q4 How durable are these precast magnets?
These magnets have undergone fatigue durability simulation tests with over 100,000 cycles to prevent any deformation or structural failure, ensuring repeated and long-term use.
Q5 What packaging options are available for sea and air transport?
For sea freight, you can choose between pallet packaging and wooden crates. For air transport, an anti-magnetic treatment is mandatory, which involves placing a thick iron sheet or iron box around the foam insulation to block magnetic fields.
Q6 Are customized options available?
Yes, custom production is available. Options can be customized based on required magnetic force (ranging from 450 kg to 3100 kg), product specifications, housing surface treatment, and appearance design.
