What is a Wire Rope Thread Lifting Loop?
A Wire Rope Thread Lifting Loop is a type of lifting accessory that is used to lift precast concrete elements. It is designed to be screwed onto the concrete element and is made from high-strength wire rope. The loop is an engineered component that was specifically developed for the precast concrete industry. It offers a simple, yet highly effective solution to lifting precast concrete elements.
| Product Image |
Size |
Dimensions (mm) |
SWL (kg) |
| f |
s |
L |
 |
Rd12 | 20 | 6 | 155 | 2500 |
| Rd14 | 22 | 7 | 155 | 4000 |
| Rd16 | 23 | 8 | 155 | 6000 |
| Rd18 | 28 | 9 | 190 | 8000 |
| Rd20 | 31 | 10 | 215 | 10000 |
| Rd24 | 38 | 12 | 255 | 12500 |
| Rd30 | 50 | 16 | 300 | 20000 |
| Rd36 | 60 | 18 | 340 | 31500 |
| Rd42 | 68 | 20 | 420 | 40000 |
| Rd52 | 86 | 26 | 550 | 62500 |
How Does it Work?
The Wire Rope Thread Lifting Loop works by being screwed onto a precast concrete element, such as a wall panel. It is then connected to a lifting device that can lift the element safely and securely. The Wire Rope Thread Lifting Loop has been designed with a high-strength wire rope to ensure that it can handle the weight and stresses involved with lifting precast concrete elements.

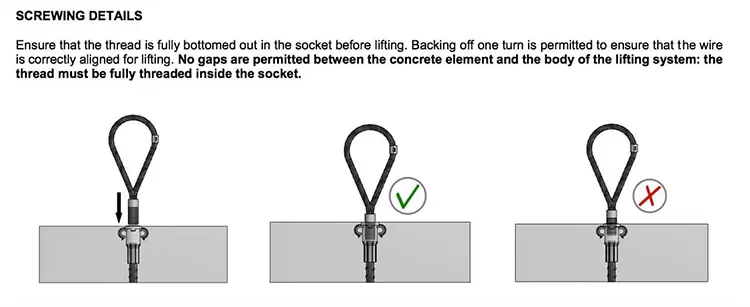

Wire-Rope-Lifting-Loop-Screwing-Details
What are the Advantages of Wire Rope Thread Lifting Loop?
01
Safety: Designed with reliability in mind, featuring high-strength wire rope to handle extreme stresses.
02
Durability: Built to last and withstand the wear and tear associated with heavy lifting operations.
03
Versatility: Highly compatible with a wide range of precast concrete elements and easy installation.
04
Easy to Use: A simple yet highly effective solution for streamline lifting workflows.

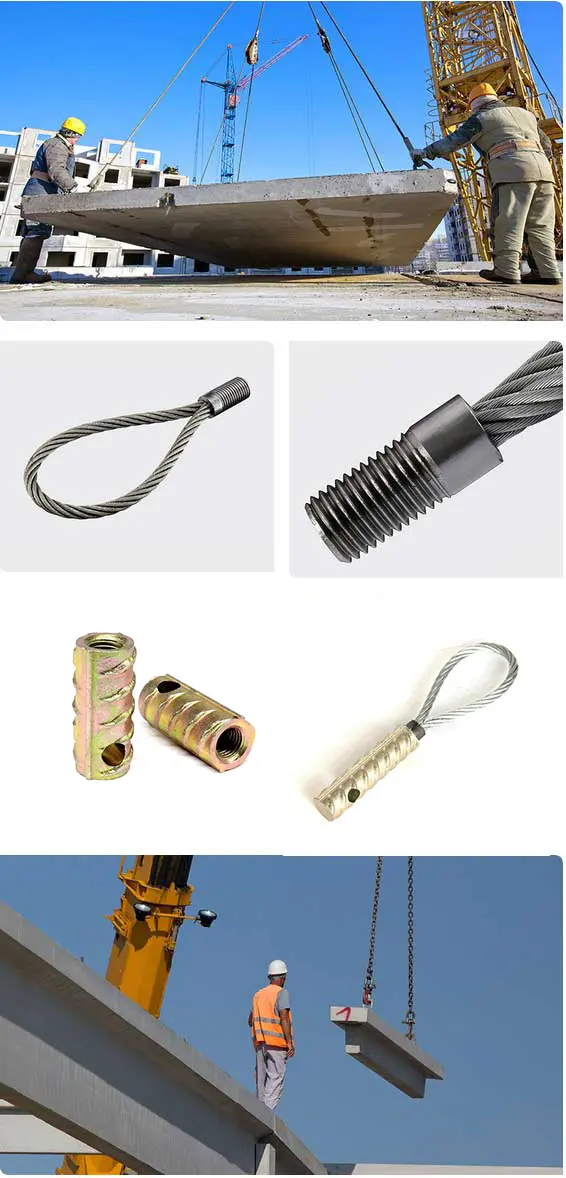

Wire Rope Thread Lifting Loop Application
How Does It Help The Production Of Precast Concrete Elements?
The Wire Rope Thread Lifting Loop plays an important role in the production of precast concrete elements. It allows for easy and safe lifting of the elements, which is essential for efficient production. It reduces the risk of injury to workers and damage to the elements which can lead to costly delays and repairs. Additionally, its ease of use makes it an ideal tool for the precast concrete industry.
Conclusion
The Wire Rope Thread Lifting Loop is a highly versatile and reliable tool that is used in the precast concrete industry. It is designed to be safe, durable, and easy to use. It is an essential tool in the production of precast concrete elements and plays an important role in ensuring efficient and safe lifting and handling.
Frequently Asked Questions (FAQ)
What is the maximum weight capacity (SWL) of these loops?
The Safe Working Load (SWL) varies by size, ranging from 2,500 kg for Rd12 models up to 62,500 kg for the heavy-duty Rd52 size.
What materials are the lifting loops made from?
They are manufactured using high-strength wire rope and engineered threaded components specifically designed for heavy industrial concrete lifting.
How are the lifting loops installed?
The loops are designed to be easily screwed directly into matching threaded inserts cast within the precast concrete elements.
Can these loops be used for all types of precast elements?
Yes, they are highly versatile and commonly used for wall panels, beams, slabs, and other precast concrete components.
Why is wire rope used instead of solid steel bars?
Wire rope provides better flexibility and absorbs stresses during the lifting process more effectively, enhancing overall safety and ease of handling.
Does using these loops improve production efficiency?
Absolutely. By providing a secure and quick-connect lifting point, they reduce the risk of accidents and damage, avoiding costly project delays.
