Precast shuttering magnets, also known as precast concrete magnets, are specialized tools used in the construction industry to secure and position formwork during the pouring of precast concrete elements. They have significantly transformed traditional construction methods by offering a more efficient, safer, and user-friendly alternative to mechanical fastening systems like screws or bolts.

• 01
  Strong holding force: These products have high performance Neodymium (NdFeB) magnets built into the housing in stainless steel or carbon steel. Magnets can be produced with a pulling force of 450 kg to 3000 kg, depending on the needs, making them suitable for different precast concrete projects.

Model	L(mm)	L1(mm)	W(mm)	h(mm)	M	Breakaway(lbs)	Breakaway(kg)
450	170	135	60	43	M12*30	1000	450
600	170	142	60	43	M12*30	1300	600
900	280	244	60	43	M12*30	2000	900
1600	290	240	120	60	M16*30	3500	1600
1800	320	270	120	60	M16*30	4000	1800
2100	320	270	120	60	M16*30	4600	2100
2400	320	270	120	60	M16*30	5300	2400

• 02
  Easy to operate: The switch mechanism of the prefabricated formwork magnet design makes it quick to activate and release the magnetic force. Workers can place the magnet in the position to be fixed, and gently tap the button with a wooden hammer or rubber hammer to activate the magnet. The magnetic force can be easily released with a special crowbar.
• 03

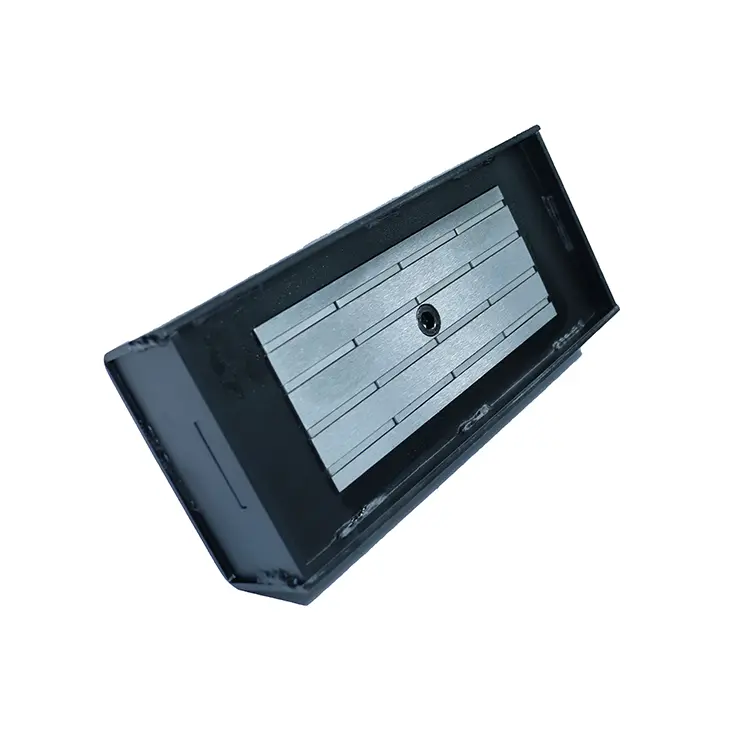

  Compact design: The NdFeB magnet is encapsulated in a steel casing. This compact appearance design makes it flexible. The largest model weighs only 7800g, and workers can easily move it.
• 04
  Durability and maintenance: The steel casing protects the magnet from moisture or corrosion, and the small welds avoid the risk of the magnet being intruded by concrete or debris.

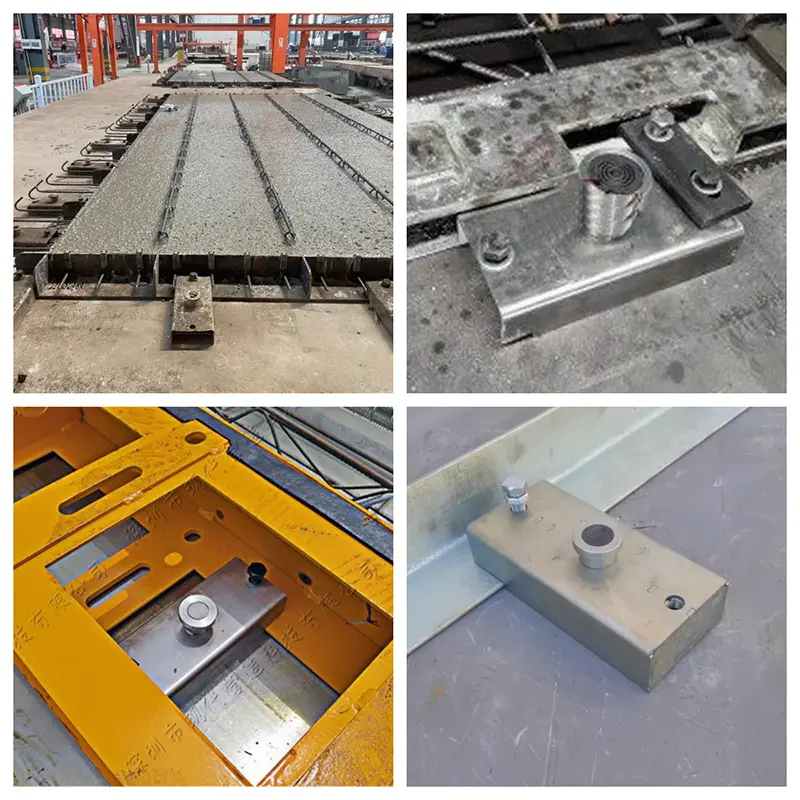

Precast shuttering magnets are widely used in:
