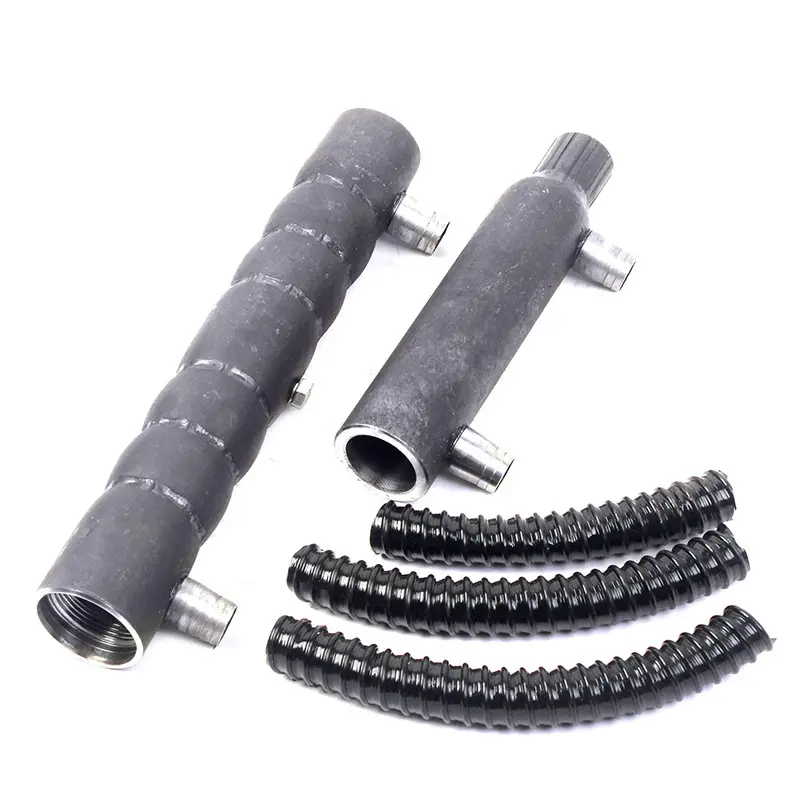

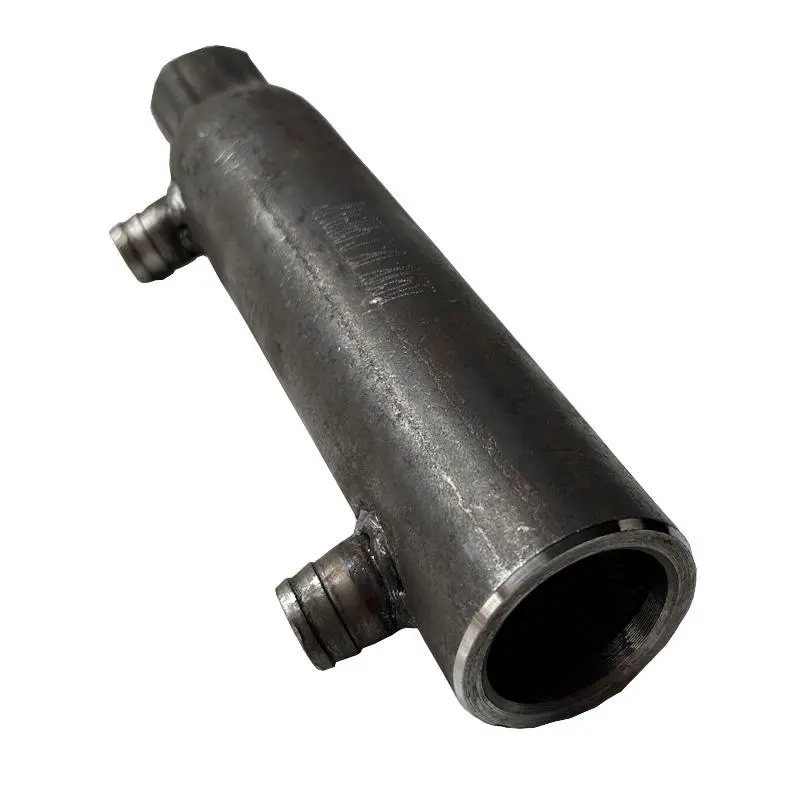

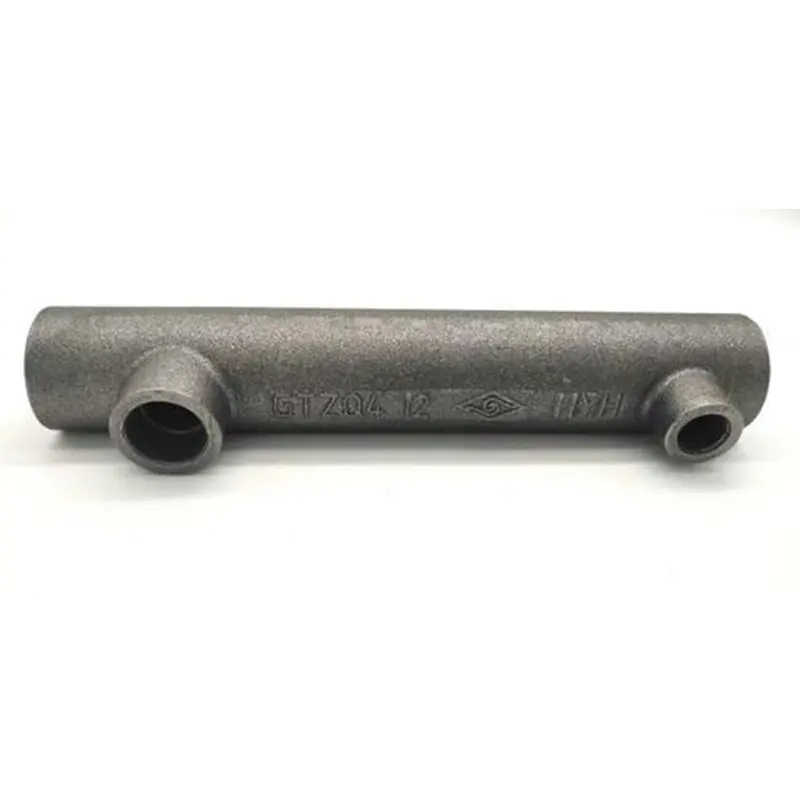

Grouting sleeve is a key component used to connect reinforcing bars in precast concrete structures, which is achieved by placing a steel sleeve between two bars and injecting grouting material. This type of connection provides high strength and stability and is widely used in the construction of precast concrete structures.
Role: Grouting sleeve is mainly used for connecting reinforcement bars in prefabricated concrete components to improve the strength and stability of the connection through grouting and to ensure the reliability of the structure.
Product Features & Benefits
●
High Performance: Provides a high strength connection that meets the requirements of Class I connection performance.
●
Quality Control: Sleeve processing and high-strength mortar are factory operated for consistent quality without tying up the construction cycle.
●
Precise Installation: Unique positioning and sealing design enables fast and accurate on-site sleeve and rebar installation as well as assembly of prefabricated components.
●
Versatility: Wide range of applications, suitable for reinforcing bar connections with diameters of 16-50mm.
Operation & Application
Product Parameters: Common product parameters include the diameter and length of the sleeve, the diameter and strength grade of the rebar, and the properties of the grouting material.
Usage Guidelines: During construction, the steel bar is first inserted into the sleeve, followed by the injection of grouting material. High attention must be paid to the cleanliness of the sleeve, the precise proportion of grouting material, and the overall process to ensure connection quality.
* Important: Prevent grouting ports from being blocked and avoid internal voids or cracks, as these defects reduce connection strength and affect structural safety.
Visual Presentation

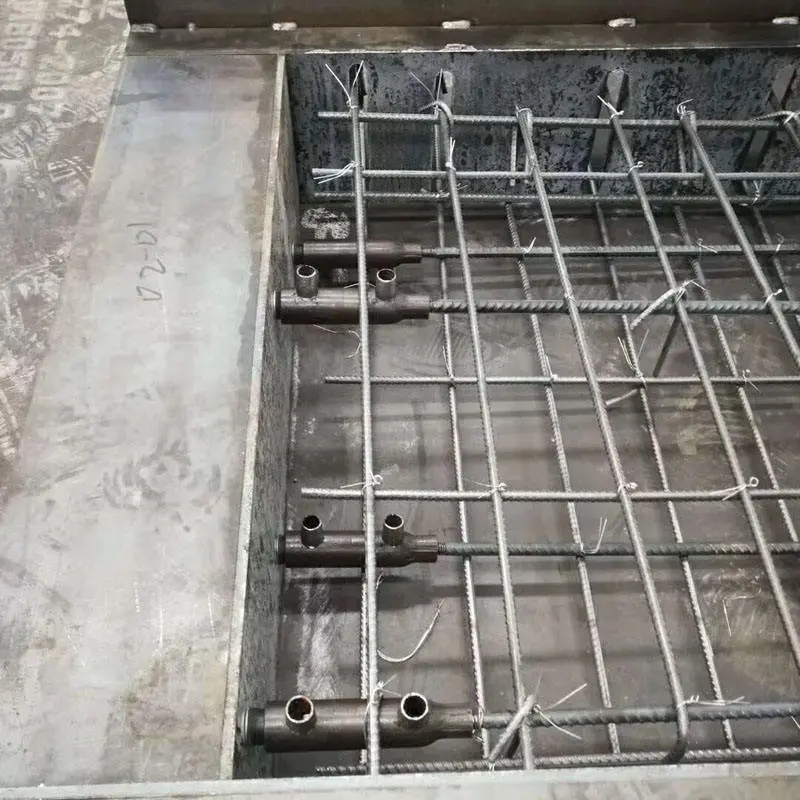

Application of Grouting sleeve

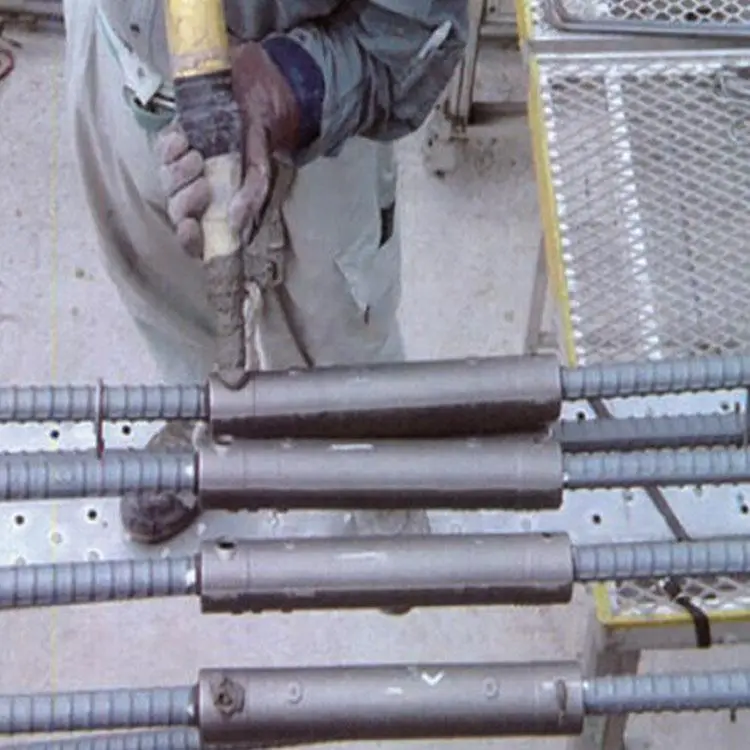

Injection of grouting material

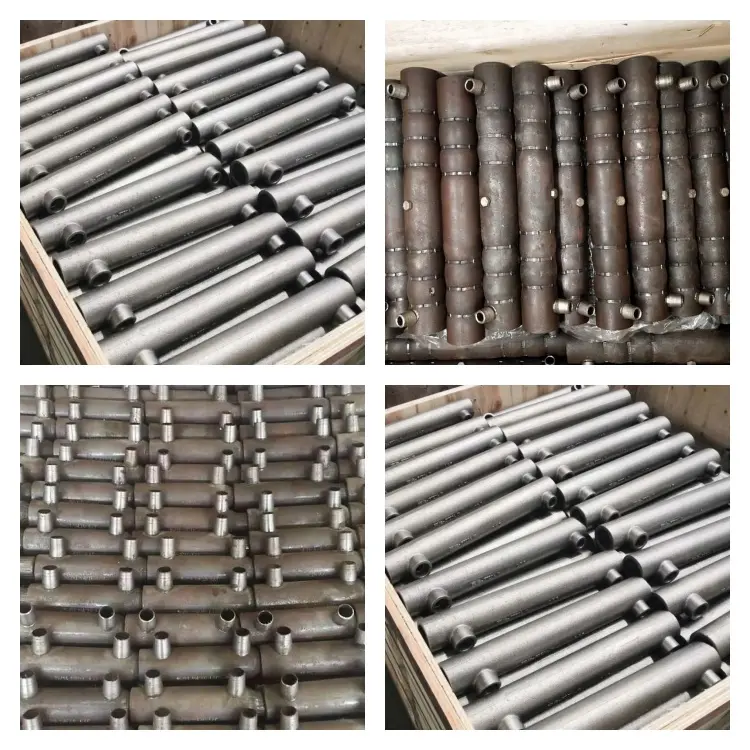

Packaging and Shipping
Reliability & Conclusion
Reliability analysis indicates that connection integrity depends heavily on the bond strength between the reinforcement and the grouting material. Research on anchorage length has helped determine minimum suggested values for different reinforcement types to optimize safety.
In summary, the Grouting sleeve is an efficient, stable, and widely used reinforcing bar connection technique. Correct operation and strict quality control are essential to ensuring the safety of precast concrete structures.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of a grouting sleeve?
A1: It is used to connect reinforcing bars in precast concrete structures by creating a high-strength bond through a steel sleeve and specialized grouting material.
Q2: What range of rebar diameters can these sleeves accommodate?
A2: Grouting sleeves are versatile and suitable for connecting reinforcing bars with diameters ranging from 16mm to 50mm.
Q3: How does factory production improve the quality of the connection?
A3: Sleeve processing and mortar preparation are factory-operated, ensuring consistent quality and performance without disrupting the on-site construction timeline.
Q4: What are the critical factors to watch for during the grouting process?
A4: It is vital to ensure sleeve cleanliness, correct material proportions, and prevent blocked ports or internal voids that could compromise structural safety.
Q5: What determines the reliability of the sleeve connection?
A5: Reliability depends on the bond strength between the reinforcement and the grout, as well as maintaining the appropriate anchorage length for the specific rebar type.
Q6: Does this connection meet industry safety standards?
A6: Yes, grouting sleeve connections are designed to meet Class I connection performance requirements, providing high strength and stability for structural integrity.
